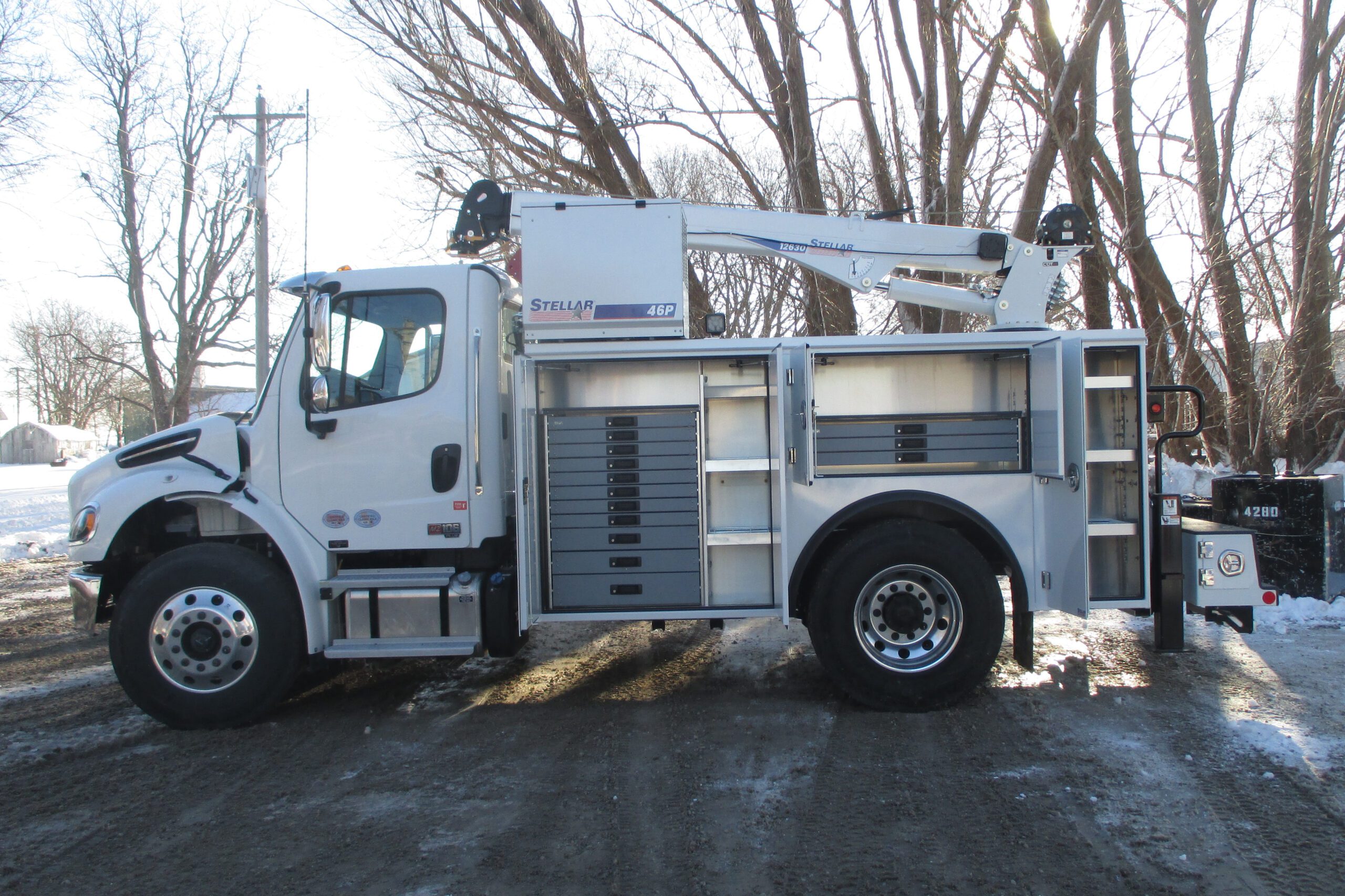

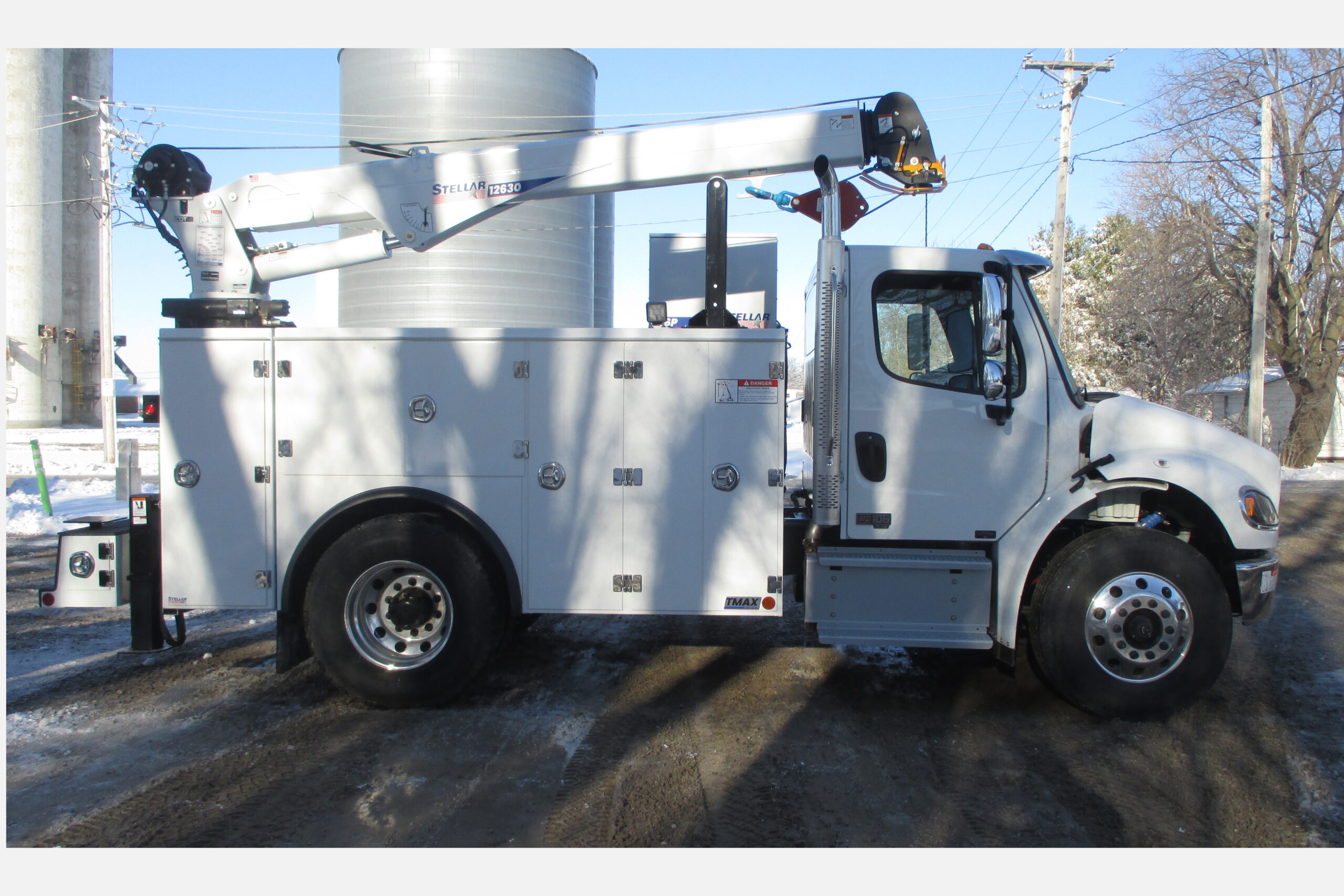

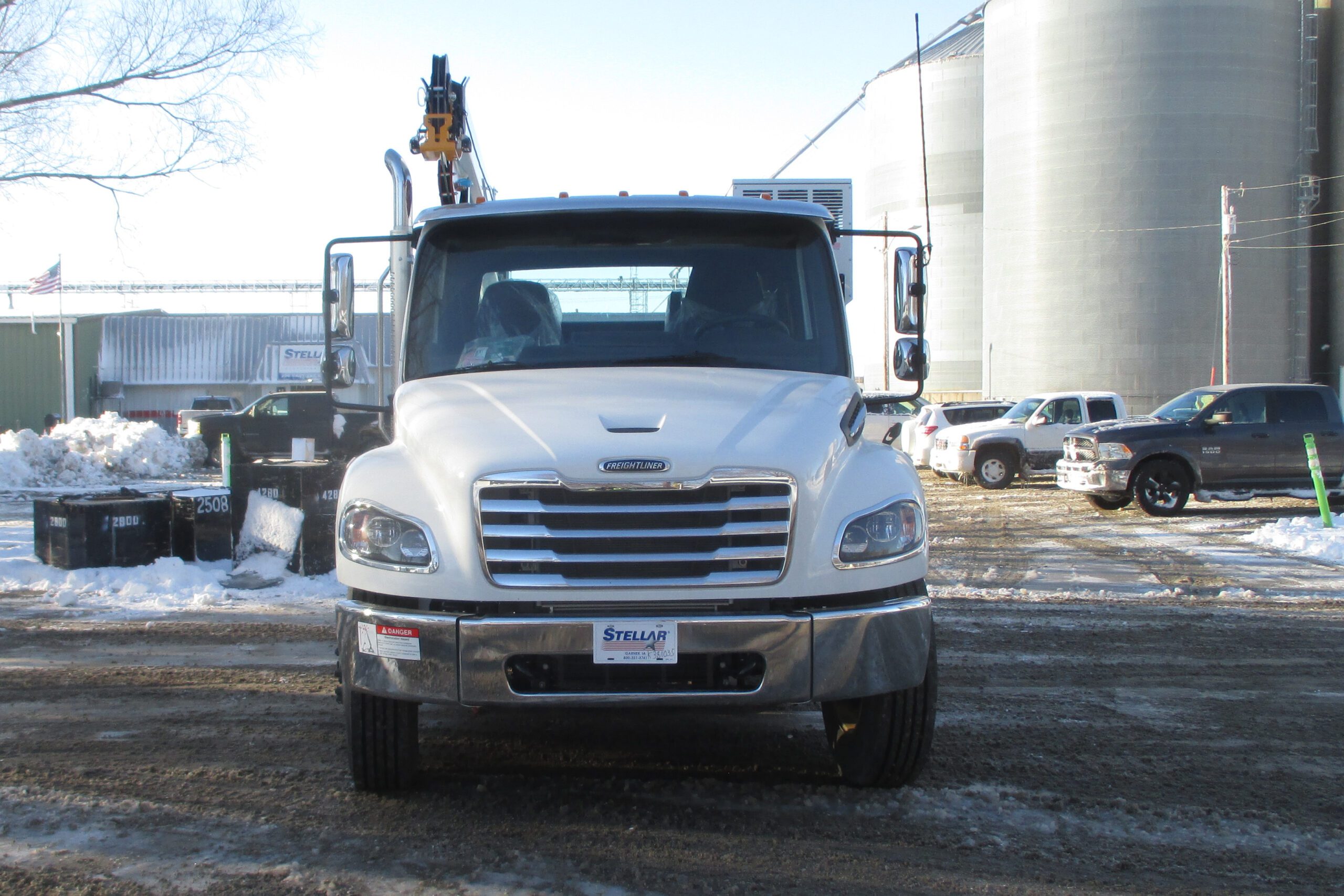

2025 Freightliner M2 106 w/TMAX 2-11 Aluminum/12630/46P (WR71)

• 6.7 Cummins 300 HP diesel engine
• 4×2 Allison 2500 RDS Automatic Transmission
• 144″ CA
• 26,000 GVW
• Air brakes
• Air Suspension
• Horizontal exhaust pipe
• 50-gallon fuel tank
• 22.5 tires

TMAX 2-11 Mechanic Body Aluminum Features

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All Compartments Raised To 60″
• Flush Front Bulkhead
• Torsion Box Understructure With Isolated Crane Compartment
• Master-Lock System
• Exterior LED DOT Light Package
• 22″D X 60″H Side Packs
• 133″ Long, 21″ Work Bench Bumper With Thru Compartment
• (6) Recessed Crgo Tie-Downs
• (2) Rear Mounted Grab Handles
• Dual-Seal Automotive Type Compartment Weather Seal
• Rubber Fenderettes
• Overlapped Doors On SS1V/CS1V
• Overlapped Doors On Horizontal Compartments
• 12″ Fold Down Aluminum Tailgate (Painted Black)
• 2 & 3-Point Stainless Steel Compression Latches
• Stainless Steel “Billet Style” Hinges
• Spring Loaded Door Stops
• Pintle Hitch Mount
• Prime Painted
• Undercoated
• Additional Product Information

Compartment Storage

• Streetside 1st Vertical In Front Of The Divider:
  • Heavy Duty Aluminum Drawer Set, 43″H x 34″W x 18″D, 8-3″,2-5″, 1-7″ Drawers (18259AX) w/Light Bar
• Streetside 1st Vertical To The Rear Of The Divider:
  • Shelf With (3) Dividers 17.63″W x 19.00″D (72773X)
• Streetside Horizontal
  • Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ Drawers (23378AX) w/Light Bar
• Streetside Rear
  • Shelf With (3) Dividers 24.38″W x 19.00″D (72869X)
• Curbside 1st Vertical
  • Divider Kit With Shelves (73116X) And Oxy-Acet 2-Bottle Holder (14013X)
• Curbside 2nd Vertical
  • Shelf With (3) Dividers 21″W x 19.00″D (72865X)
• Curbside Horizontal
  • Shelf With (3) Dividers 52.44″W x 19.00″D (72894X)
• Curbside Rear
  • 1/2″ x 50′ Hose Reel With Roller Guide (16337X) – Exits Rear Of Body

Body Mounted Options

• Rock Guard Kit – Adhesive Black
• Grab Handle – Mounts To Rear Side Pack And Bumper – Easily Accessible From Ground
• TMAX Aluminum Tailgate – 12″ Tall, Painted Black
• Adjustable Boom Support
• Roller Rest, Painted Black

Bumper Mounted Options

• Vise Mounting Plate – Receiver Work Bench Mount
• Step, Slide Out For TMAX Mechanics Work Bench Bumper
• Stabilizer Assembly – Hydraulic Out/Hydraulic Down, Painted Black

Light Options

• LED Flood Light Kit – 4 Lights – (1 Near Boom Support, 1 SS Behind Compressor, 1 On Each Rear Taillight Box)
• LED Compartment Light Kit

Safety Options

• Chassis Mounted Back Up Alarm – 107 Db
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Chassis Options

• Leaf Springs, Installed On Crane Side Of Chassis

Electrical Options

• Program Speed Control For Cummins Engine
• Truck Upfitter Switches Control Panel

PTO/Pump Options

• Hot Shift PTO
• Hydraulic Pump, Tandem Section For Crane And Compressor
• Includes: 58467X PTO 272GCHVP-B3RK, 34301 Pump Hyd DE2R41SHBB12521N113, 37674X Pump Inst Kit Mech Dan Foss

Hydraulic Options

• Hydraulic Reservoir, 35-Gallon, Bulkhead Mounted, Painted Black

Paint & Finish

• Paint 11’+ Body Stellar White Paint, Axalta Paint Code 350407EX
• Spray On Bed Liner For Load Bed Walls And Floor – Black
• Spray On Bed Liner For Work Bench Bumper – Black

Note: Sales Drawing 943238

• Crane Rating : 77,800 ft-lb
• Max Lifting Capacity: 12,000 lbs @ 6′ 5″
• Maximum Horizontal Reach: 30′ from CL of crane
• Maximum Vertical Lift: 31′ 9″ from crane base
• Boom Elevation: -10° to +80°
• CDTpro™ Control System w/Range Finder
• Additional Product Information

46P Air Compressor

• 46 CFM @ 175 PSI
• 4 Cylinder 2 Stage Compressor
• Direct Drive Coupling
• Oil Cooler, Fan, And Hydraulic Motor
• Includes Steel Base, Enclosure, And A Flip Up Lid
• Dimensions: 34.5”L x 26”W x 29.5”H.
