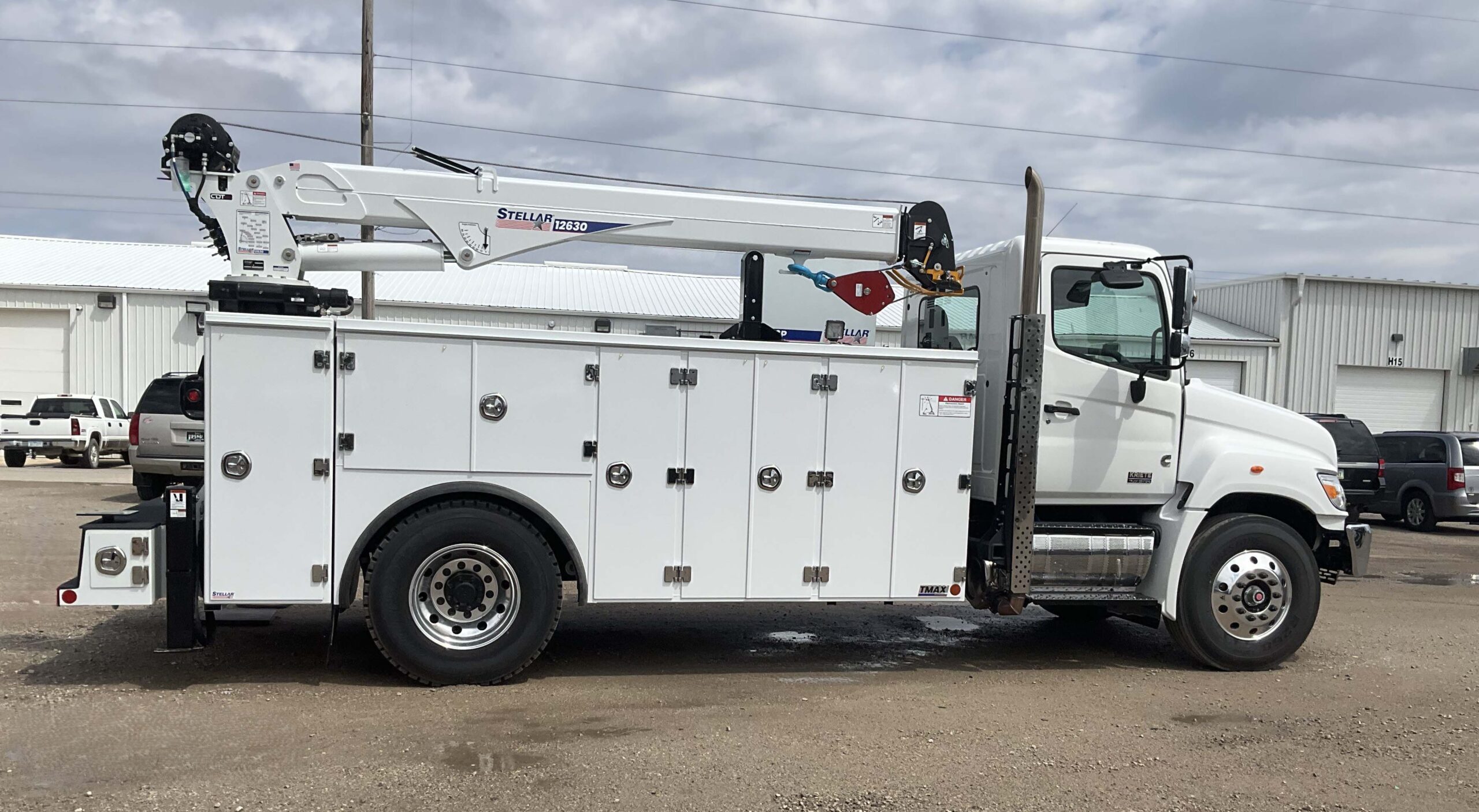

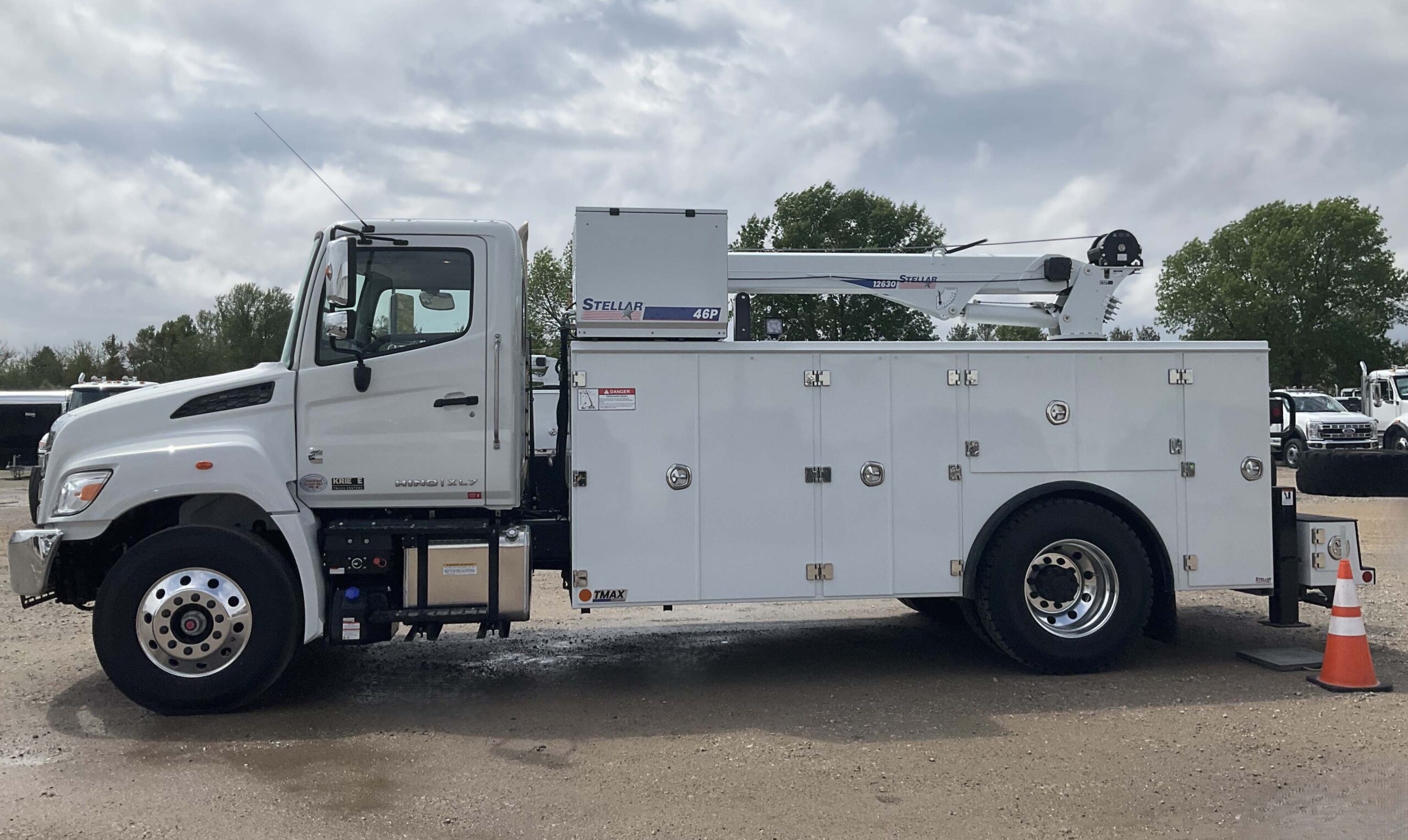

2025 Hino L7 w/TMAX 2-14 Aluminum/12630/46P (WR96)

2025 HINO L7

• 33,000 GVW
• 4X2
• 128″CA
• L7 CUMMINS DIESEL
• ALLISON 3000

Body Features

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 60″
• Flush front bulkhead
• Torsion box understructure with isolated crane compartment to
  accommodate cranes up to Stellar 12630
• Master-Lock system standard
• Exterior LED DOT light package
• 22″D X 60″H side packs 168″ long
• 21″ work bench bumper with thru compartment
• six (6) recessed cargo tie-downs, two (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V, CS1V
• Overlapped doors on horizontal compartments
• 12″ fold down aluminum tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Pintle hitch mount
• Prime painted
• Undercoated
• Additional Product Information

Compartment Storage

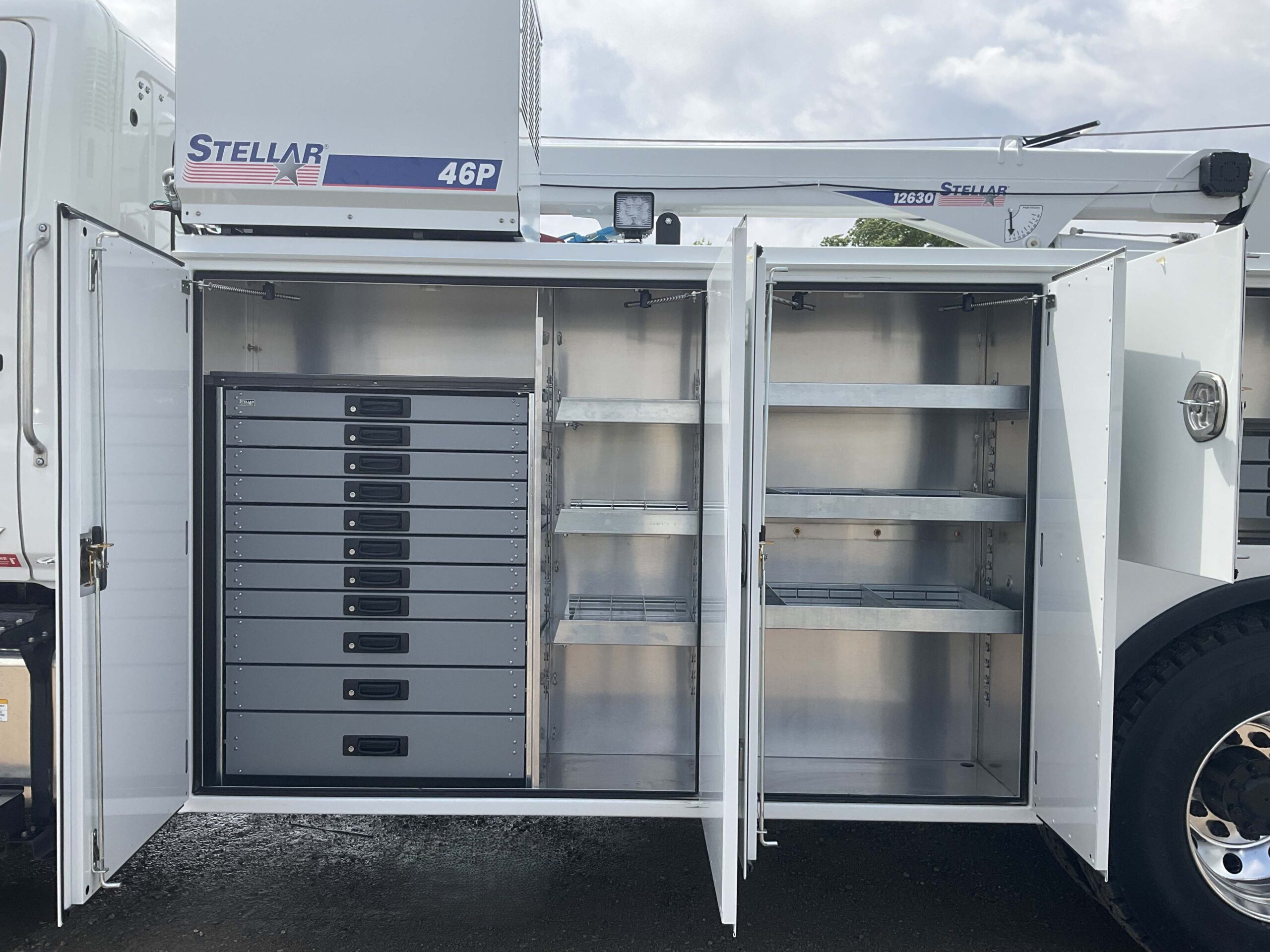

• Streetside 1st Vertical in front of the divider:
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set
  • 45.5″H x 34″W x 18″D, 8-3″, 2-5″, 1-7″ (incl. 2.5″ riser) (133575AX)
  • Lightbar (98090X)
• Streetside 1st Vertical to the rear of the divider:
  • Shelf with (3) dividers 17.63″W x 19.00″D (72773X)
• Streetside 2nd Vertical:
  • Shelf with (3) dividers 135.25-36.56″W x 19.00″D (72879X)

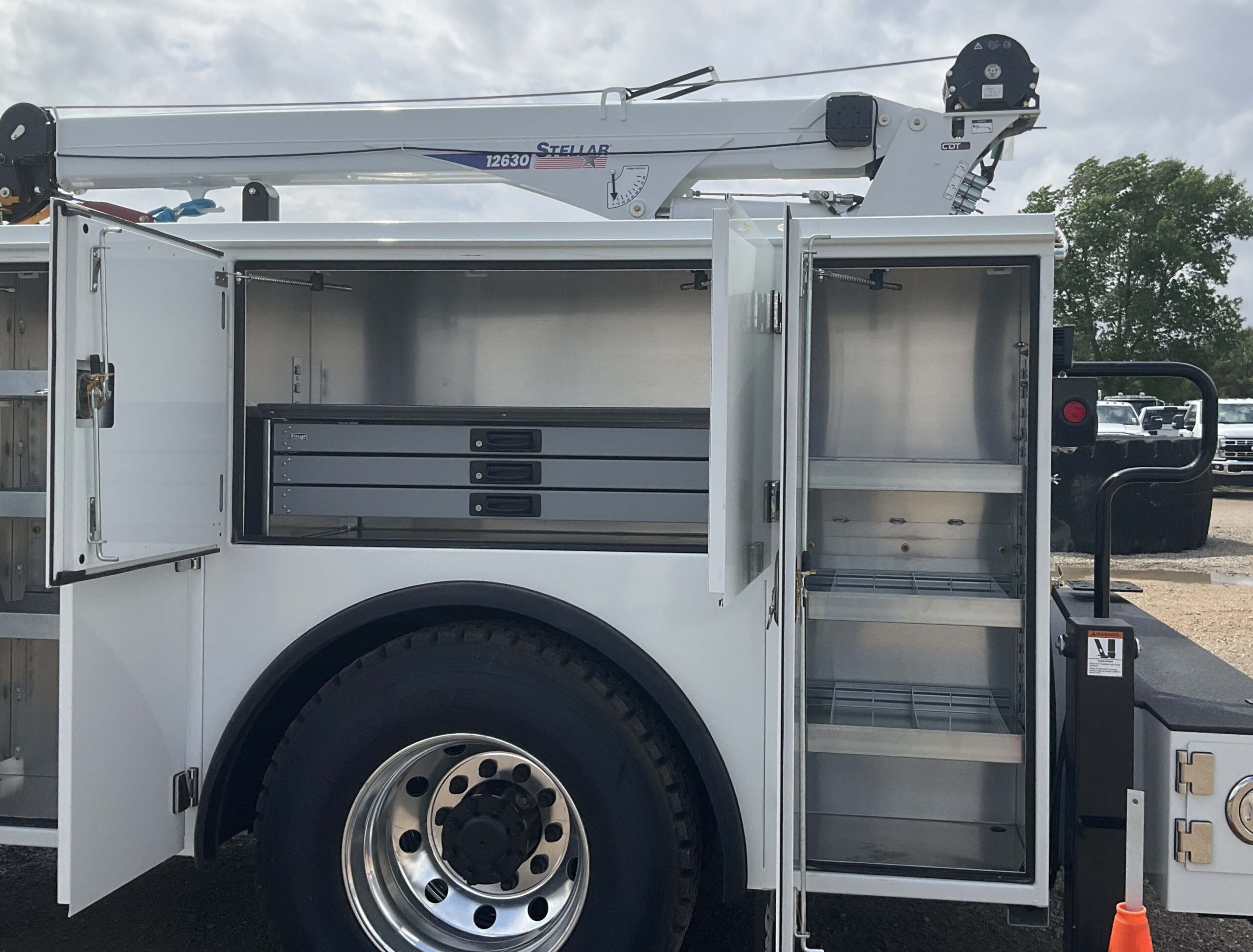

• Streetside Horizontal
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set
  • 13.5″H x 48″W x 18″D, 3-3″ (incl. 2.5″ riser) (133472AX)
  • LightBar (98104X)
• Streetside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

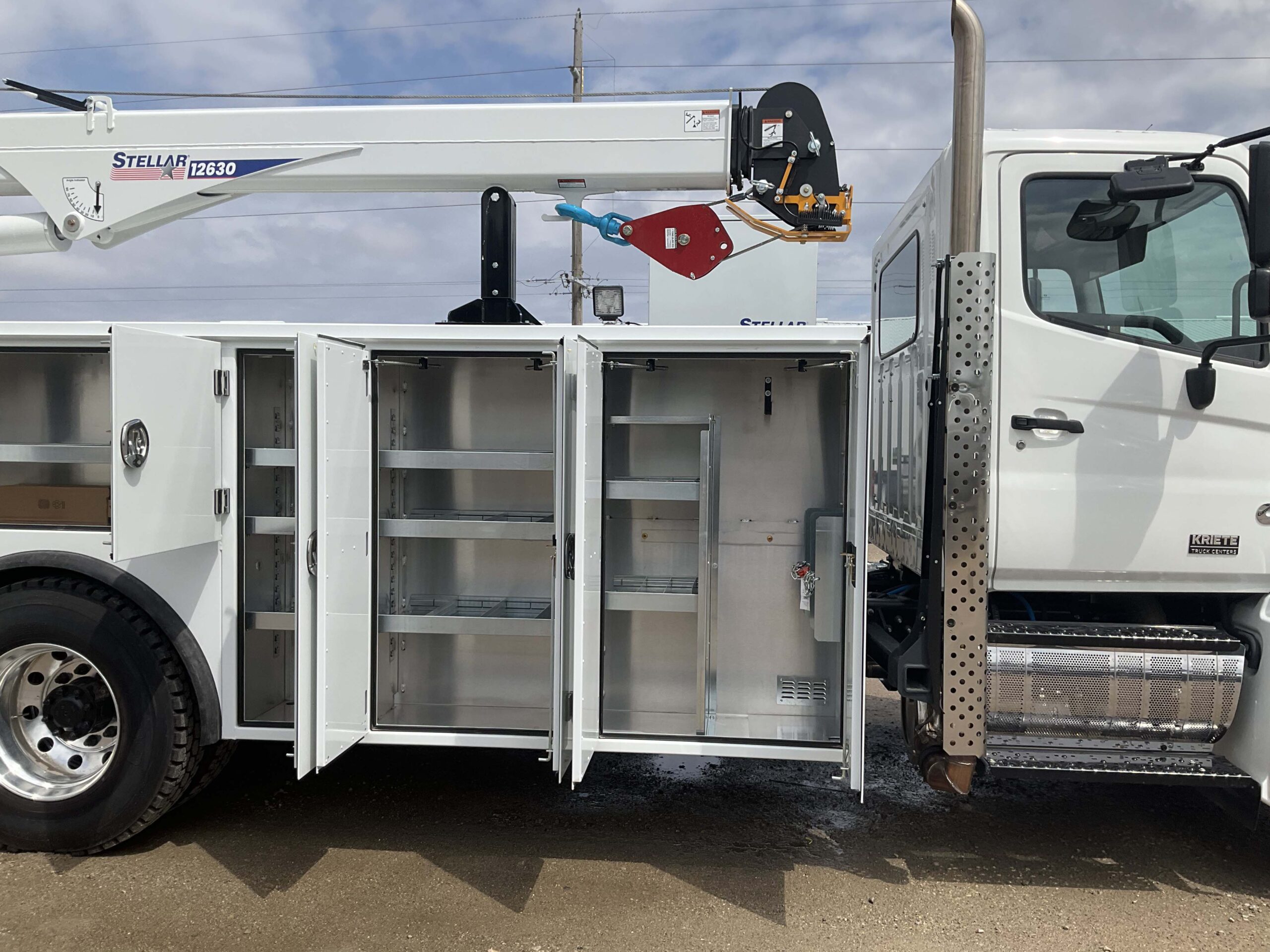

• Curbside 1st Vertical
  • Divider kit with shelves (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
• Curbside 2nd Vertical
  • Shelf with (3) dividers 32.25″W x 19.00″D (72875X)
• Curbside 3rd Vertical
  • Shelf with (3) dividers 19.00″W x 19.00″D (72775X)
• Curbside Horizontal
  • Shelf with (3) dividers 52.44″W x 19.00″D (72894X)

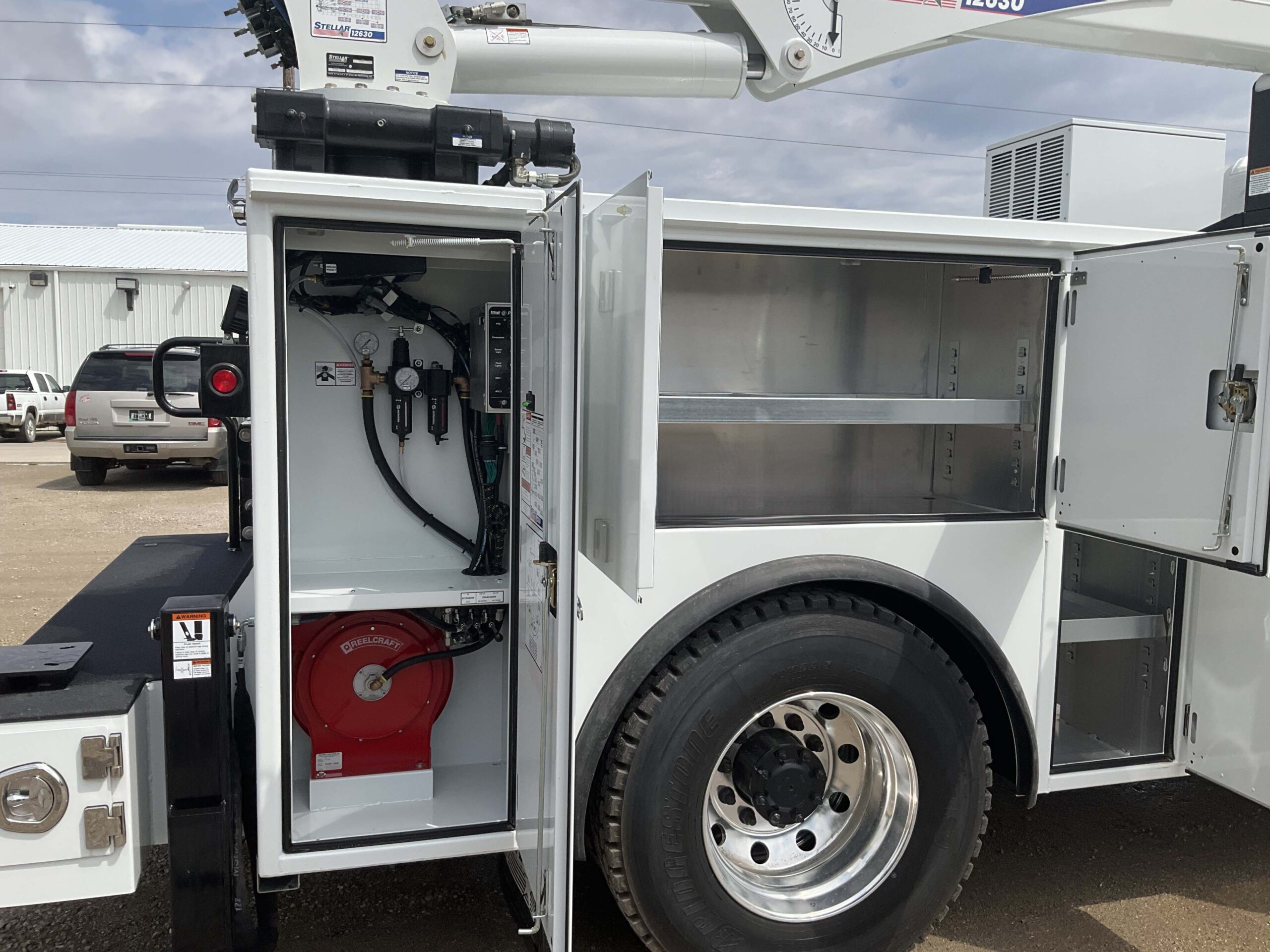

• Curbside Rear
  • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body

Body Mounted Options

• Rock guard kit – Adhesive black
• Black Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – hydraulic out/hydraulic down, painted black

Light Options

• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit

Safety Options

• Back Up Alarm – Flush Mount
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Electrical Options

• Program speed control for Cummins engine
• E-Link 2.0 Basic – cab mounted/rear mounted manual switches (includes body harness and PDM)

PTO/Pump Options

• Hot shift PTO
• Hydraulic pump, tandem section for crane and compressor
• Includes: 137524X PTO 281GSFJP-B5RK / 34301 PUMP HYD DE2R41SHBB12521N113 / 37674X

Paint & Finish

• Paint 13’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• Crane Rating : 77,800 ft-lb
• Max Lifting Capacity: 12,000 lbs @ 6′ 5″
• Maximum Horizontal Reach: 30′ from CL of crane
• Maximum Vertical Lift: 31′ 9″ from crane base
• Boom Elevation: -10° to +80°
• CDTpro™ Control System w/Range Finder
• Additional Product Information

• Output Capacity: 46 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder, 2-stage
• Electrical control: 12 VDC @ 20 amps
• 22 gallon air tank with fittings, hose kit, mounting bracket
• FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
• Additional Product Information
