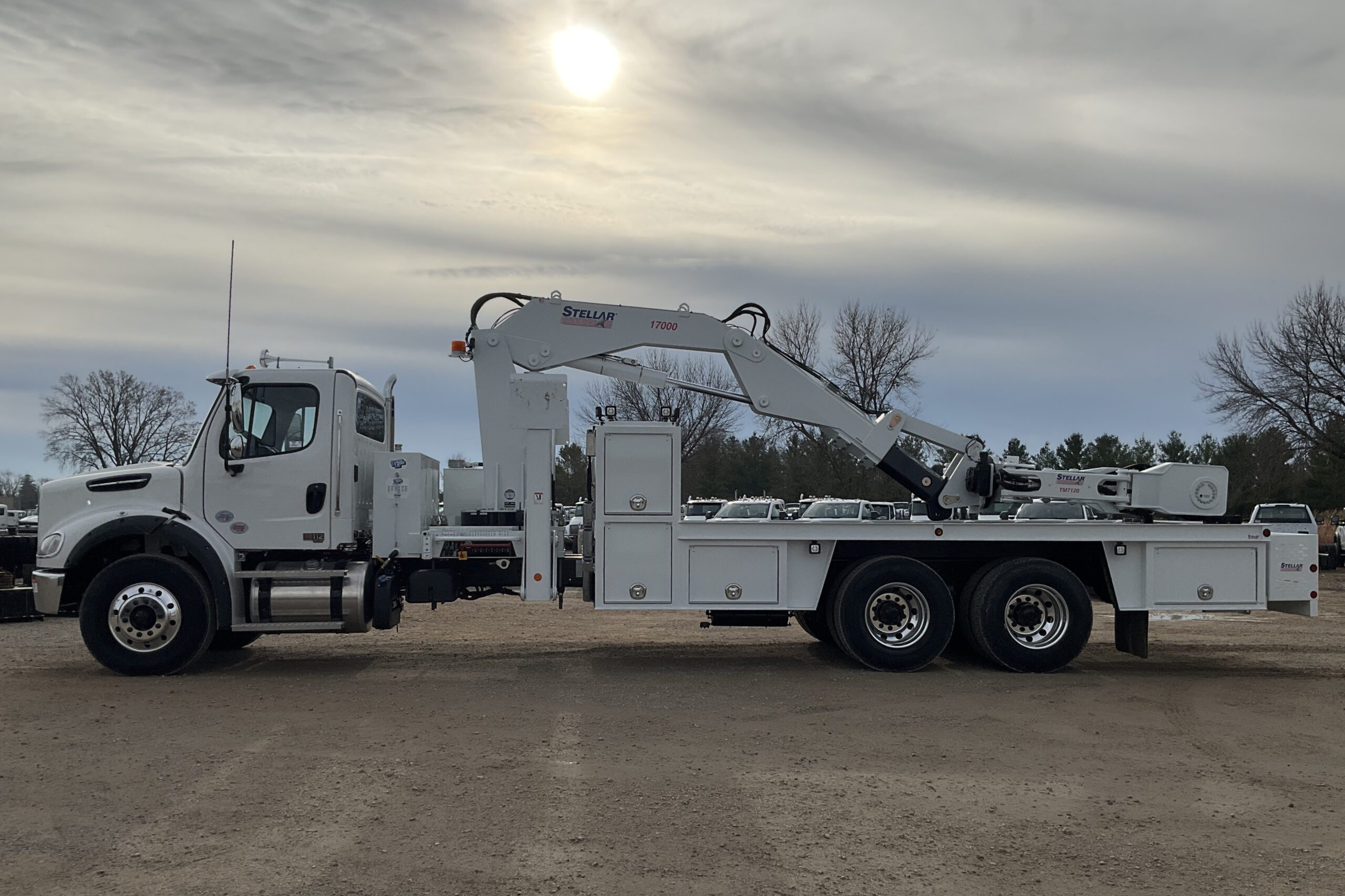

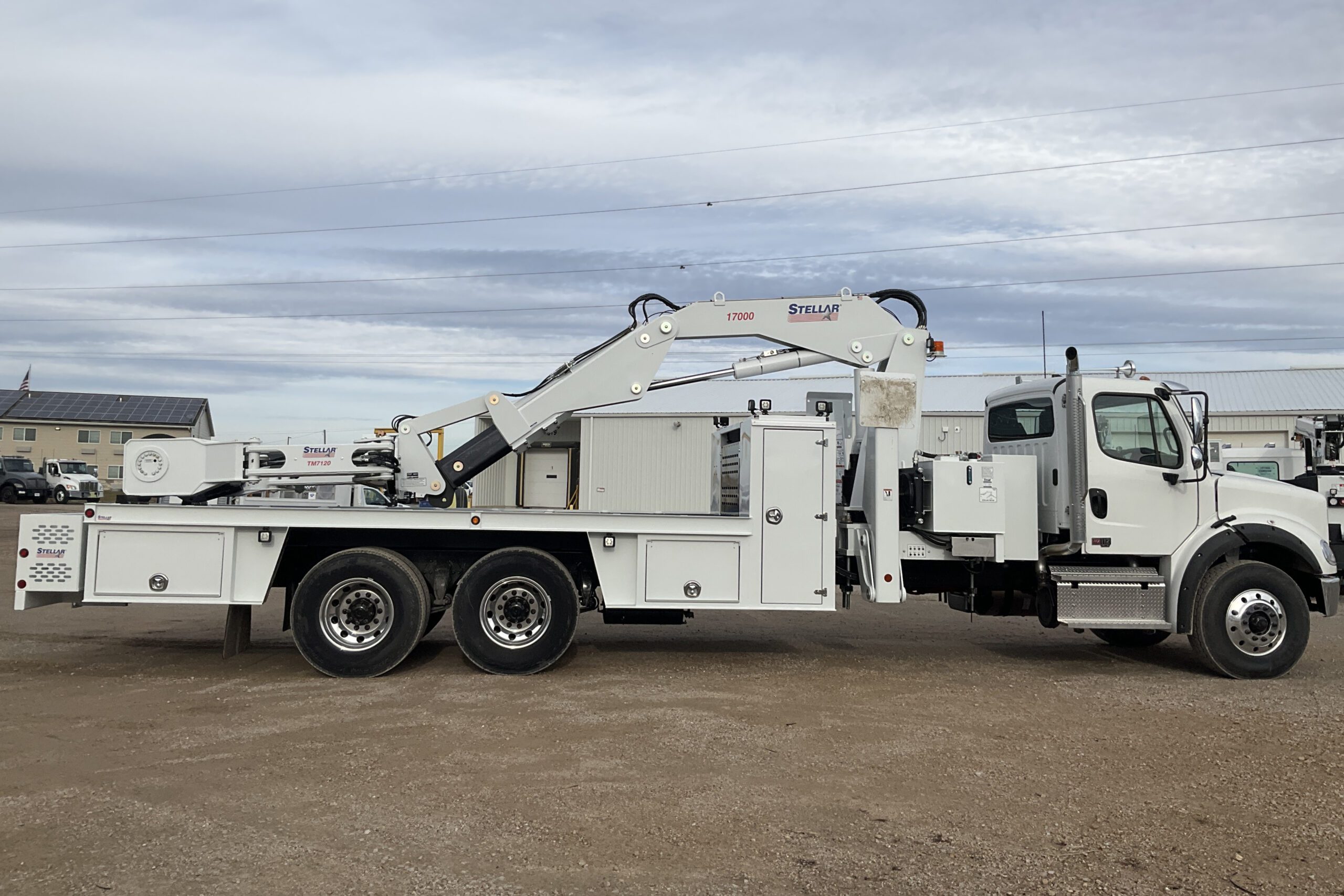

2026 Freightliner M2 w/TM7120/17000/110P (WR113)

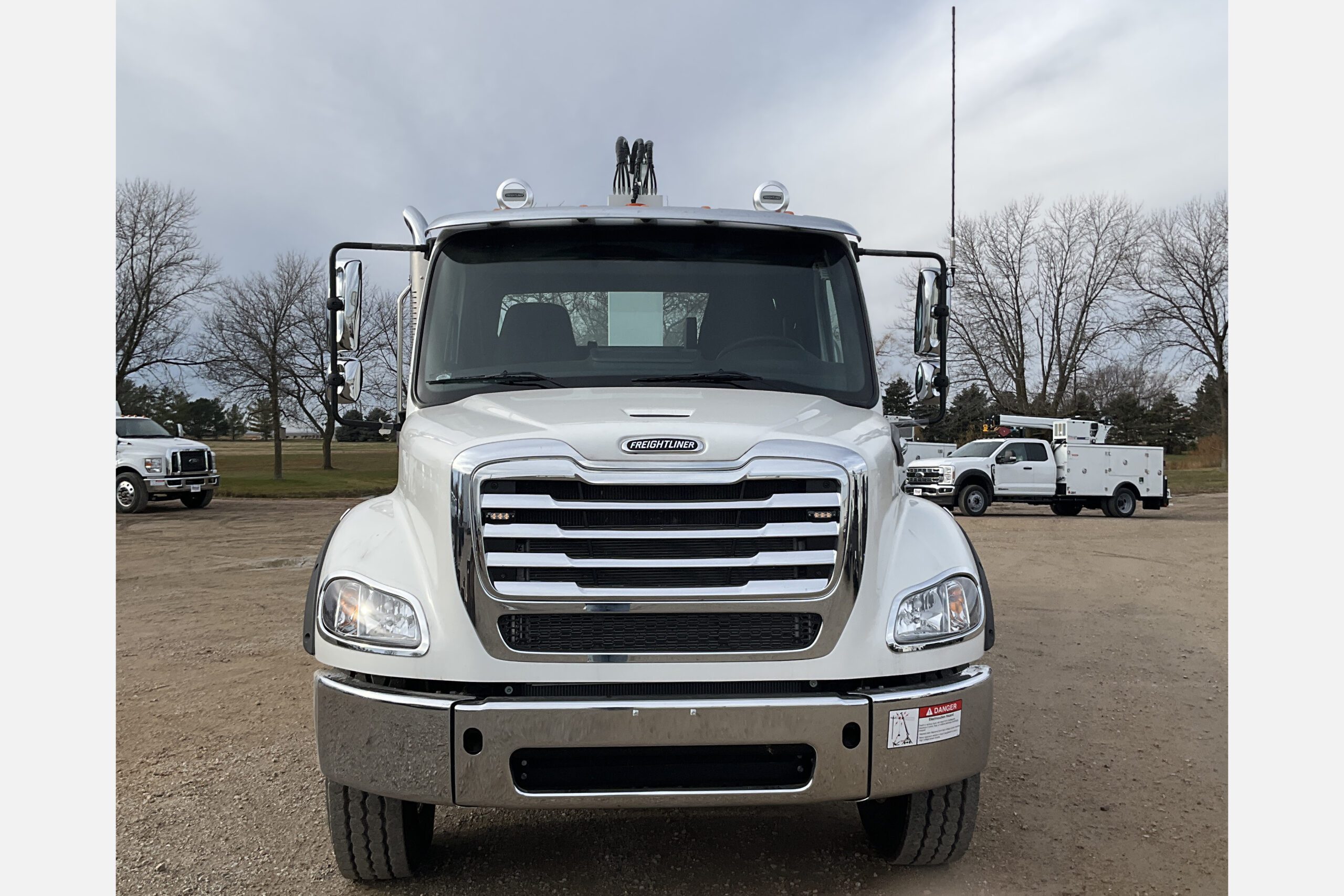

• 2026 Freightliner M2 112
• 218″ CT/283″ WB
• 58,000# GVW
• Cummins L-9 350 HP diesel
• Allison 3000
• 18,000# front axle
• 40,000# rear axle
• Exhaust with vertical pipe
• Air brakes
• 100 gallon LH fuel tank
• 11R22.5 tires
• Air cond.
• Air cushion driver’s seat

Body

• 180-220 all steel OTR flatbed body
• Front mount 17000 crane 20’L
• 1/4″steel floor

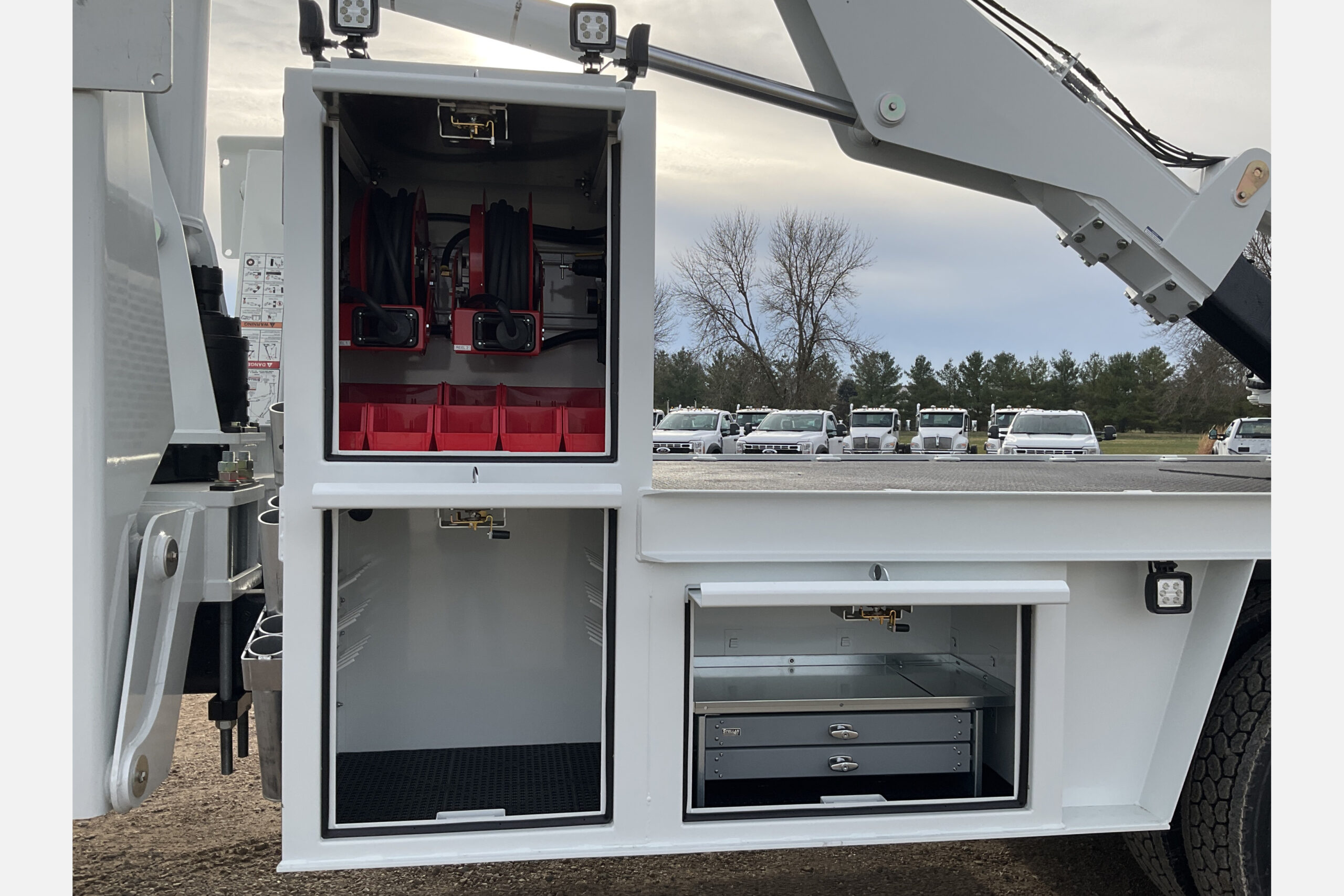

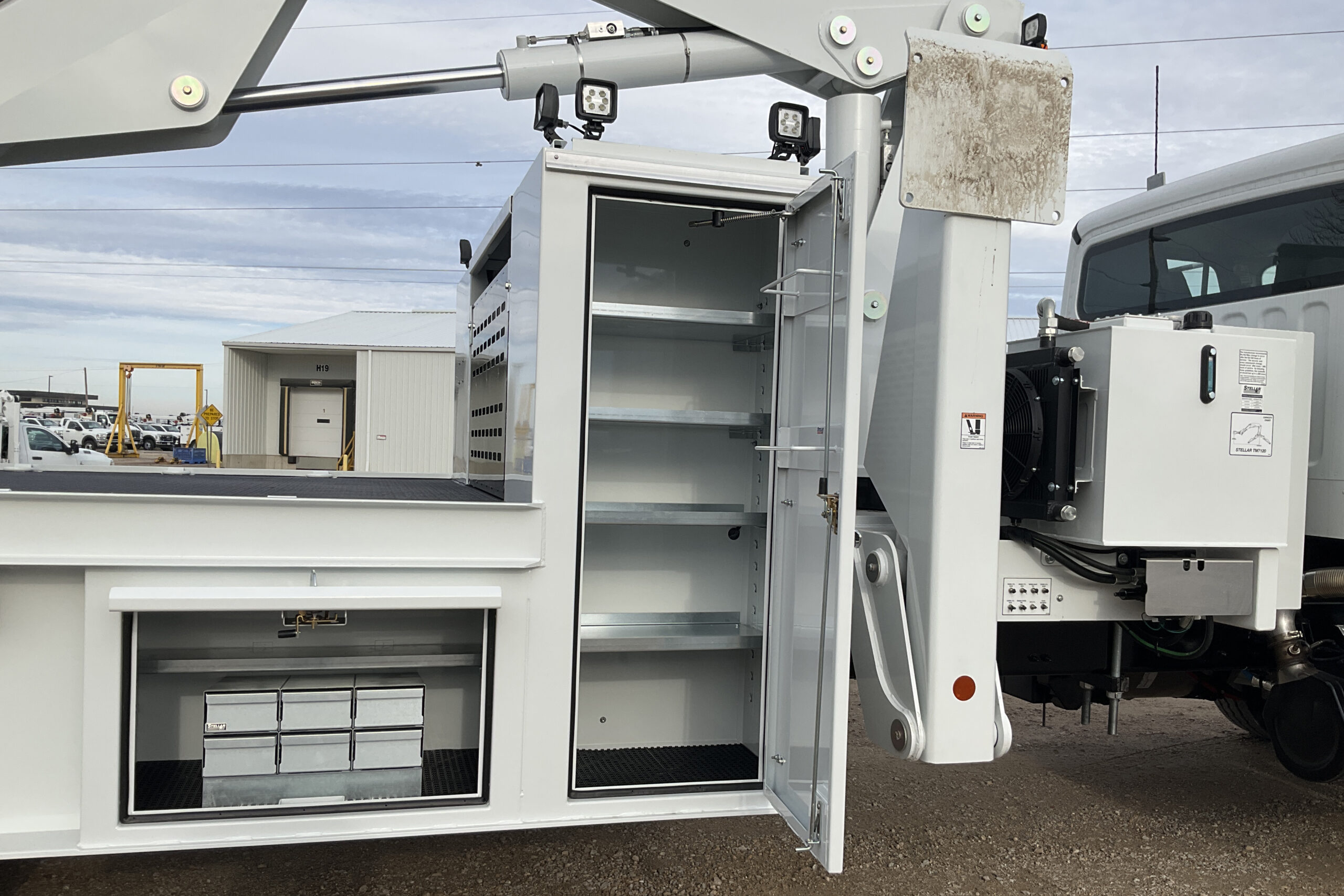

• LF vertical compartment 64″H x 30″W x 27″D
• RF vertical compartment 64″H x 30″W x 22″D

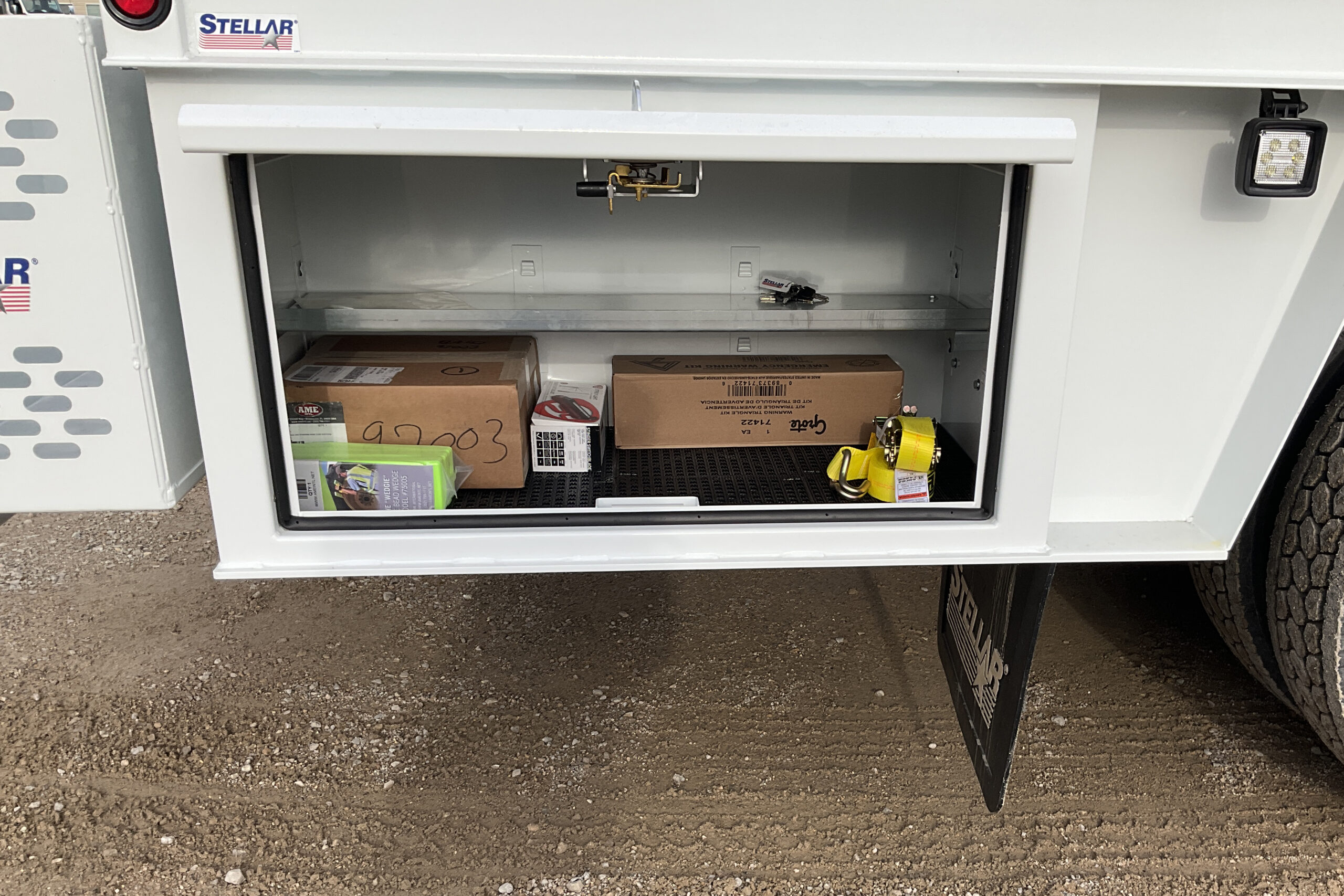

• 38″ LCF & RCF underbody tool compartment
• 45″ LR & RR tool compartment
• Stop, turn, tail light kit
• Body mounting kit OTR

Equipment / Options

• Swivel load hook, when Tire Manipulator is not used
• Hydraulic installation kit for front mount
• Stellar 110P hydraulic-driven air-cooled compressor
• 110 CFM @ 175 PSI
• 4-cylinder
• 2-stage industrial compressor (Champion R-70)
• Base, motor, fittings, filter (TOP MOUNT)
• Crane service kit

Air Options

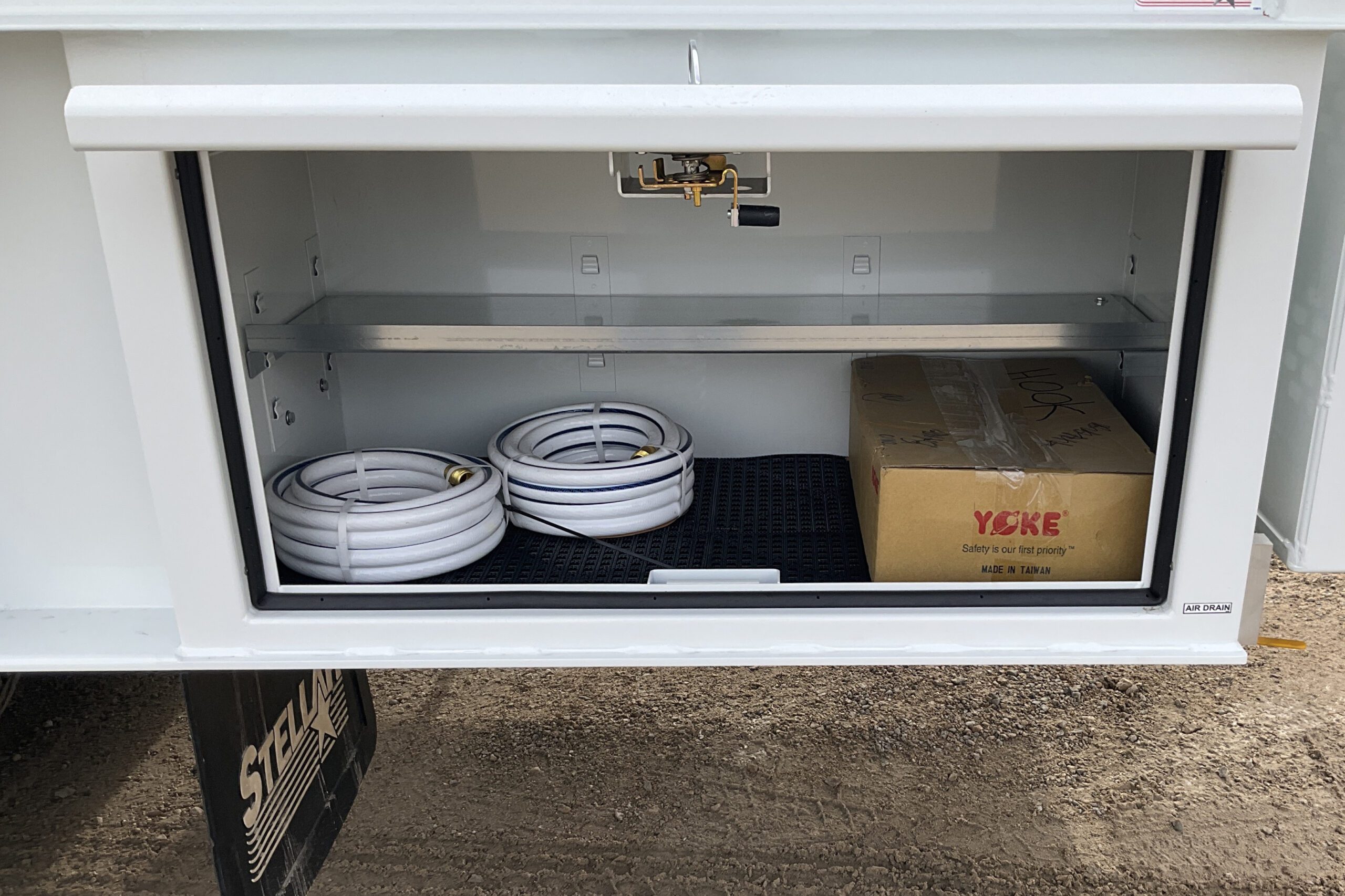

• 1/2” Reel Craft dual post hose reel with 50’ Artic grade hose (For channel mounting in compartment)
• 22 gallon air tank
• ASME approved, w/fittings, hose kit, mounting brackets, painted black for Stellar 110P compressor
• Air Option 5
• 20′ OTR inflation/deflation hose kit w / quick release coupler for emergency air evacuation
• Includes muffler, small and large bore core ejectors, and 1/4 turn ball valve and rotary air gauge for checking tire pressure

Tool Package

• Tire bead wedge – six pack

Compartment Options

• 5″ wide plastic tray inserts
• 11″ wide plastic tray inserts
• 15-pin socket rack
• 5 Drawer Steel hanging parts bin 6″H x 33.75″W x 13.25″D
• Drawer set, 8″H x 22″W x 18″D NR hanging, 2-3″
• Shelf Kit – 17 x 30″ – 138 Series Body

Body Mounted Options

• Dri deck mat kit for compartment floors
• Top/Back Gate Assembly for 28000 Rear Mount
• One pair Stellar mud flaps with mounting bolts (Included in factory installation)
• Aluminum tubing tire iron holder
• 157-gallon tire life tank assembly to be mounted behind cab for 17000 crane

Bumper Options

• Heavy duty rear bumper
• Block storage box 94″W x 24″H x 19″D
• Vertical taillights mounted to outside of block box door
• Tail Light Cover Kit – 186 style OTR body with “C” channel rub rail
• LED flood light with wide beam
• Amber strobe light package includes (2) LED lights
• Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV light for leak detection, and 180 degrees of rotation
• Includes charger
• Strobe light kit – low profile LED amber lights (2) mounted in chassis grill
• Two tire carrier mast mounted LED floodlights

Safety Options

• Chassis mounted back up alarm – 107 Db
• ICC safety kit
• Rechargeable 2.5# fire extinguisher
• Reflector kit

Chassis Options

• Relocate battery

PTO/Pump Options

• Generic hot shift PTO
• Hydraulic pump, single section. Installed.
  Includes:
• 137524X PTO 281GSFJP-B5RK
• 137521X PTO 281GMFJP-B5RK
• 46474 PUMP HYD 330A142XXAB17.25
• 109659 PUMP HYD VOAC F1-61 W/FTG 1.25 PISTON

Electrical Options

• Program speed control for Cummins engine
• Electrical Control Kit
• Includes harness and switch panel with 12V power port

Paint & Finish

• Paint 20′ OTR body Stellar White
• Axalta Paint code 350407EX (includes undercoating)
• Single Stage
• Non-Metallic
• Spray on bed liner for 180-20 and 180-220 (black)

Tire Manipulator

• TM7120 Tire Manipulator
• 7200 lb lifting capacity
• 300° of body rotation
• +79° to -43° articulation
• Tear drop pads
• Clamping span of 26″ to 122.50″
• Continuous pad rotation
• Painted white

Carrier

• Stellar Model 17000 center mount mast carrier
• 16’11” of reach from center line of chassis
• 170,000 ft lb capacity
• 17,000# @ 10′
• 10,050# @16’11”

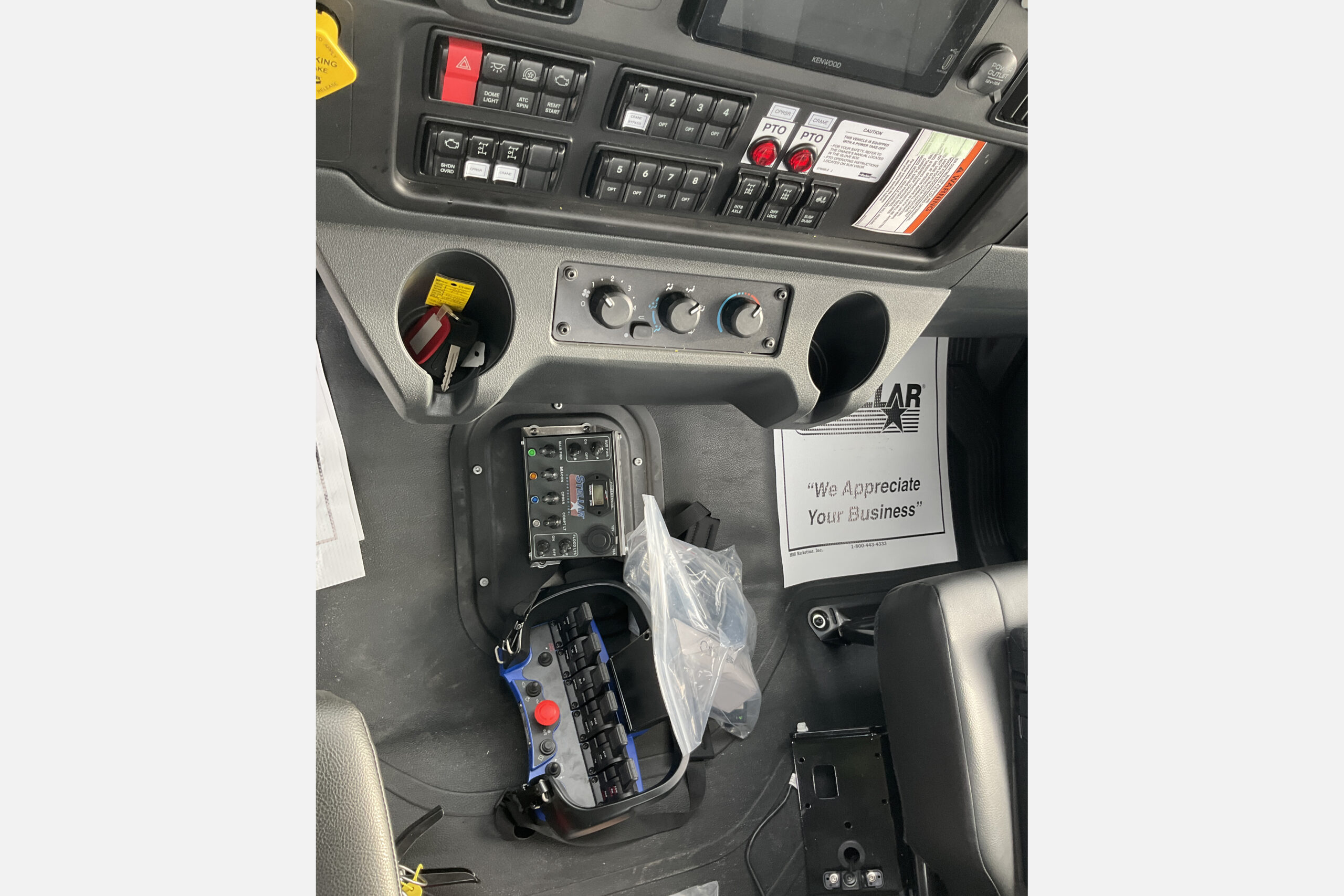

• Proportional radio remote control
• Counter balance check valves
• Fold down style stabilizers
• Painted white

Additional Product Information

• Output Capacity: 110 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder, 2-stage
