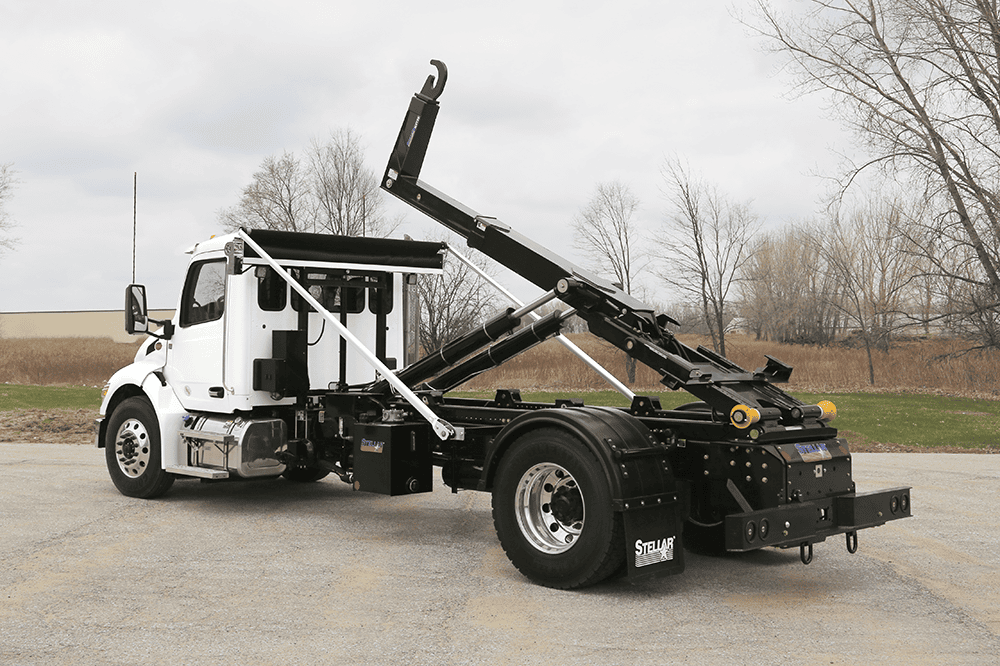

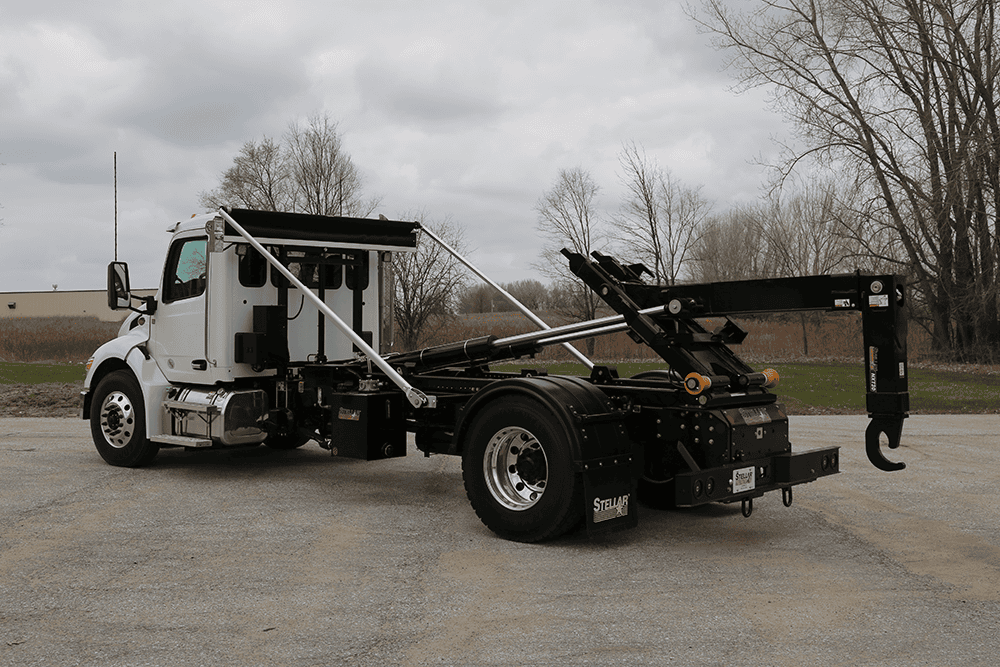

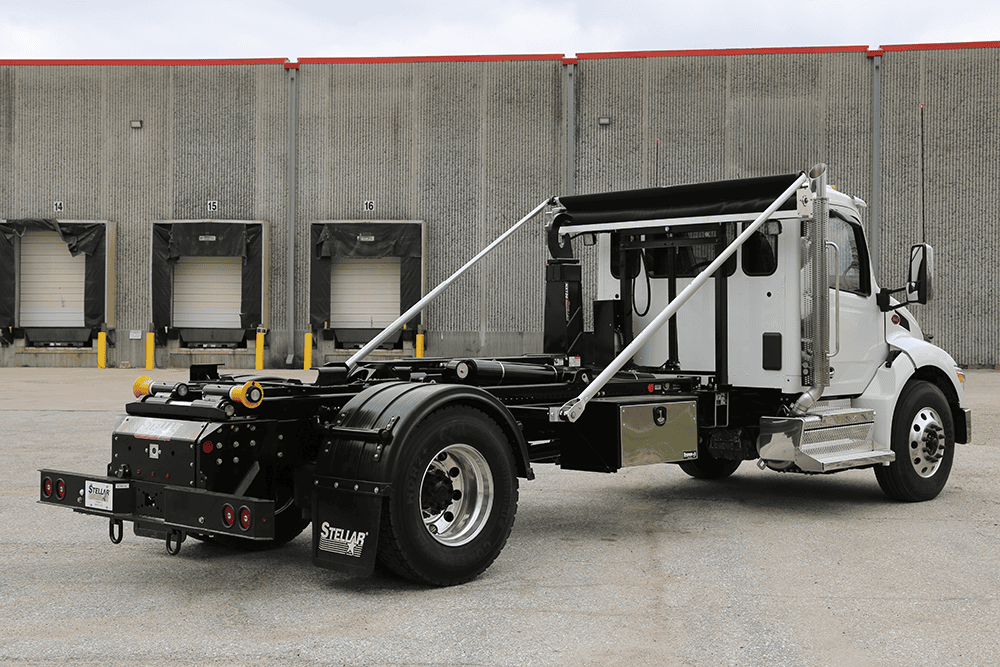

2026 Kenworth T380 w/NXT30L Hooklift (WR204)

• 166″ CA/234″ WB
• 33,000# GVW
• Paccar PX-9 330 HP Diesel
• Allison 3000
• 12,000# Front Axle
• 21,000# Rear Axle
• Horizontal Exhaust With Vertical Pipe
• Air Brakes
• 50-Gallon LH Fuel Tank
• 11R22.5 Tires
• Air Cushion Driver’s Seat
• Air Suspension

Hooklift Features:

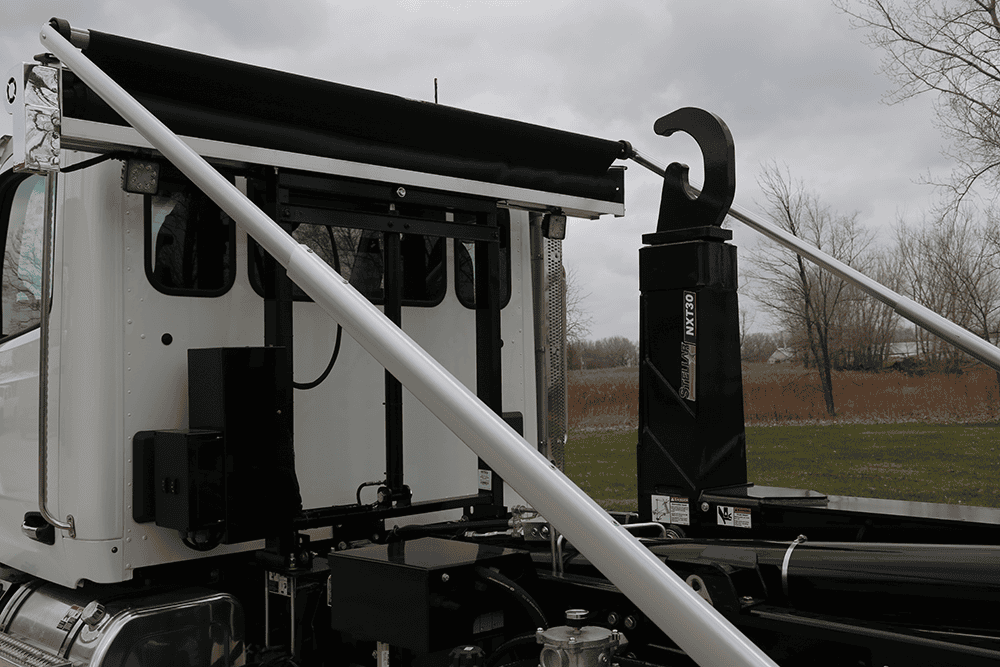

• 30,000 lb capacity hooklift hoist with Z-rail base
• Telescopic jib
• Hydraulic adjustable 54”/62″ hook height
• Dump designed to accept bolt-on latches
• Single rear rollers and 52° dump angle
• Includes:(4) Roller style body saddles and 25-gallon hydraulic reservoir
• Designed for 14’ to 18’ container body lengths
• Shortest container body length for dumping is 14’
• Longest flatbed body (w/fold down bumper) is 20′ (Dump angle is restricted due to body length)
• Maximum 24 GPM hydraulic flow with hydraulic operating pressure of 4,500 PSI

• Inside body locks – Bolt On
• Outside pass thru body lock – Bolt On
• Standard zinc pins
• Standard black paint
• Additional Product Information

Hydraulic Options

• 3-function electric joystick control including 2-function air tower, valve bank mounting, and hoist up indicator
• Hot shift PTO
• Hydraulic direct mount bent axial piston pump

Accessories

• Bumper reinforced to accept 30k pintle hitch (pintle hitch not included)
• Bolt-on service and emergency gladhands
• 7 pin round trailer plug
• Poly fenders including fender brackets and mounting hardware for Z-rail mounting
• Stellar mud flaps
• Steel underbody toolbox with flip down door (18″H x 36″L x 18″D)
• US Tarping system – 15100-AL4-WL w/Tarp
