2026 KenworthT480 Details

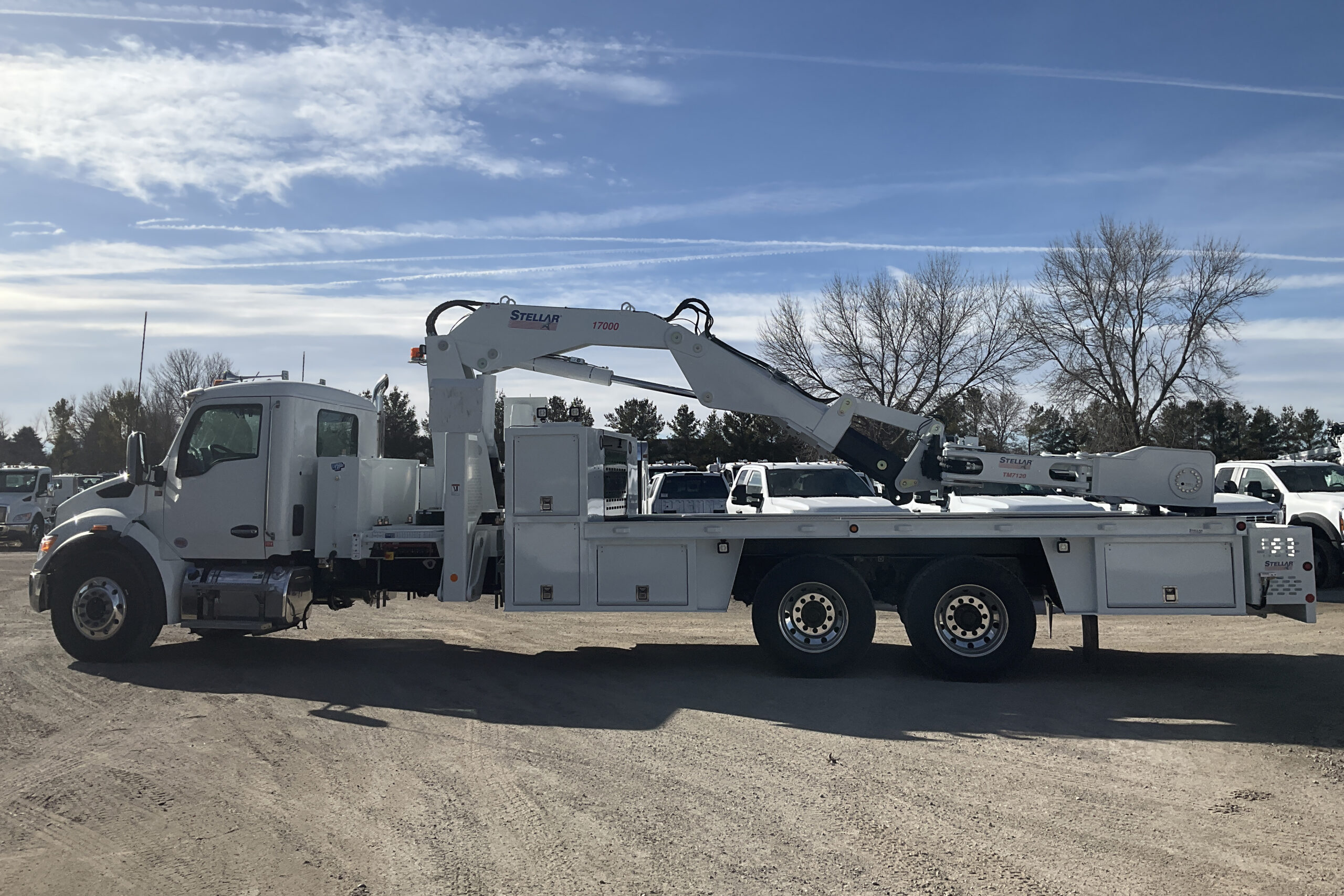

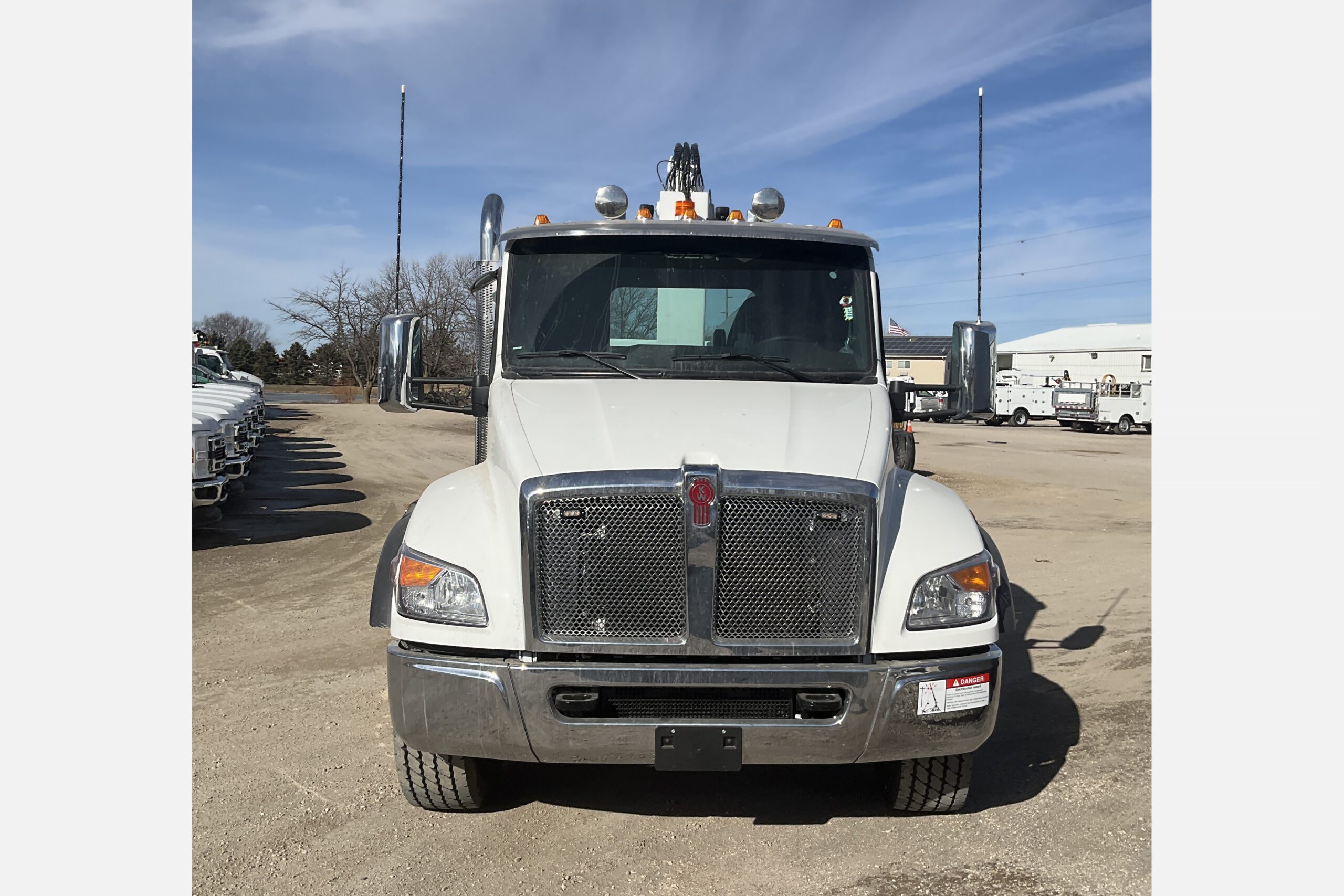

2026 Kenworth T480
- 218″ CT/283″ WB
- 58,000# GVW
- Paccar PX-9 370 HP Diesel

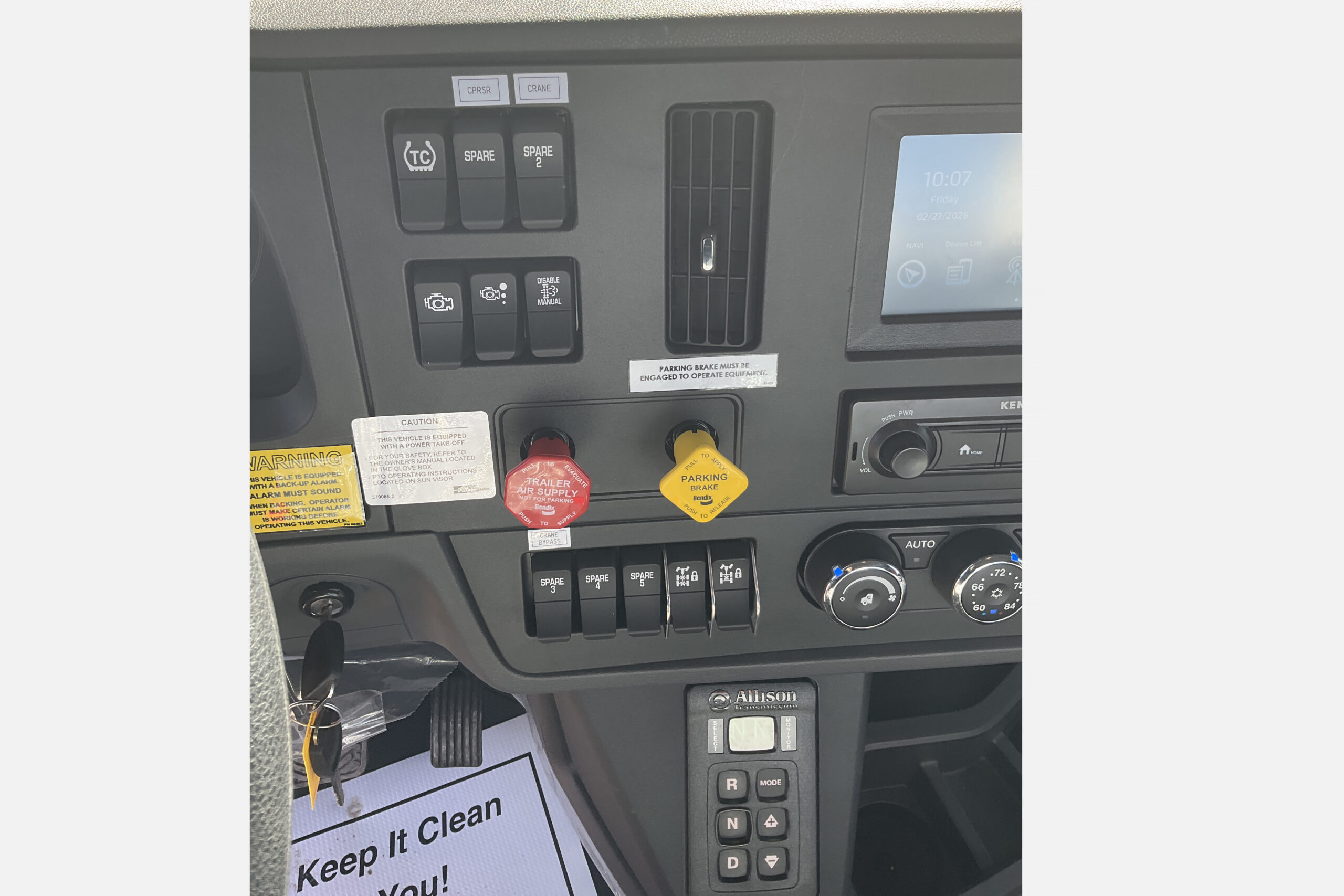

- Allison 3000
- 18,000# Front Axle
- 40,000# Rear Axle
- Horiz. Exhaust With Vertical Pipe
- Air Brakes
- 80-Gallon LH Fuel Tank
- 11R22.5 Tires
- Air Cond.
- Air Cushion Driver’s Seat
180-220 Flatbed Body Details
Body
- 180-220 All Steel OTR Flatbed Body
- Designed To Front Mount The 17000 Crane
- 20’L, 1/4″ Steel Floor

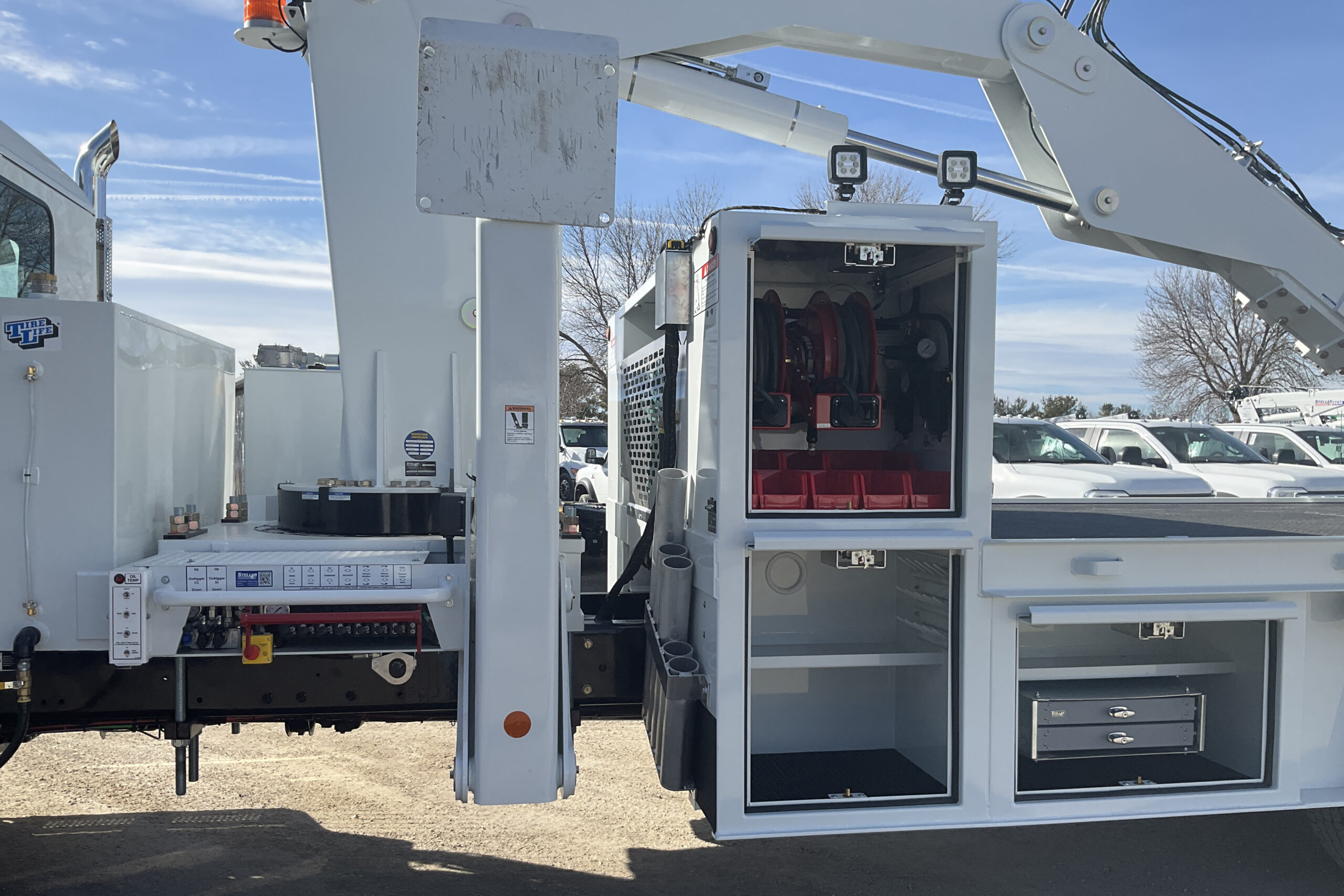

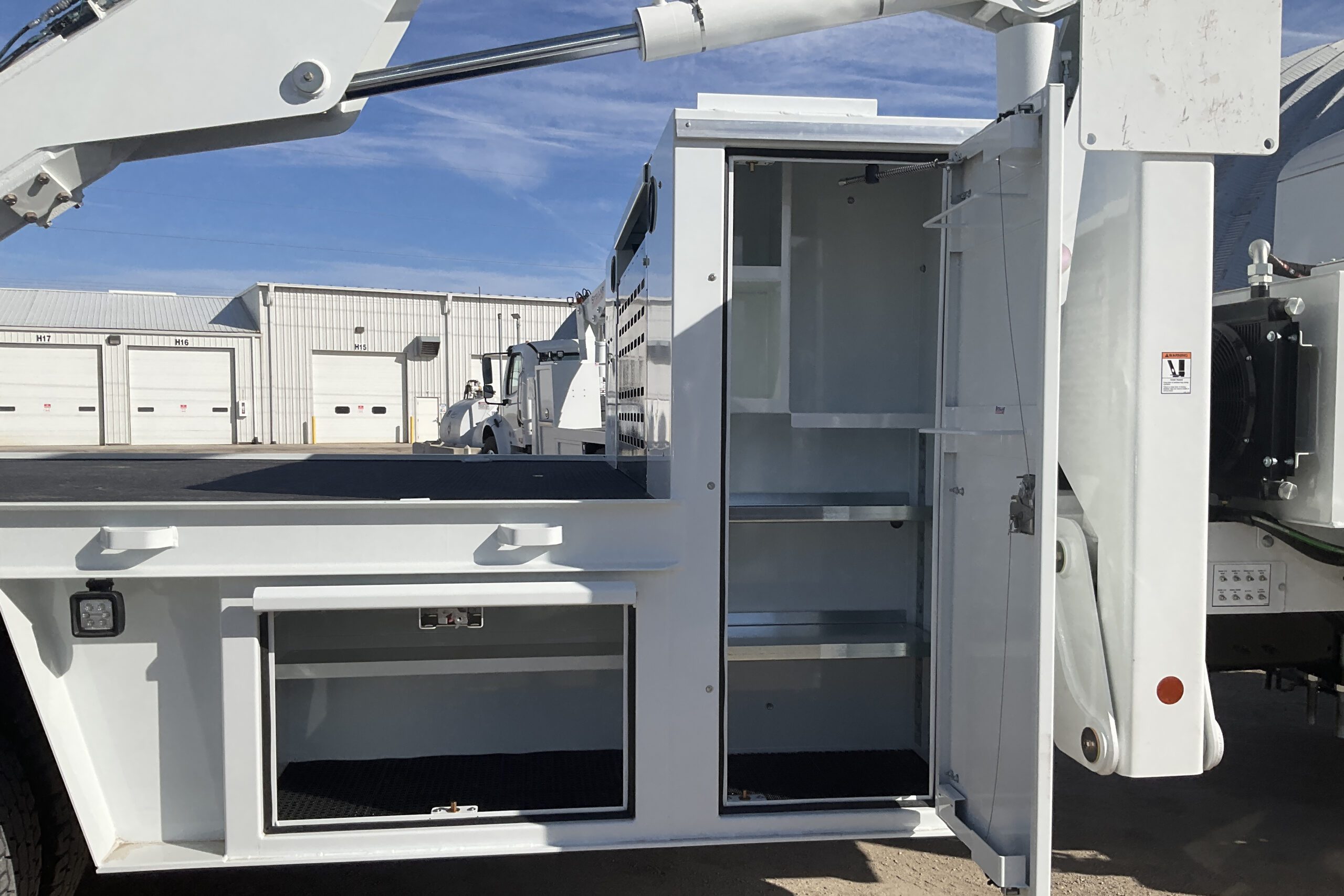

- LF Vertical Compartment 64″H x 30″W x 27″D, RF Vertical Compartment
- 64″H x 30″W x 22″D

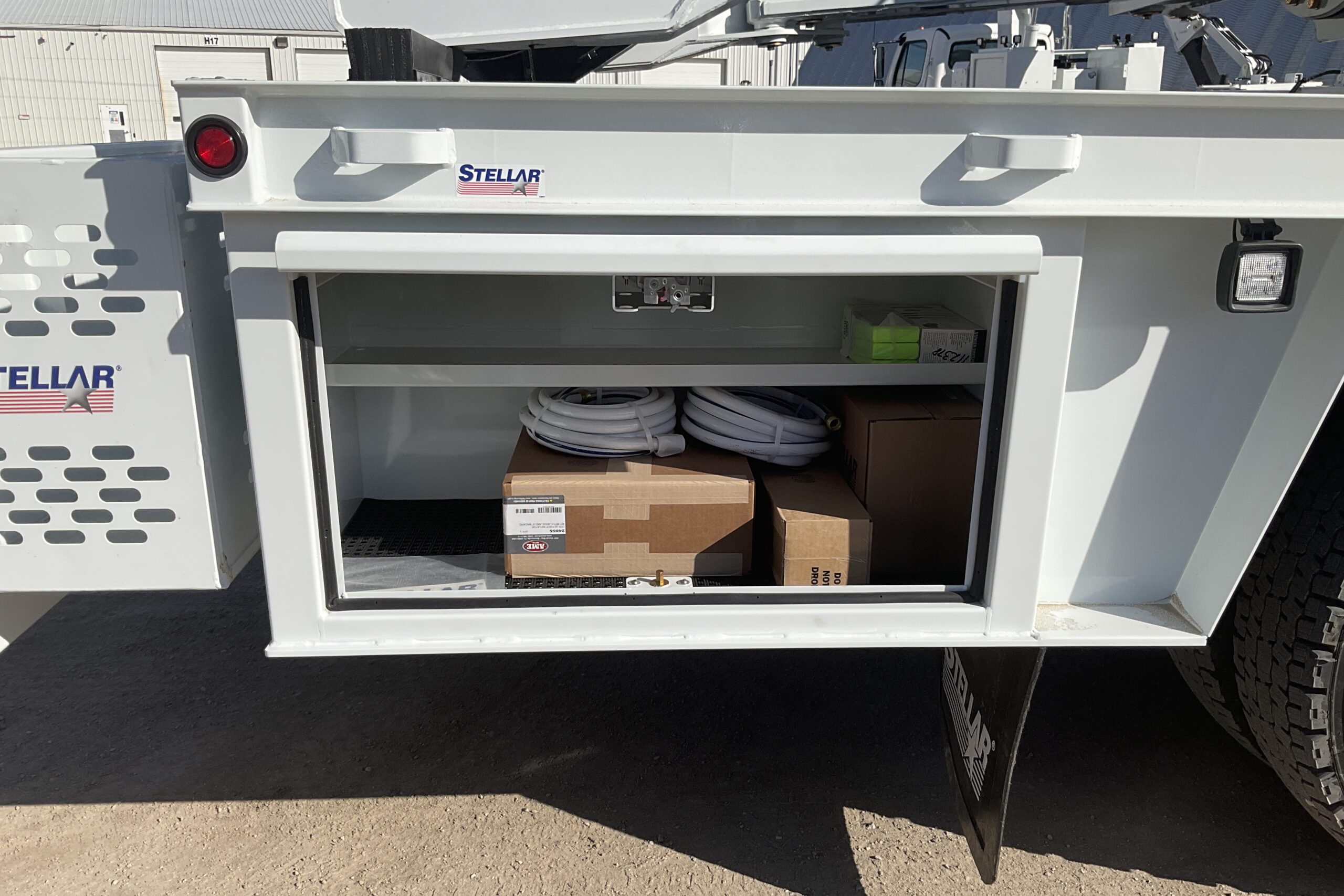

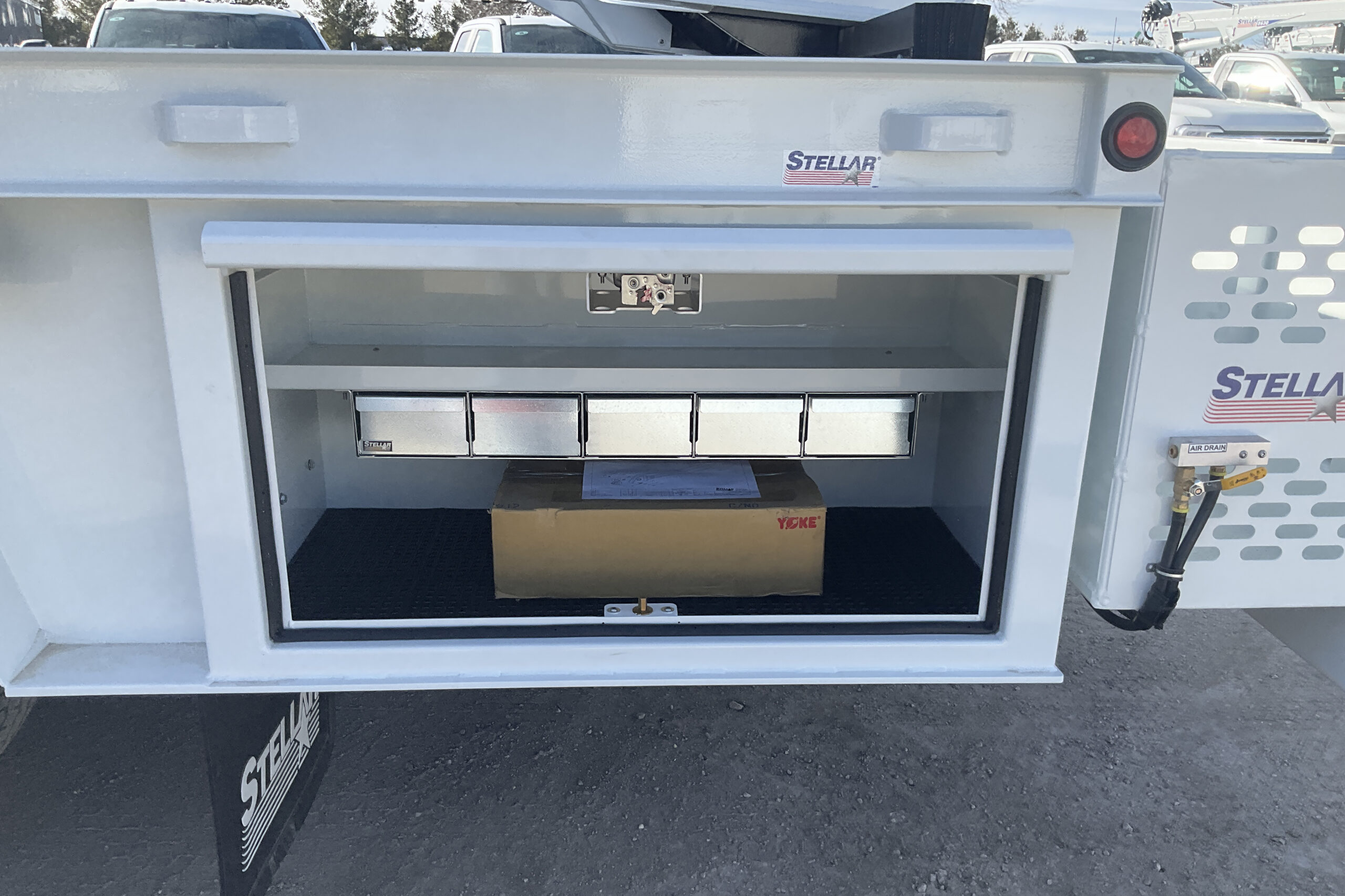

- 38″ LCF & RCF Underbody Tool Compartment
- 45″ LR & RR Tool Compartment
- Stop, Turn, Tail-Light Kit
- Body Mounting Kit OTR
Equipment / Options
- Swivel Load Hook
- Hydraulic Installation Kit For Front Mount – 13500/17000/23000/28000
- Stellar 110P Hydraulic-Driven Air-Cooled Compressor
- Produces 110 CFM @ 175 PSI
- 4-Cylinder
- 2-Stage Industrial Compressor (Champion R-70)
- Base, Motor, Fittings, Filter (TOP MOUNT)
- Crane Service Kit
Air Options
- 1/2” Reel Craft Dual Post Hose Reel
- 50’ Artic grade hose
- Channel Mounting In Compartment
- 22-Gallon Air Tank
- ASME Approved
- With Fittings, hose kit, mounting brackets
- Painted Black
Air Option
- 20′ OTR Inflation/Deflation Hose Kit
- Quick Release Coupler For Emergency Air Evacuation
- Includes Muffler
- Small And Large Bore Core Ejectors
- 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure
Tool Package
- Tire Bead Wedge – Six Pack
Compartment Options
- 5″ Wide Plastic Tray Inserts
- 11″ Wide Plastic Tray Inserts
- Compartment Option 7-Engineered To Order
- Compartment Option 8-Engineered To Order
- Compartment Option 11-Engineered To Order
- Adjustable Shelf – 17″D x 30″ W for SS1VL or CS1V
Body Mounted Options
- Dri Deck Mat Kit For Compartment Floors
- Top/Back Gate Assembly For 28000 Rear Mount
- One Pair Stellar Mud Flaps With Mounting Bolts
- Aluminum Tubing Tire Iron Holder
- 157-Gallon Tire Life Tank Assembly
Bumper Options
- Heavy Duty Rear Bumper
- Block Storage Box
- Frame Mounted
- 94″W x 24″H x 19″D
- Vertical Taillights Mounted To Outside Of Block Box Door
- Painted
- Tail Light Cover Kit
- LED Flood Light With Wide Beam
- Light Option 3
- Amber LED Class 1 Beacon Light
- Amber Strobe Light Package Includes (2) LED Lights
- Mounted In Rear Corner Post Of Body
- Streamlight Stinger Switchblade LED Work Light
- J-Hook
- Magnetic Base
- UV Light For Leak Detection
- 180 Degrees Of Rotation
- Includes Charger
- Strobe Light Kit
- Low Profile LED Amber Lights (2) Mounted In Chassis Grill
- Two Tire Carrier Mast Mounted LED Floodlights
Safety Options
- Chassis Mounted Back Up Alarm – 107 Db
- ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher / Reflector Kit
Chassis Options
- Relocated Battery
PTO/Pump Options
- Generic Hot Shift PTO
- Hydraulic Pump
- Single Section
Includes:
137524X PTO 281GSFJP-B5RK
137521X PTO 281GMFJP-B5RK
46474 PUMP HYD 330A142XXAB17.25
109659 PUMP HYD VOAC F1-61 W/FTG 1.25 PISTON
Electrical Options
- Program Speed Control For Cummins Engine
- Electrical Control Kit – Large OTR Body
- Includes Harness And Switch Panel With 12V Power Port
Paint & Finish
- Paint 20′ OTR Body Stellar White
- Axalta Paint Code 350407EX (Includes Undercoating)
- Single Stage
- Non-Metallic
- Spray On Bed Liner For 180-20 And 180-220 (Black)
17000 Crane Details

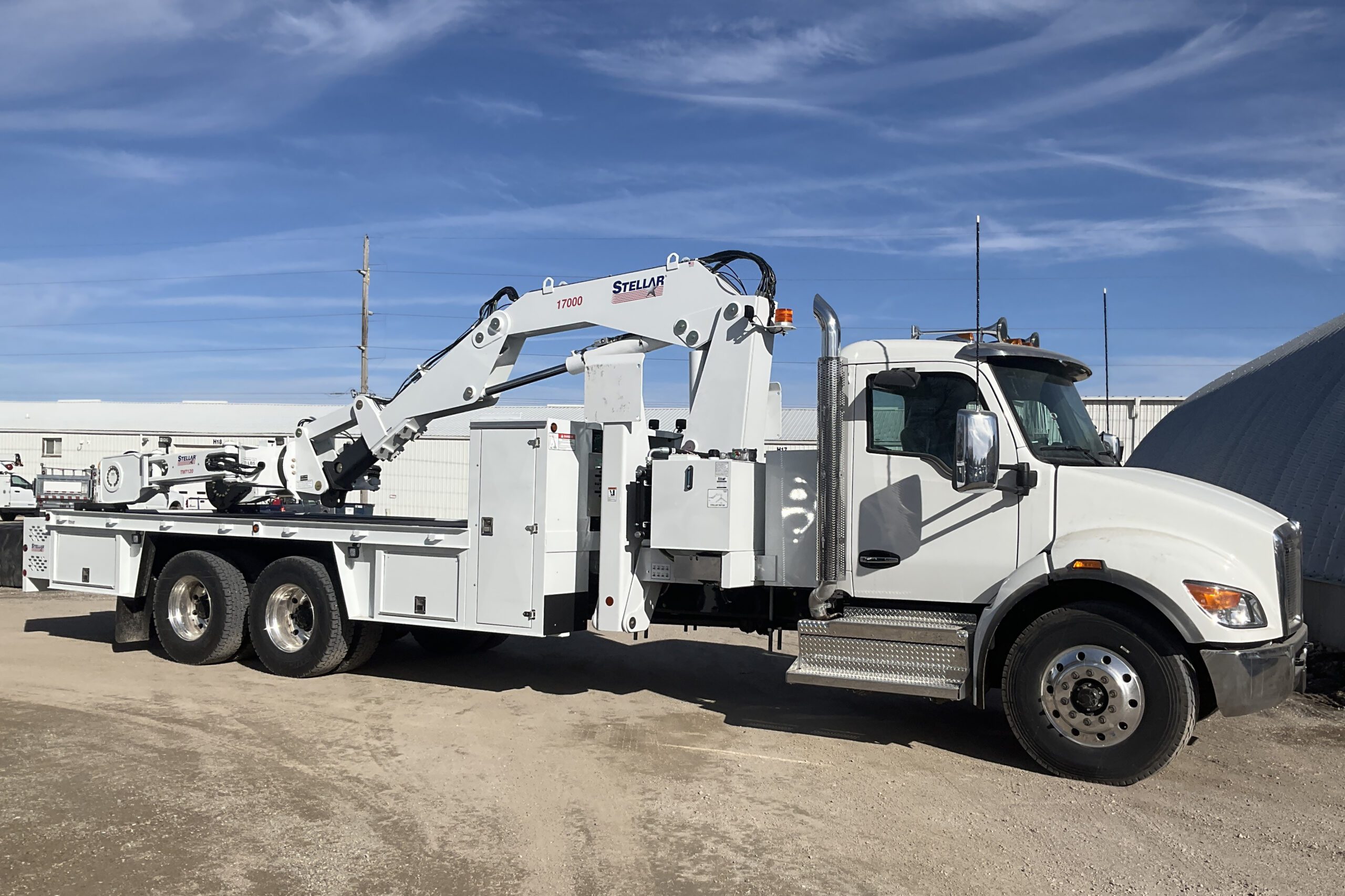

Stellar Model 17000 Center Mount Mast Crane
- 16’11” Of Reach From Center Line Of Chassis
- 170,000 ft lb capacity
- 17,000# @ 10′
- 10,050# @16’11”
- Proportional Radio Remote Control
- Counter Balance Check Valves
- Fold Down Style Stabilizers
- Painted White
