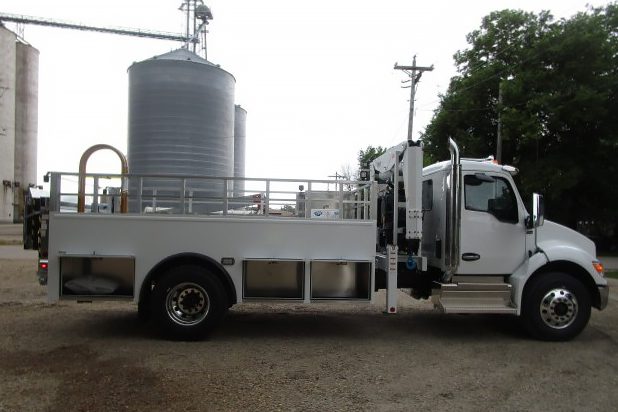

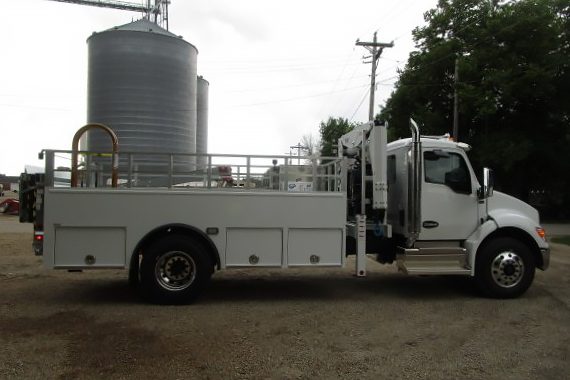

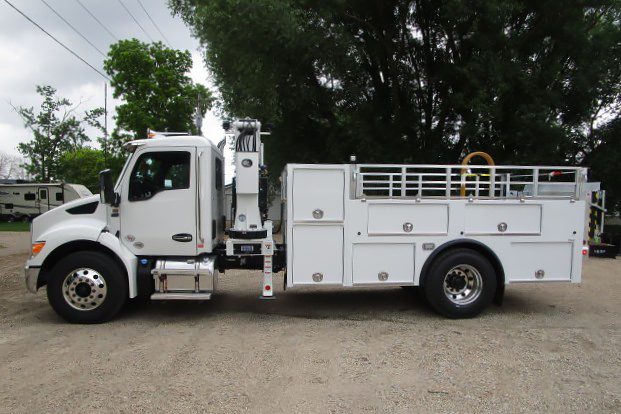

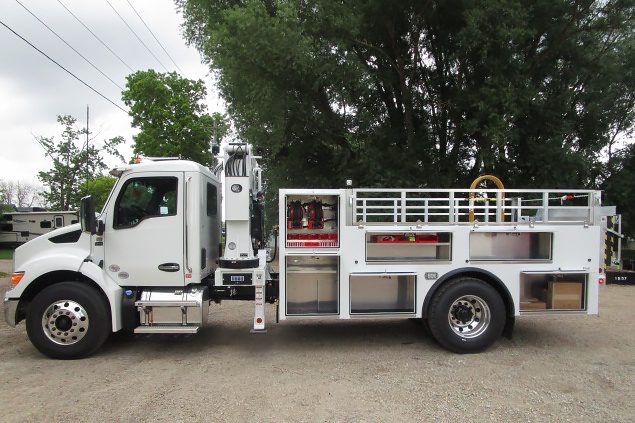

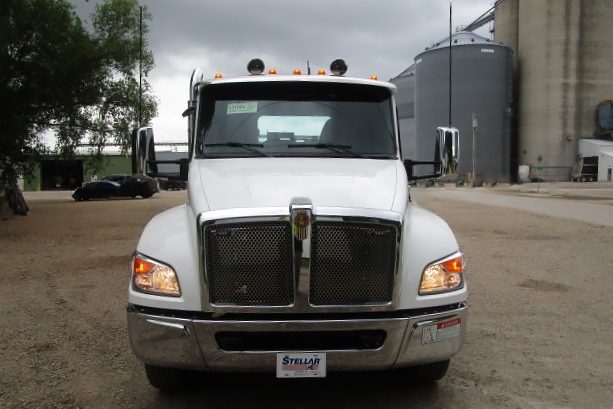

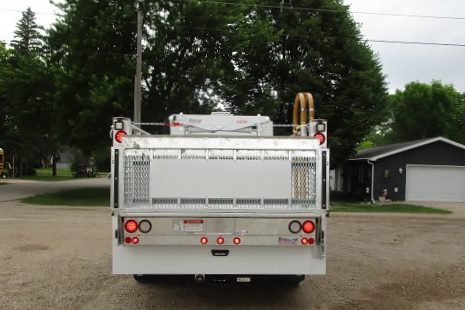

2027 Kenworth T280 w/1184-15 OTR/ 6000/46P (WR242)

2027 Kenworth T280

• 144″ CA/212″ WB
• 26,000# GVW
• Paccar PX-7 300 HP Diesel
• Allison 2500
• 10,000# Front Axle
• 21,000# Rear Axle
• Horiz. Exhaust With Vertical Pipe
• Air Brakes
• 50-Gallon LH Fuel Tank
• 11R22.5 Tires
• Air Cond.
• Air Cushion Driver’s Seat

Body

• 1184-15 OTR V3
• Aluminum body
• Rack Sides 15’L, 46″H
• Extruded Plank Floor
• (2) LF and (1) RF Underbody Compartments
• 36″ Top Mount (LF) With 2 Socket Racks
• (2) 44″L Underbody Compartments (RR/LR)
• 22″H Sign Panel
• LS Deck Mount Tool Compartment
• Fold Down Rail (LS)
• Load Bed Wall Liner
• Stop, Turn, Tail Light Kit
• Aluminum Skirts With Skirt- Mounted Floodlights RS and LS

Equipment / Options

• Crane Installation Kit – 6000
• Mini-OTR Bead Hook – 12000# Capacity
• Small Tire Crane Remote Docking Station Kit
• Service Kit For Stellar 46P Compressor And 6000 Crane
• 2,000# Hydraulic Liftgate
• Dual Lift Cylinders
• Recessed Lights
• Galvanized Frame And Platform
• Folding Side Rail And Tire Stop

Air Options

• 1/2” Reel Craft Dual Post Hose Reel With 50’ Artic Grade Hose
• 1/2″ FLR System (Filter/Lubricator/Regulator)
• Additional Regulator For Lubricated Line
• Easily Replaceable Segments And Safety Air Dump Valve
• 20′ OTR Inflation/Deflation Hose Kit w/Quick Release Coupler For Emergency Air Evacuation
• Includes Muffler
• Small And Large Bore Core Ejectors
• 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure

Tool Package

• Tire Bead Wedge – Six Pack

Compartment Options

• 3 1/2″ Wide Plastic Tray Inserts
• 5″ Wide Plastic Tray Inserts
• 11″ Wide Plastic Tray Inserts
• Socket Tray – Flat Design – 9 Pin – 12″w

Jackbox Option

• Underbody Toolbox Panel

Body Mounted Options

• Dri Deck Mat Kit For Compartment Floors
• Aluminum Sill Guard Kit
• Aluminum Folding Step
• One Pair Stellar Mud Flaps
• 25-Gallon Tire Life Tank Mounted In Loadbed
• Two Bar Truck Tire Safety Inflation Cage
• Inflation Cage Holder (Body Deck Mount)
• LED Flood Light With Wide Beam
• Compartment LED Light Kit
• Whelen Century 16″ LED Amber Mini Lightbar With Clear Len
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED Work Light With J-Hook
• Magnetic Base
• UV Light For Leak Detection
• 180 Degrees Of Rotation / Includes charger
• Strobe Light Kit – Low Profile LED Amber Lights (2) Mounted In Chassis Grill
• Two Tire Carrier Mast Mounted LED Floodlights
• Rear Ground Perimeter

Safety Options

• Chassis mounted back up alarm – 107 Db – Installed
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Chassis Options

• Class 5 Receiver Hitch For Aluminum Bodies With Liftgate
• Trailer Plug – 7 Pin Round

• PTO/Pump Options

• Generic Hot Shift PTO
• Hydraulic pump, tandem section for crane and compressor
• Includes:
  • 58467X PTO 272GCHVP-B3RK I
  • 34301 PUMP HYD DE2R41SHBB12521N113
  • 37673X PUMP INST KIT T-SERVICE DAN FOSS INSTALL

Electrical Options

• Program Speed Control For Cummins Engine
• Electrical Control Kit

Paint & Finish

• Stellar White
• Single Stage
• Non-Metallic

• Stellar Model 6000

• Side Mount Mast Crane With 17′ Of Reach From Center Line Of Chassis
• 60,000 ft lb Capacity
• 10,000# @ 9′
• 4,250# @17′
• Proportional Radio Remote Control
• Counter Balance Check Valves
• A-Frame Style Stabilizers

Stellar 46P compressor

• 15-Gallon Hydraulic Reservoir
• Crane Mounted
• 46 CFM @175 PSI
• Base, Motor, Cooler, Filters, Fittings
• 20-Gallon Air Tank
