26 Peterbilt 536 Details

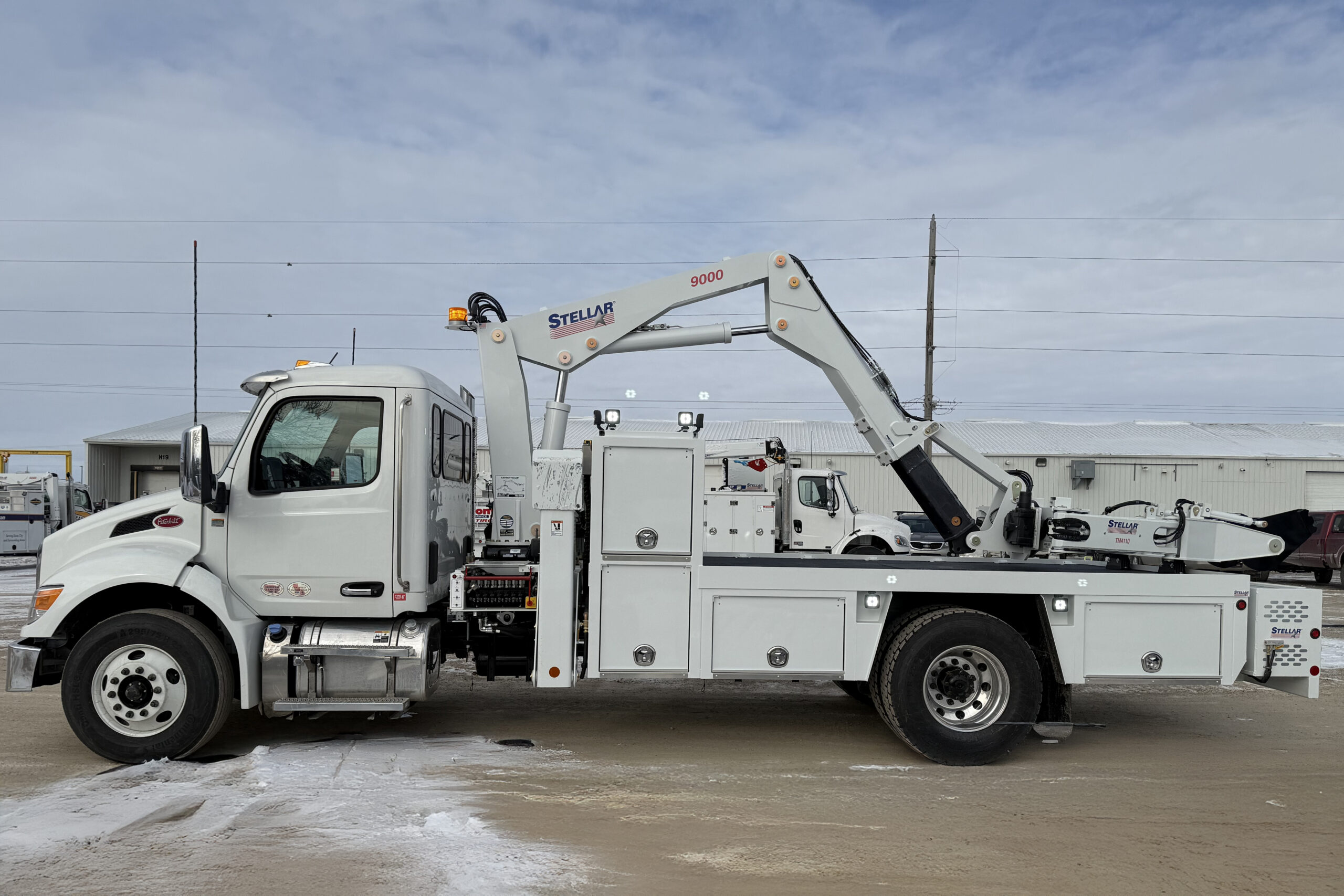

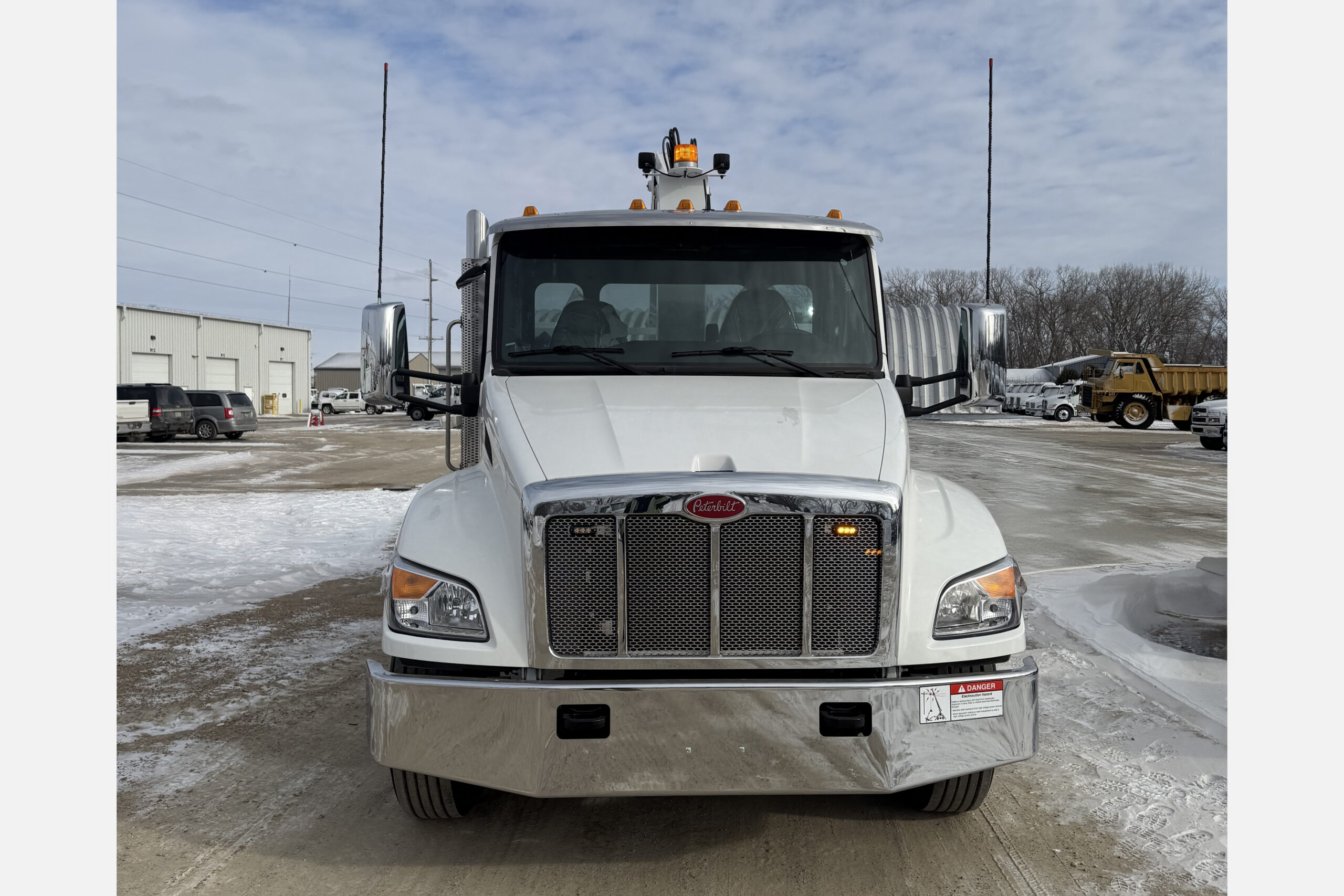

2025 Peterbilt 536
- 144″ CA/212″ WB
- 26,000# GVW
- Paccar PX-7 300 HP Diesel
- Allison 2500, 12,000# Front Axle
- 19,000# Rear Axle
- Horiz. Exhaust With Vertical Pipe
- Air Brakes
- 50-Gallon LH Fuel Tank
- 11R22.5 Tires
- Air Cond.
- Air Cushion Driver’s Seat
138-215 V2 Body Details
Body
- 138-215 V2 Steel Flatbed Body
- 15’L, 3/16″ Deck Plate Floor

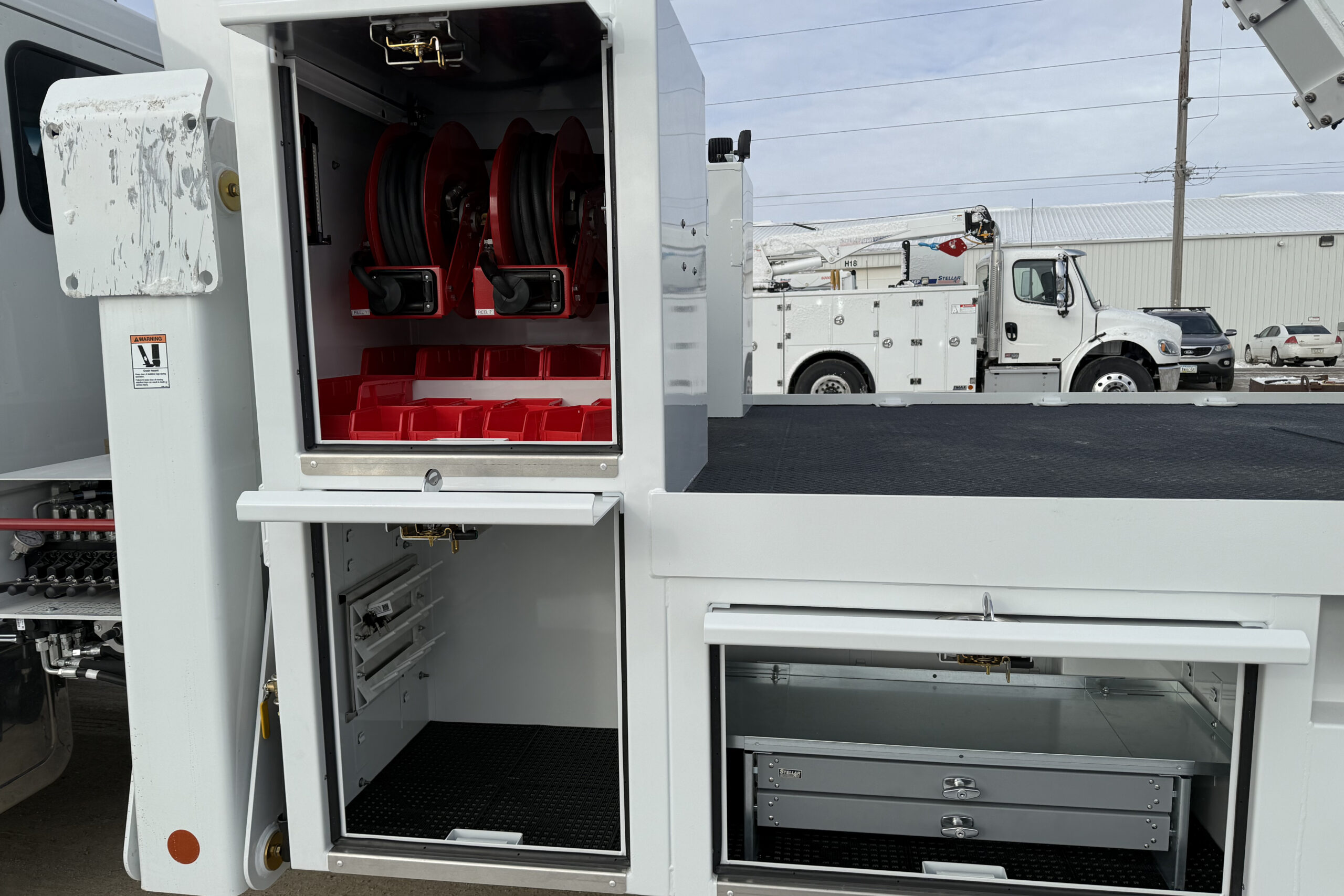

- SS1V (Upper) Reel And Storage Compartment 34″H x 30″W x 27″D
- SS1VL (Lower) Compartment 30″H x 30″W x 27″D
- CS1V Compartment 64″H x 30″W x 20″D

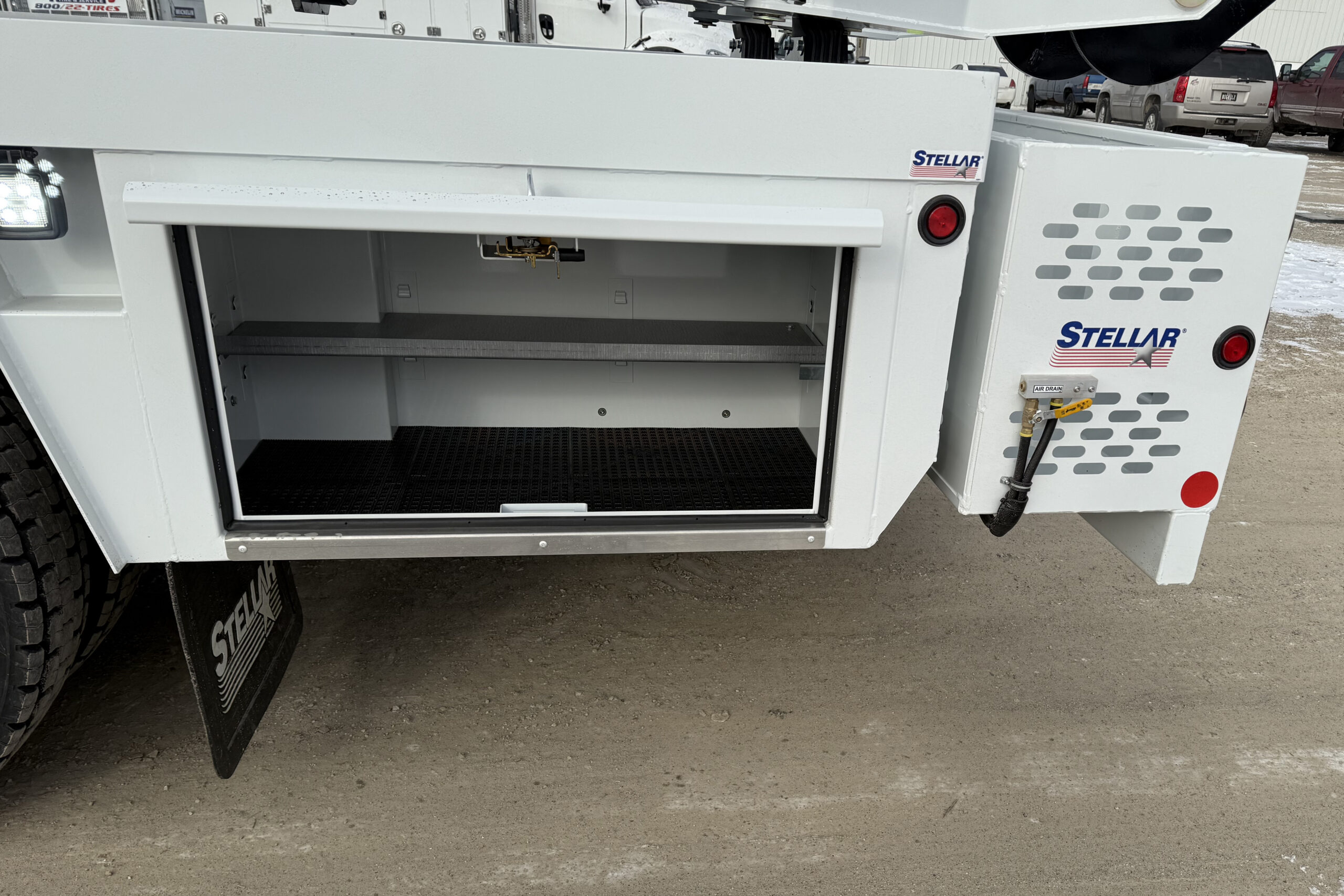

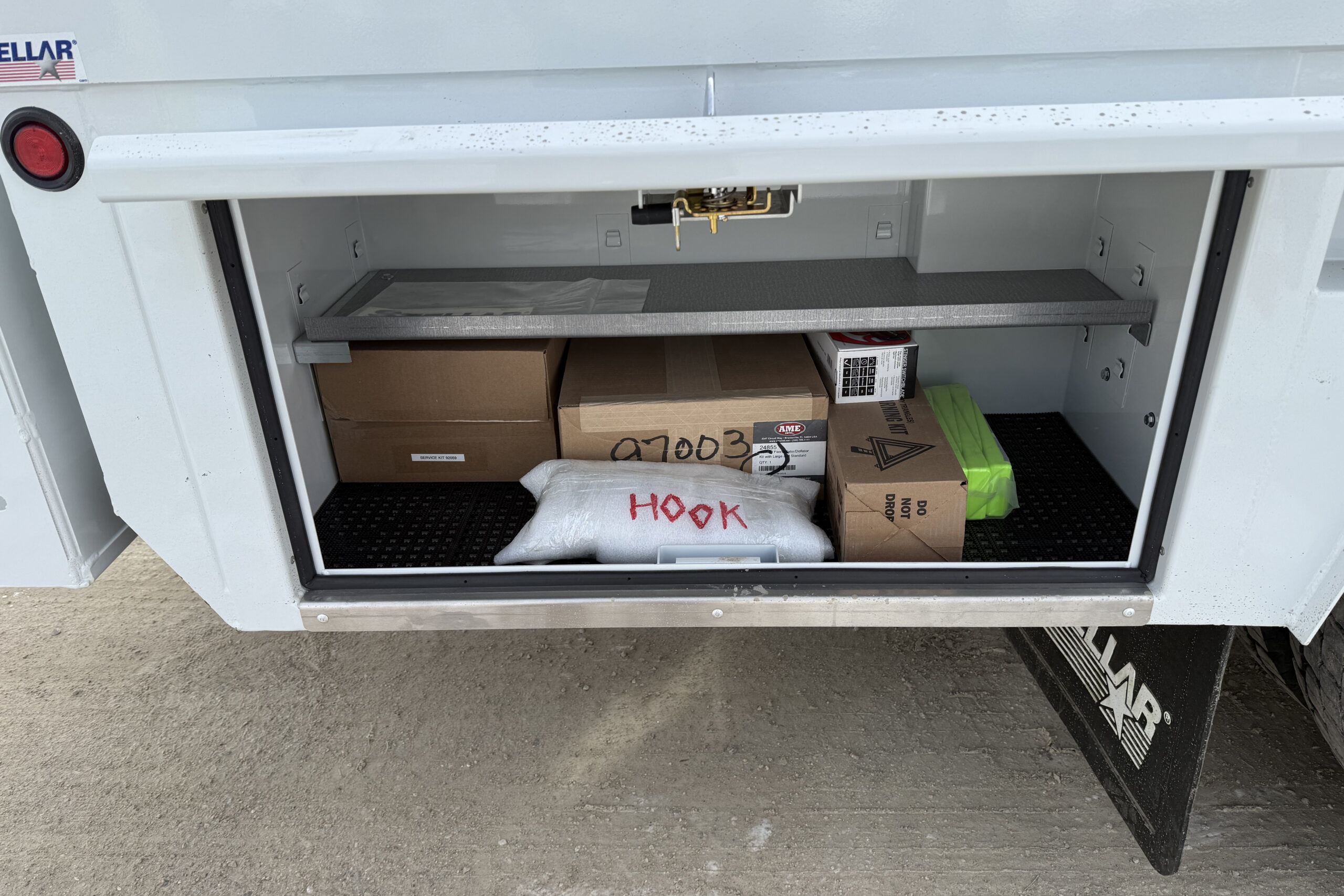

- Underbody Tool Compartments SS2, SS3, CS2, CS3
- Includes 12 D-Rings In The Load Bed
- Stop, Turn, Taillights
- Body Mounting Kit OTR
Equipment / Options
- Swivel Load Hook
- Service Kit For Fully Proportional 9000 Crane And American Eagle 46P Air Compressor
Air Options
- 1/2” Reel Craft Dual Post Hose Reel With 50’ Artic Grade Hose
- Channel Mounting In Compartment
- 22-Gallon Air Tank
- ASME Approved
- Fittings And Hose Kit
- 1/2″ FLR System (Filter/Lubricator/Regulator) With Additional Regulator For Lubricated Line
- Easily Replaceable Segments And Safety Air Dump Valve
- 20′ OTR Inflation/Deflation Hose Kit W/ Quick Release Coupler For Emergency Air Evacuation
- Includes Muffler
- Small And Large Bore Core Ejectors And 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure
Tool Package
- Tire Bead Wedge – Six Pack
Compartment Options
- 3 1/2″ Wide Plastic Tray Inserts
- 5″ Wide Plastic Tray Inserts
- Compartment Option 7-Engineered To Order Drawer Set
- 10.5″H x 32″W x 16″D, 2-3″ (Incl. 2.5″ Riser)
- Adjustable Shelf – 17″D x 30″ W For SS1VL Or CS1V
Front Compartment Options
- Adjustable Shelf – 13″D x 45″ W For CS Notched Underbody Toolbox
Rear Compartment Options
- Adjustable Shelf – 13″D x 45″ W For SS Notched Underbody Toolbox
Body Mounted Options
- Dri Deck Mat Kit For Compartment Floors On 1302E, 1184, 1100 OTR And All TMAX Mechanics Bodies
- Compartment Sill Guards For 138-215 Body
- One Pair Stellar Mud Flaps With Mounting Bolts
- 25-Gallon Tire Life Tank For 1184, 1320E, And 138-15/138-215 Body
- Mounted In Load bed
Bumper Options

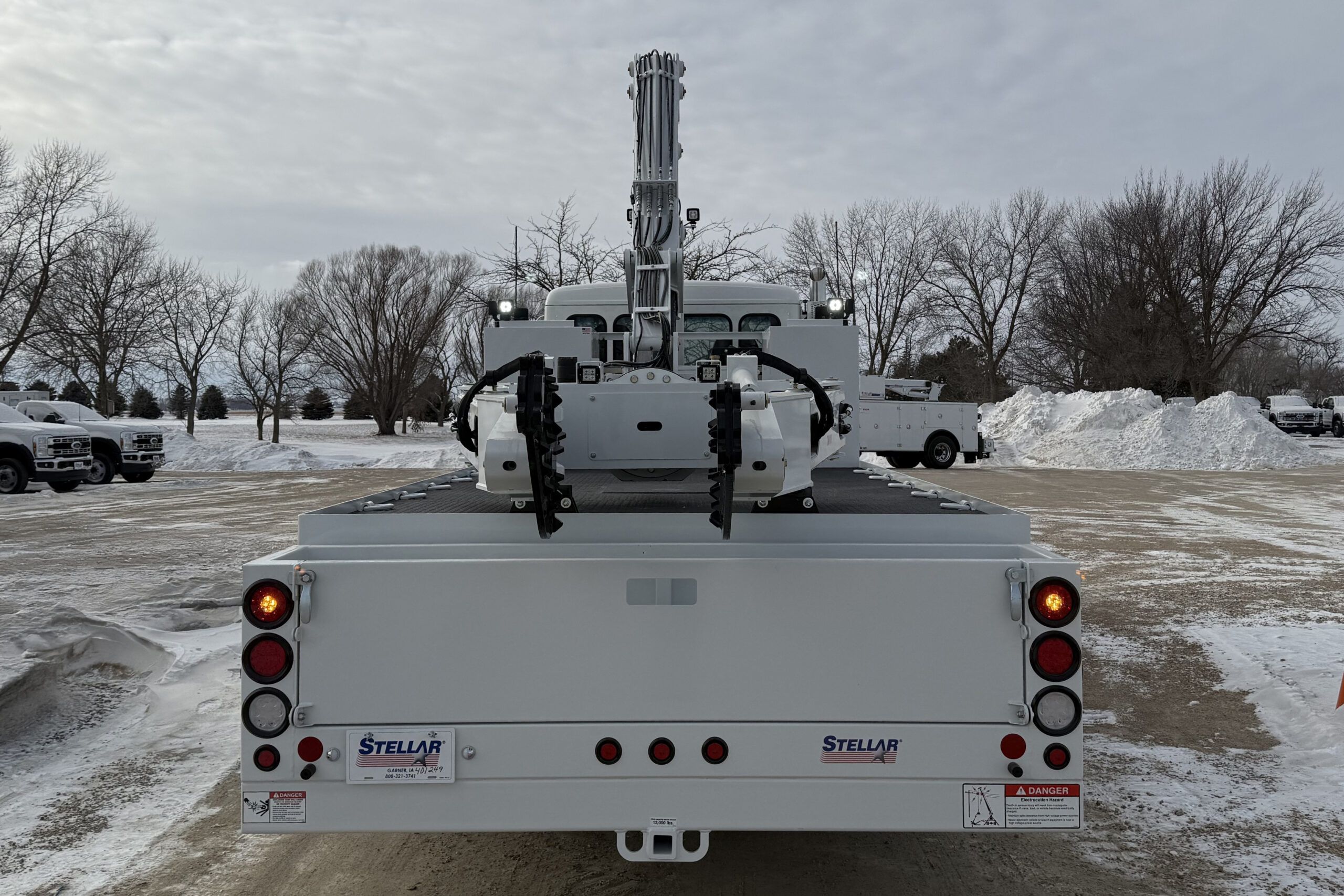

- Heavy Duty Rear Bumper/Block Storage Box
- Frame Mounted
- 94″W x 24″H x 19″D
- Vertical Taillights Mounted To Outside Of Block Box Door (Painted)
- Tail Light Cover Kit – 138 / 162 style OTR Body With Formed Rub Rail Only (Body PN 5262, 19775, 72021, 54666, 54350)
- To Be Used In Conjunction With 80008 Block Box Bumper
- LED Flood Light With Wide Beam
- Large OTR LED Compartment Light Kit – Front Vertical Compartment (Need One For Each Vertical Compartment)
- Large OTR LED Compartment Light Kit – Underbody Tool Box Compartments (Need One For Each Compartment)
- Amber LED Class 1 Beacon Light
- Light Kit – High Mount
- Streamlight Stinger Switchblade LED Work Light With J-Hook, Magnetic Base
- UV Light For Leak Detection
- 180 Degrees Of Rotation
- Includes Charger
- Strobe Light Kit – Low Profile LED Amber Lights (2) Mounted In Chassis Grill
- Two Tire Carrier Mast Mounted LED Floodlights
Safety Options
- Chassis Mounted Back Up Alarm – 107 Db
- ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit
Chassis Options
- Relocate Battery
PTO/Pump Options
- PTO-Engineered To Order
- Pump-Engineered To Order
Includes:
- PTO1 – Engineered To Order
- Pump1 – Engineered To Order
- Pump Kit1 -Engineered To Order
Electrical Options
- Program Speed Control For Cummins Engine
- Electrical Control Kit – Large OTR Body – Includes Harness And Switch Panel With 12V Power Port
Paint & Finish
- Paint 15′ OTR body Stellar White, Axalta Paint Code 350407EX (Includes Undercoating)
- Single Stage
- Non-Metallic
- Spray On Bed Liner For 138-15 And 156-17 Body (Black)
9000 Crane Details

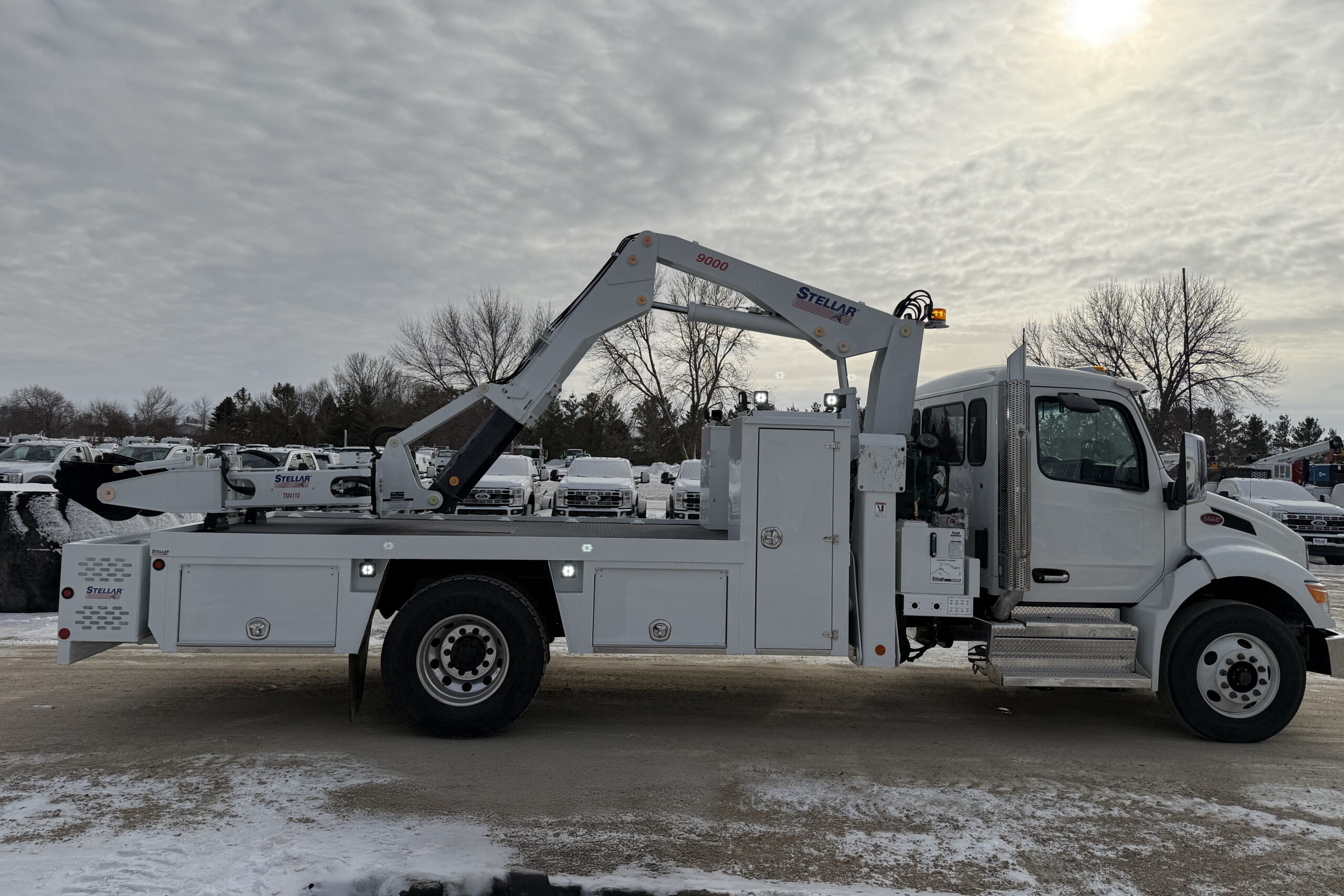

Stellar Model 9000
- Center Mount Mast Crane
- 16′ Of Reach From Center Line Of Chassis
- 90,000 ft-lb Capacity
- 9,000 lbs. @ 10′, 5,425 lbs. @16’7″
- Fully Proportional Radio Remote Control
- Counterbalance Check Valves
- Dual Worm Gear Rotation
- Fold Over Style Stabilizers
- Painted White
Stellar Accessories
- 46P Compressor
- 30-Gallon Hydraulic Reservoir
- Crane Mounted
- 46 CFM @175 PSI
- With Base, Motor, Cooler, Filters And Fittings
