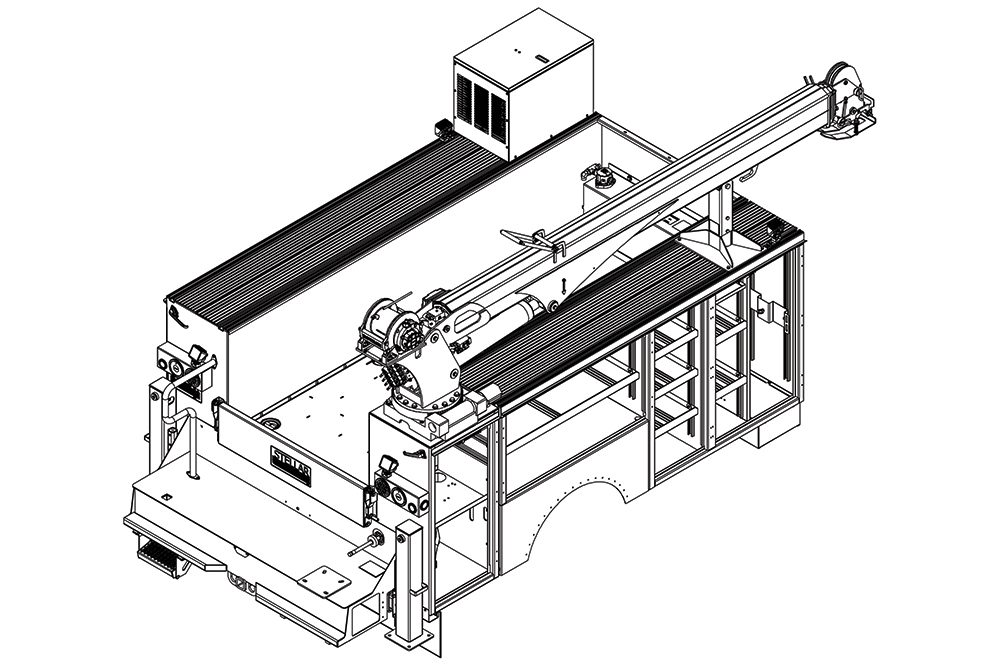

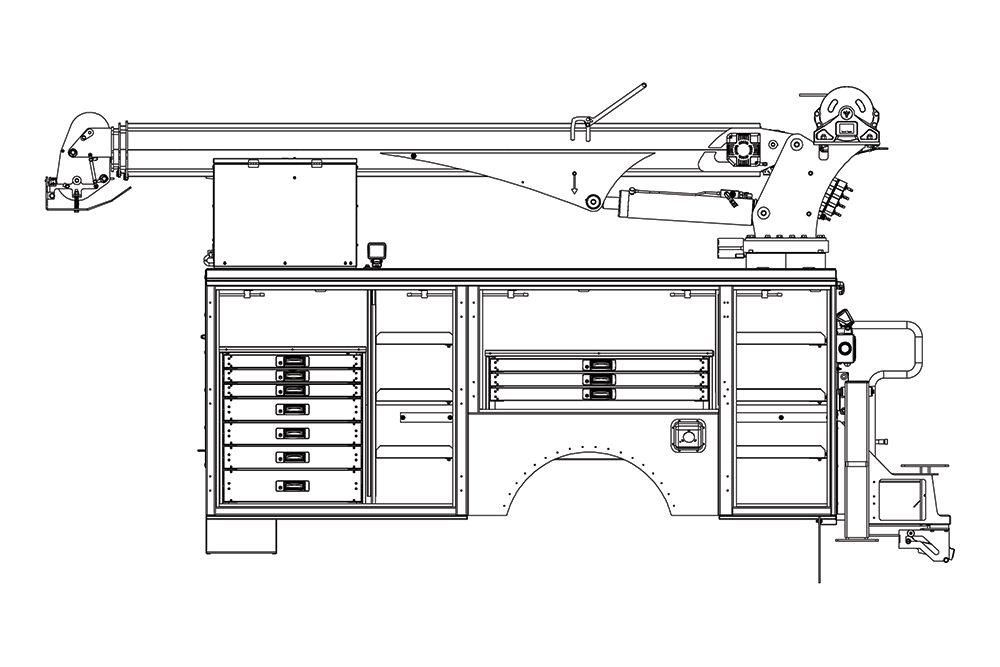

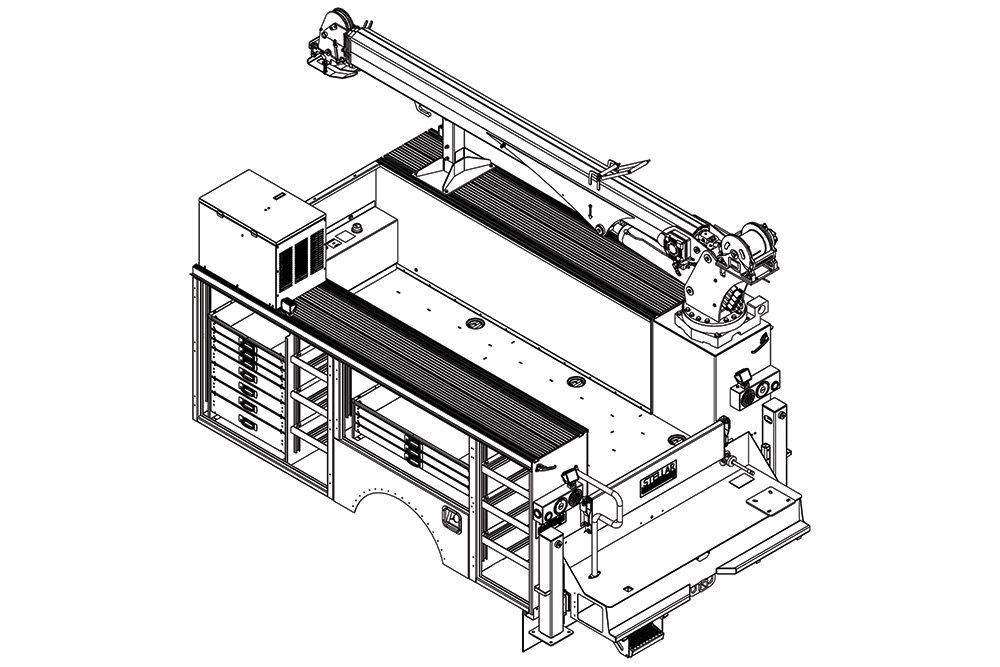

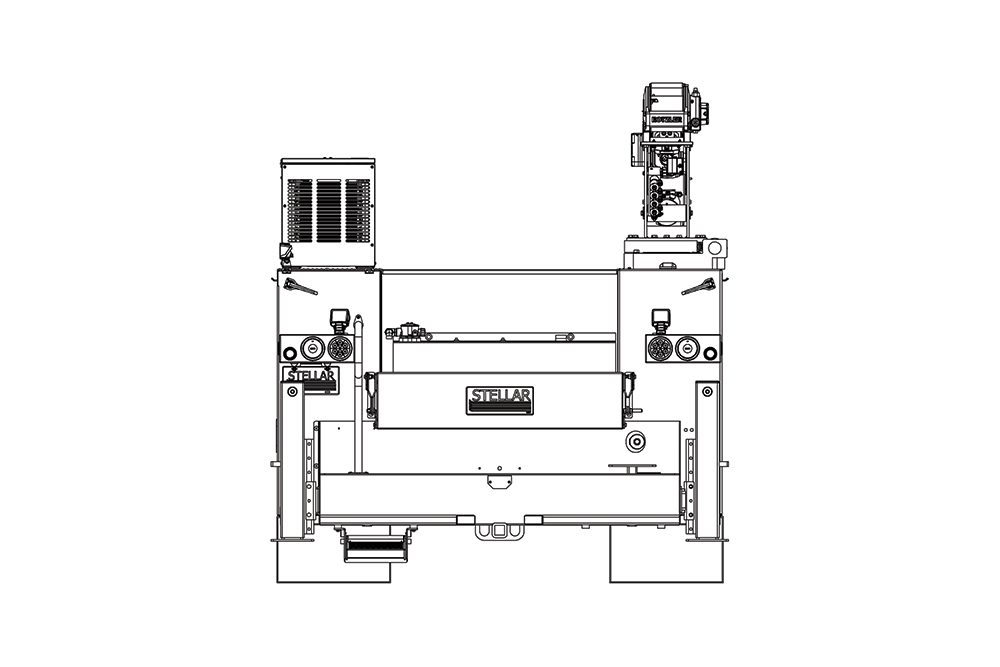

2025 TMAX 1-11 Aluminum Mechanic Body Details
Body Features
- Aluminum Side Packs
- Aluminum Doors
- Isolated Steel Crane Compartment and Torsion Box Understructure
- All compartments raised to 52″
- 8″ Drop Well in CS1V for Oxy /Acet Bottles
- 21″ work bench bumper with thru compartment
- flush front bulkhead
- exterior DOT light package
- master-lock system
- 22″D X 52″H side packs
- 133″ long
- (6) recessed cargo tie-downs
- Dual-seal automotive type compartment weather seal
- Rubber fenderettes
- Overlapped doors on SS1V / CS1V and horizontal compartments
- 2 & 3-point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Weld on receiver hitch
- Prime painted
- Undercoated
Compartment Storage
- Streetside 1st Vertical in front of the divider:
- Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 35.5″H x 31″W x 18″D, 3-3″, 3-5″, 1-7″ (139705AX) w/LightBar
- Streetside 1st Vertical to the rear of the divider:
- Strut mounted shelf with (3) dividers 18.50″W x 19.00″D (138604X)
- Streetside Horizontal
- Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 13.5″H x 48″W x 18″D, 3-3″ (13472AX) w/LightBar
- Streetside Rear
- Strut mounted shelf with (3) dividers 23.38″W x 19.00″D (138441X)
- Curbside 1st Vertical
- Divider kit with strut mounted shelves 19.00 wide (138792X)
- Strut mounted oxy-acet bottle holder – 2 bottle holder (138165X)
- Curbside 2nd Vertical
- Strut mounted shelf with (3) dividers 20.38″W x 19.00″D (138834X)
- Curbside Horizontal
- Strut mounted shelf with (3) dividers 52.00″W x 19.00″D (138443X)
- Curbside Rear
- 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body
Body Mounted Options
- Rock guard kit – Adhesive black
- Black Grab Handle – mounts to rear side pack and bumper
- One pair Stellar mud flaps with mounting bolts
- TMAX Aluminum Tailgate – 12″ Tall, painted black
- Adjustable Boom Support
- Roller Rest, painted black
Bumper Mounted Options
- Vise mounting plate – Receiver work bench mount
- Step, slide out for TMAX mechanics work bench bumper
- Stabilizer Assembly – hydraulic out/hydraulic down, painted black
Light Options
- LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
- LED Compartment Light Kit
- Stellar® rear taillights equipped with integrated strobe lights, license plate bracket, ID light bar, reflectors, and one flood light mounted on top of each box
Safety Options
-
Cover Plate for Backup Camera
Electrical Options
- Truck Upfitter Switches Control Package
Hydraulic Options
- Hydraulic reservoir, 20 gallon, bulkhead mounted, painted black
Paint & Finish
- Paint 9’-12’ body Stellar White Paint, Axalta paint code 350407EX
- Spray on bed liner for load bed walls and floor – Black
- Spray on bed liner for work bench bumper – Black
8630 Hydraulic Service Crane Details
- Crane Rating : 44,840 ft-lb
- Max Lifting Capacity: 8,600 lbs @ 6′ 2″
- Maximum Horizontal Reach: 29′ 8″ from CL of crane
- Maximum Vertical Lift: 31′ 6″ from crane base
- Boom Elevation: -10° to +80°
- CDTpro™ Control System w/Range Finder
- Additional Product Information
40P Air Compressor Details
- Output Capacity: 40 cfm @ 100 psi
- Max. pressure: 150 psi
- Cylinders: 2-cylinder, single-stage
- Electrical control: 12 VDC @ 20 amps
- FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
- Additional Product Information
Availability
SO# | Unit | Color | Availability | Comments | Quote |
---|---|---|---|---|---|
369698 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | Available Now | ||
380035 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 7/31/25 | ||
391671 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/12/25 | ||
391672 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/13/25 | ||
391673 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/19/25 | ||
391674 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/20/25 | ||
391676 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/20/25 | ||
391670 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/21/25 | ||
391675 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/21/25 | ||
391677 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 8/21/25 | ||
380034 | 2025 TMAX1-11 AL/ 8630/ 40P | Stellar White | 9/2/25 |
