Stock: 2025 TMAX 2-14 Aluminum/12630/46P (WR93)

Body Features

• Aluminum Side Packs
• Aluminum Doors
• Isolated Steel Crane Compartment and Torsion Box Understructure
• All compartments raised to 60″
• 21″ work bench bumper with thru compartment
• Flush front bulkhead
• Exterior DOT light package
• Master-lock system
• 22″D X 60″H side packs
• 168″ long
• (6) recessed cargo tie-downs
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V / CS1V and horizontal compartments
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Pintle hitch mount
• Prime painted
• Undercoated
• Additional Product Information

Compartment Storage

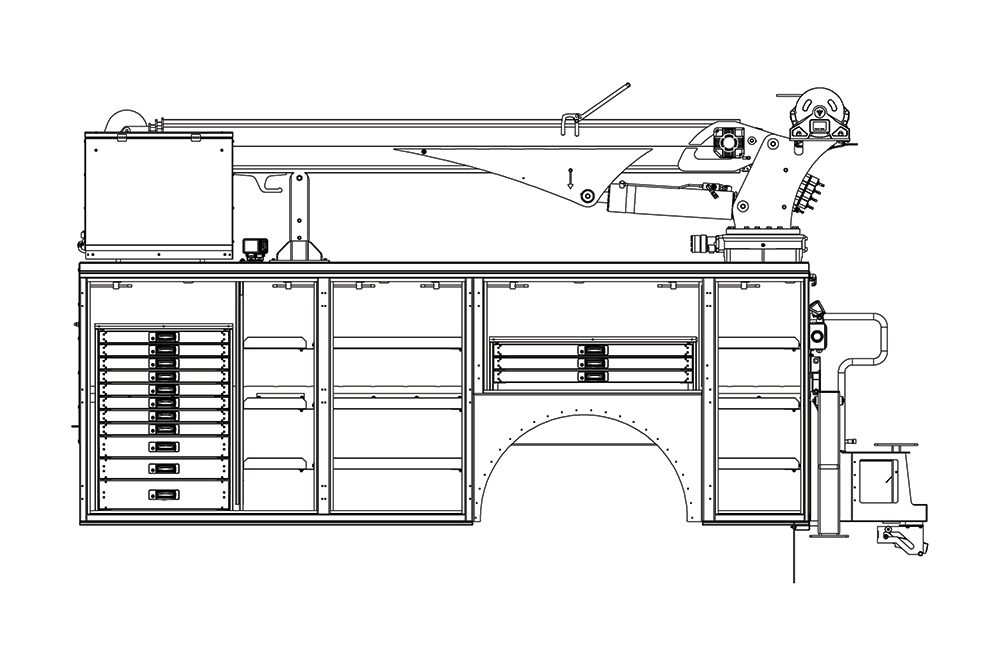

• Streetside 1st Vertical in front of the divider:
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 46″H x 32″W x 18″D, 8-3″, 2-5″, 1-7″ (133742AX) w/LightBar
• Streetside 1st Vertical to the rear of the divider:
  • Strut mounted shelf with (3) dividers 16.50″W x 19.00″D (138439X)
• Streetside 2nd Vertical:
  • Strut mounted shelf with (3) dividers 35.38″W x 19.00″D (138830X)
• Streetside Horizontal
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 13.5″H x 48″W x 18″D, 3-3″ (133472AX) w/LightBar
• Streetside Rear
  • Strut mounted shelf with (3) dividers 23.38″W x 19.00″D (138441X)

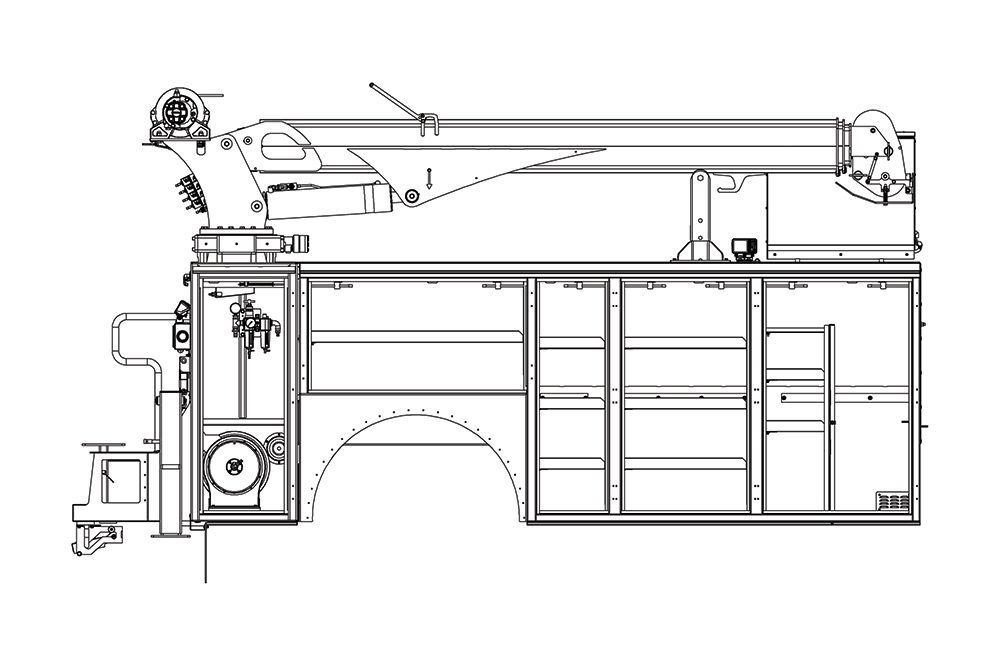

• Curbside 1st Vertical
  • Divider kit with strut mounted shelves 19.00 wide (138792X)
  • Strut mounted oxy-acet bottle holder – 2 bottle holder (138165X)
• Curbside 2nd Vertical
  • Strut mounted shelf with (3) dividers 31.75″W x 19.00″D (138832X)
• Curbside 3rd Vertical
  • Strut mounted shelf with (3) dividers 18.50″W x 19.00″D (138604X)
• Curbside Horizontal
  • Strut mounted shelf with (3) dividers 52.00″W x 19.00″D (138443X)
• Curbside Rear
  • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body

Body Mounted Options

• Rock guard kit – Adhesive black
• Black Grab Handle – mounts to rear side pack and bumper
• One pair Stellar mud flaps with wire guards
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – hydraulic out/hydraulic down, painted black

Light Options

• LED Flood Light Kit
• LED Compartment Light Kit
• Stellar® rear taillights equipped with integrated strobe lights, license plate bracket, ID light bar, reflectors, and one flood light mounted on top of each box

Safety Options

• Cover Plate for Backup Camera

Electrical Options

• E-Link 2.0 Basic – Cab Mounted/Rear Mounted Manual Switches (Includes body harness and PDM)
• Dash Mount Kit – E-Link Basic/VEC

Hydraulic Options

• Hydraulic reservoir, 35 gallon, bulkhead mounted, painted black

Paint & Finish

• Paint 13’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• Crane Rating : 77,800 ft-lb
• Max Lifting Capacity: 12,000 lbs @ 6′ 5″
• Maximum Horizontal Reach: 30′ from CL of crane
• Maximum Vertical Lift: 31′ 9″ from crane base
• Boom Elevation: -10° to +80°
• CDTpro™ Control System w/Range Finder
• Additional Product Information

• Output Capacity: 46 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder, 2-stage
• Electrical control: 12 VDC @ 20 amps
• 22 gallon air tank with fittings, hose kit, mounting bracket
• FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
• Additional Product Information
