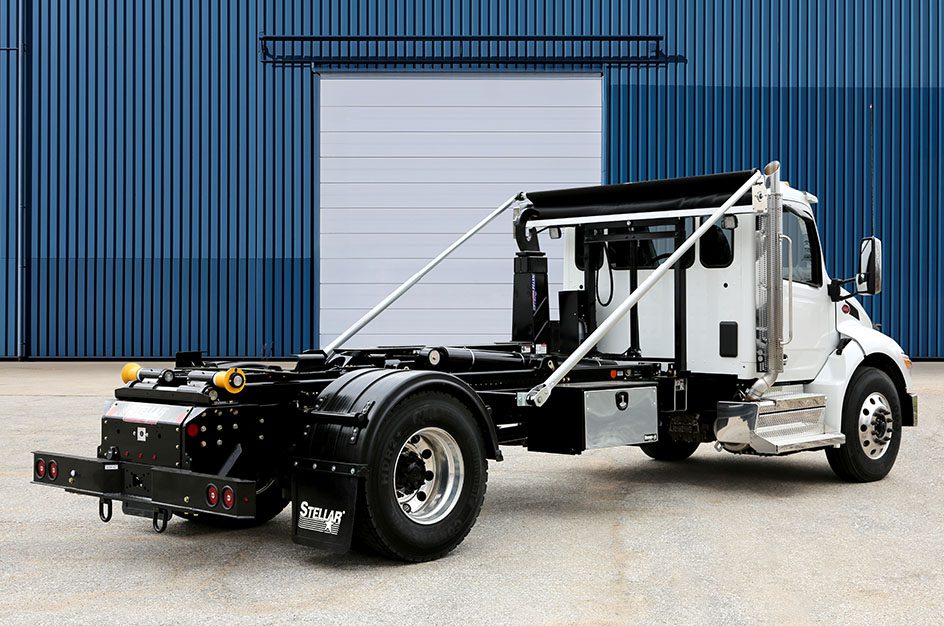

NXT24 Hooklift
Highly versatile for handling a wide range of jobs, the NXT24 features a best-in-class lost load height and 24,000-lb capacity. It’s designed for 10′ to 18′ bodies for 108″ to 156″ CA chassis. For maximum compatibility and flexibility, the bolt-on body lock system provides universal adjustment for either inside or outside locks.

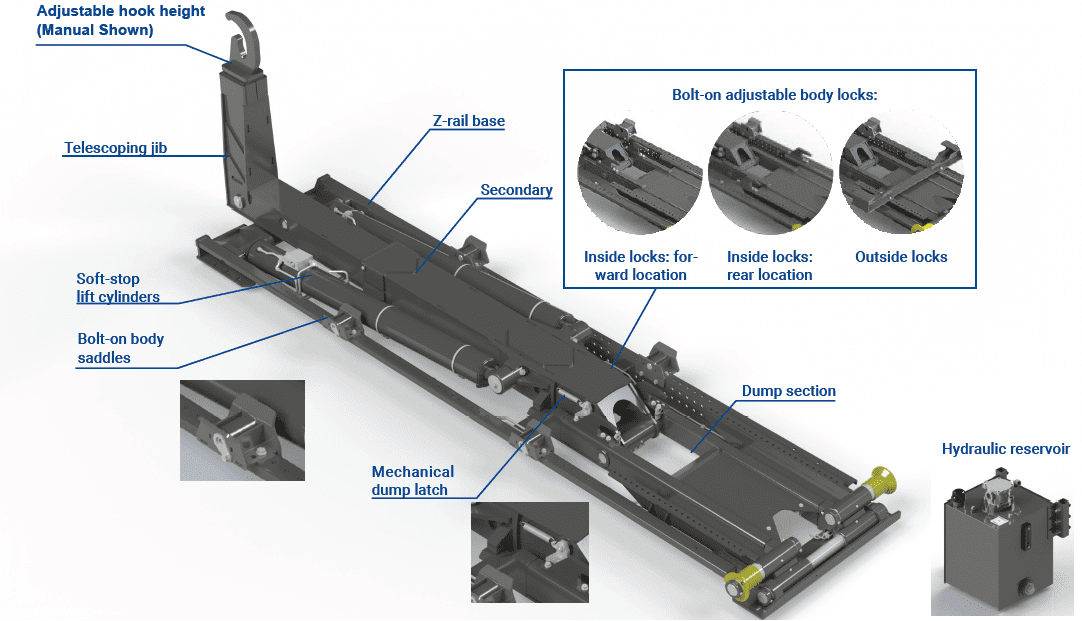

PrintKey Features
High strength without added weight:
- Z-rail design: The base is pre-drilled to allow for efficient installation on the chassis and to allow body saddles to be installed where needed.
Do more with one truck:
- Dump section: Integrated body lock mounting holes on the dump section eliminate the need to cut off and weld on locks. On the short and medium versions, the dump section articulates back for best-in-class below-chassis frame reach for 36″ containers.
- Telescopic jib: Multi-plate design provides a lightweight yet sound structure for handling a wide range of body lengths.
- Universal latching system: The industry-leading bolt-on adjustable body locks provide specific adjustment of either inside or outside locks.
- Adjustable hook height: Set the hook height to match the lift bar height of a fleet of containers with either manual adjustable or hydraulic adjustable hook inserts. The hydraulic adjustable version features a patent-pending, industry-leading internal hydraulic system to mitigate interference with the front of combination containers.
Best-in-class load height:
- Compact secondary design: A lost load height of 8″ (S and M version) or 9″ (L version) allows for a very compact machine that maximizes tunnel clearance for containers. Accommodates down to 5″ subframe heights.
- Wear pad design: Integrated replaceable wear pads for easier serviceability.
Timesaving convenience:
- Lift cylinders: The integrated soft-stop feature brings the body to rest gently on the body saddles.
- In-cab controls: Cable, air, electronic joystick, or radio remote controls allow for precise metering of the manual hydraulic drive.
- Hydraulic reservoir: The universal mounting bracket lets you place the 25-gallon (94.6 L) reservoir where you want it on the side of the chassis.
SPECIFICATIONS
| NXT24S | NXT24M | NXT24L | |
|---|---|---|---|
| Hook Height: | 35.63" (905 mm) / 54" (1,372 mm) | 35.63" (905 mm) / 54" (1,372 mm) 54" (1,372 mm) / 61.75" (1,568 mm) |
54" (1,372 mm) / 61.75" (1,568 mm) |
| Lift Capacity: | 35.63" HH: 24,000 lbs (10,886 kg) 54": HH: 24,000 lbs (13,608 kg) |
35.63" HH: 24,000 lbs (10,886 kg) 54": HH: 24,000 lbs (10,886 kg) 61.75": HH: 24,000 lbs (10,886 kg) |
54": HH: 24,000 lbs (10,886 kg) 61.75": HH: 24,000 lbs (10,886 kg) |
| Dump Capacity: | 24,000 lbs (10,886 kg) | 24,000 lbs (10,886 kg) | 24,000 lbs (10,886 kg) |
| Cycle Times: | Tilt/Dump Extend – 17 Seconds Tilt/Dump Retract – 19 Seconds Jib Extend – 4 Seconds Jib Retract – 5 Seconds Times based on 24 GPM of oil flow. |
Tilt/Dump Extend – 24 Seconds Tilt/Dump Retract – 26 Seconds Jib Extend – 4 Seconds Jib Retract – 5 Seconds Times based on 24 GPM of oil flow. |
Tilt/Dump Extend – 22 Seconds Tilt/Dump Retract – 24 Seconds Jib Extend – 5 Seconds Jib Retract – 6 Seconds Times based on 24 GPM of oil flow. |
| Shipping Weight: | Manual Adjustable Hook Height 36"/54" 2,848 lbs (1,292 kg) Hydraulic Adjustable Hook Height 36"/54" 3,048 lbs (1,383 kg) Without reservoir and body locks. |
Manual Adjustable Hook Height 36"/54" 3,305 lbs (1,499 kg) 54"/62" 3,382 lbs (1,534 kg) Hydraulic Adjustable Hook Height 36"/54" 3,475 lbs (1,576 kg) 54"/62" 3,575 lbs (1,622 kg) Without reservoir and body locks. |
Manual Adjustable Hook Height 54"/62" 5,590 lbs (2,535 kg) Hydraulic Adjustable Hook Height 54"/62" 5,695 lbs (2,583 kg) Without reservoir and body locks. |
| Body Lengths: | 10' – 14' (3,048 – 4,267 mm) | 12' – 16' (3,658 – 4,877 mm) | 14' – 18' (4,268 – 5,487 mm) |
| Min. Truck GVWR: | 22,000 lbs (9,979 kg) | 26,000 lbs (11,793 kg) | 26,000 lbs (11,793 kg) |
| Maximum Hydraulic Flow: | 24 GPM (90.8 LPM) | 24 GPM (90.8 LPM) | 24 GPM (90.8 LPM) |
| Operating Pressure: | 4,500 psi (310 bar) | 4,500 psi (310 bar) | 4,500 psi (310 bar) |
| Valve Bank: | Monoblock main valve with electric solenoid, main pressure relief valve and power beyond port. |
Monoblock main valve with electric solenoid, main pressure relief valve and power beyond port. |
Monoblock main valve with electric solenoid, main pressure relief valve and power beyond port. |
| Load Holding Valves: | All cylinders are equipped with counterbalance valves to prevent cylinder collapse in the event of a hose failure. | All cylinders are equipped with counterbalance valves to prevent cylinder collapse in the event of a hose failure. | All cylinders are equipped with counterbalance valves to prevent cylinder collapse in the event of a hose failure. |
| Hydraulic Pump Kits: | Kit includes a PTO control module that disengages the PTO if a set RPM is exceeded. | Kit includes a PTO control module that disengages the PTO if a set RPM is exceeded. | Kit includes a PTO control module that disengages the PTO if a set RPM is exceeded. |
| Components: | Main components are manufactured with high strength steel. Bushings at all pivot points. All pins are zinc-plated carbon steel as standard with an option to upgrade to type 17-4 stainless pins. |
Main components are manufactured with high strength steel. Bushings at all pivot points. All pins are zinc-plated carbon steel as standard with an option to upgrade to type 17-4 stainless pins. |
Main components are manufactured with high strength steel. Bushings at all pivot points. All pins are zinc-plated carbon steel as standard with an option to upgrade to type 17-4 stainless pins. |
| Finish: | All weldments are powder-coated with a primer and top coat enamel finish prior to assembly. | All weldments are powder-coated with a primer and top coat enamel finish prior to assembly. | All weldments are powder-coated with a primer and top coat enamel finish prior to assembly. |
| Warranty: | Stellar-manufactured structural parts: 3 years Paint adhesion on Stellar-manufactured parts: 3 years Purchased parts and labor: 1 year Labor on Stellar workmanship: 1 year |
Stellar-manufactured structural parts: 3 years Paint adhesion on Stellar-manufactured parts: 3 years Purchased parts and labor: 1 year Labor on Stellar workmanship: 1 year |
Stellar-manufactured structural parts: 3 years Paint adhesion on Stellar-manufactured parts: 3 years Purchased parts and labor: 1 year Labor on Stellar workmanship: 1 year |

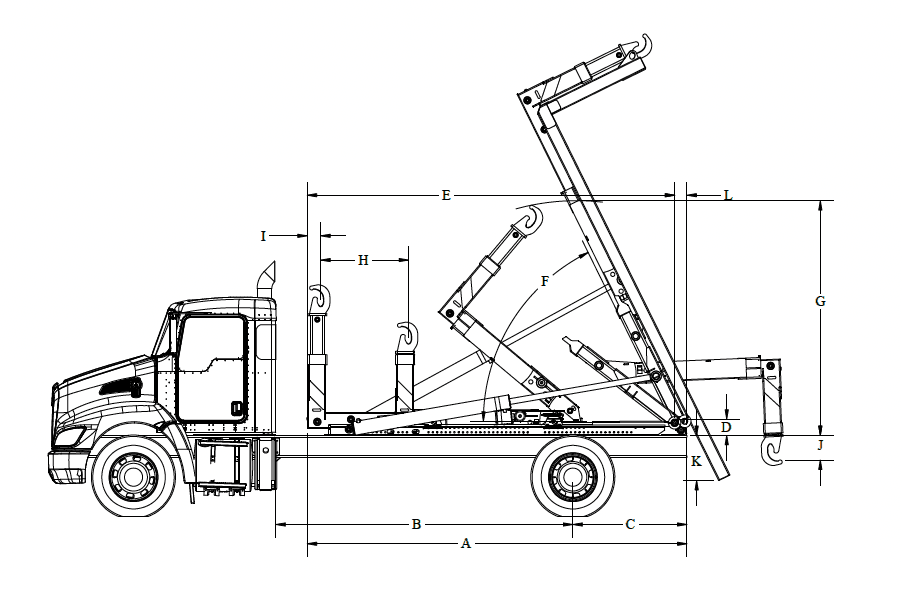

Dimensions
| Description | NXT24S – 36" OR 54" | NXT24M – 36" OR 54" OR 62" | NXT24L – 54" OR 62" |
|---|---|---|---|
| A. Overall Length: | 150.31" (3,818 mm) | 181.53" (4,611 mm) | 208.32" (5,291 mm) |
| B. Cab-to-Axle Range: | 108" to 134" (2,743 to 3,404 mm) | 130" to 156" (3,302 to 3,962 mm) | 154" to 180" (3,911 to 4,571 mm) |
| C. After-Frame Range: | 45.50" (1,156 mm) | 54.50" (1,384 mm) | 58" (1,473 mm) |
| D. Loader Height: | 8.00" (203 mm) | 8.00" (203 mm) | 9.00" (229 mm) |
| E. Front of Jib to ℄ of Roller: | 144.44" (3,669 mm) | 175.63" (4,461 mm) | 227" (5,766 mm) |
| F. Dump Angle: | 63° (1.10 rad) | 63° (1.10 rad) | 52° (.91 rad) |
| G. Maximum Tilt Height: | 36" HH: 92.05" (2,338 mm)
54" HH: 103.29" (2,624 mm) |
36" HH: 102.08" (2,593 mm) 54" HH: 112.25" (2,851 mm) 62" HH: 117.19" (2,977 mm) |
54" HH: 118.88" (3,019 mm) 62" HH: 123.50" (3,137 mm) |
| H. Jib Travel: | 30" (762 mm) | 42" (1,067 mm) | 42" (1,067 mm) |
| I. Front of Jib to ℄ of Hook: | 6.44" (164 mm) | 6.44" (164 mm) | 5.19" (132 mm) |
| J. Hook Below Frame: | 36" HH: 11.97" (304 mm) 54" HH: 29.79" (757 mm) |
36" HH: 11.83" (300 mm) 54" HH: 29.63" (753 mm) 62" HH: 37.44" (951 mm) |
54" HH: 3.63." (92 mm) 62" HH: 4.50" (114 mm) |
| K. Lowest Point in Dump*: | 28.00" (711 mm) | 21.83" (555 mm) | 20" (508 mm) |
| L. ℄ to Back of Roller: | 5.88" (149 mm) | 5.88" (149 mm) | 9.25" (235 mm) |
| M. Minimum Chassis RBM:** | 1,300,000 lb-ft (1,762,333 Nm) | 1,300,000 lb-ft (1,762,333 Nm) | 1,300,000 lb-ft (1,762,333 Nm) |
| *Dimension is based on maximum advertised body lengths. | |||
| **RBM = Resistance to Bending Moment |
