1302 Ag Tire Service Truck
The Stellar® 1302 Ag Tire Service Truck is a truck for multipurpose use. It is the ideal, multifunctional tire service truck with a 13′ body and four tool compartments. The industry-proven, all-aluminum body offers a greater payload, larger capacity and state-of-the-art components.
Additional Information
The 1302 body centers around an advanced use of design and materials. The 1302 substructure features an extruded aluminum plank floor, designed to be stronger, more durable and longer lasting than a flat sheet of deck plate commonly found on most tire service bodies.
The driver-side front vertical cabinet has optional 3/8″ x 50′ and 1/2″ x 50′ hose reels along with an air filter and regulator mounted to the top of the compartment for ease of accessibility. Options available include a 2-drawer cabinet with a 15-pin socket rack and compartment lights.
Service Body Features:
- 13′ service body with all-aluminum construction
- 64″ high x 94″ wide body is designed to hold three rows of eight standard truck tires
- Tool compartments with over 72 cubic feet of user-friendly storage
- Slide-top doors on tool compartments
- 26″ wide front vertical compartments with jack boxes
- Recessed, skirt-mounted LED floodlights
- Seamless 22″ high sign panels
- Extruded aluminum plank floor

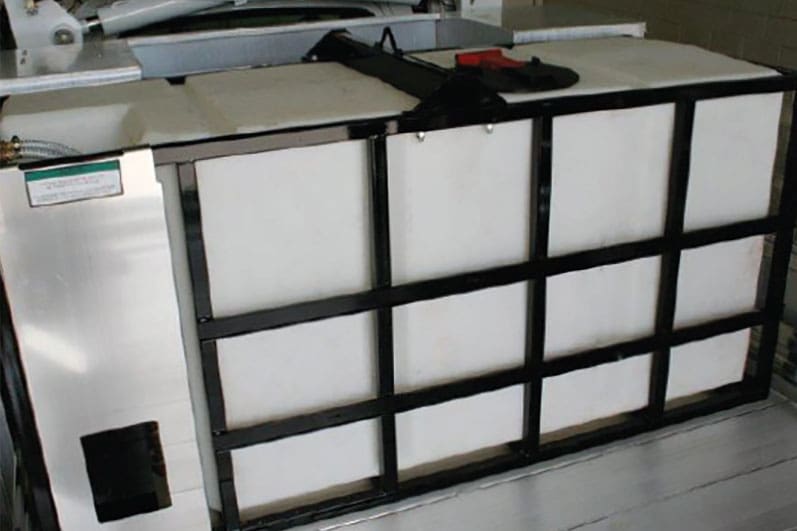

- Ballast pump system with 400-gallon reinforced polypropylene tank and air operated fluid mixer
The Stellar 1302 Ag Tire Truck can be equipped with either a model 3200 or 4500 tire service crane. These cranes are designed to handle the largest of farm tires and smaller-sized OTR tires and are operated by a standard fully proportional radio remote control. Optional accessories include: 3/8″ x 50′ and 1/2″ x 50′ hose reels, plastic storage bins and socket racks.
The 46P hydraulic-drive air compressor is mounted on the crane base with a hydraulic cooler. This compressor has a 46 cfm at 175 psi output. The location allows for cool, clean, fresh air intake and easy maintenance and serviceability.
Crane Features:
- Standard fully proportional radio remote control and manual controls with the ability to do multiple functions at once; controls mounted to valve bank
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension
- Load-holding counterbalance valves
SPECIFICATIONS
| 3200 Crane | |
| Crane Rating: | 32,000 ft-lbs (4.42 t-m) |
| Lifting Capacities: | 5,000 lbs @ 9' (2,270 kg @ 2.74 m) |
| 2,200 lbs @ 17' (1,000 kg @ 5.18 m) | |
| Boom Extension: | Hydraulic 32" (81.3 cm) |
| Maximum Horizontal Reach: | 14' (4.27 m) from CL of crane |
| 17' (5.18 m) from CL of truck | |
| Maximum Vertical Lift: | 18' (5.49 m) from truck frame |
| Rotation: | 290 degree power (hourglass worm gear) |
| Power Supply Required: | PTO & pump (4 gpm @ 2,800 psi) (15.14 lpm @ 193 bars) |
| Controls: | Proportional radio control; controls mounted to valve bank |
| Stowed Height: | 60" (152.4 cm) |
| Mounting Space Req: | 24" (60.96 cm) |
| Shipping Weight: | 1,900 lbs (862 kg) |
| 4500 Crane | |
| Crane Rating: | 45,000 ft-lbs (6.22 t-m) |
| Lifting Capacities: | 7,500 lbs @ 9' (3,400 kg @ 2.74 m) |
| 3,200 lbs @ 17' (1,450 kg @ 5.18 m) | |
| Boom Extension: | Hydraulic 32" (81.2 cm) |
| Maximum Horizontal Reach: | 14' (4.27 m) from CL of crane |
| 17' (5.18 m) from CL of truck | |
| Maximum Vertical Lift: | 20' (6.10 m) from truck frame |
| Rotation: | 290 degree power (worm gear) |
| Power Supply Required: | PTO & pump (5.0 gpm @ 2,800 psi) (18.9 lpm @ 193 bars) |
| Controls: | Proportional radio control; controls mounted to valve bank |
| Stowed Height: | 71" (180.3 cm) |
| Mounting Space Req: | 26" (66.04 cm) |
| Shipping Weight: | 2,400 lbs (1,089 kg) |
| NOTE: All Stellar cranes meet ANSI B30.22 and OSHA 1910.180 specifications. |
