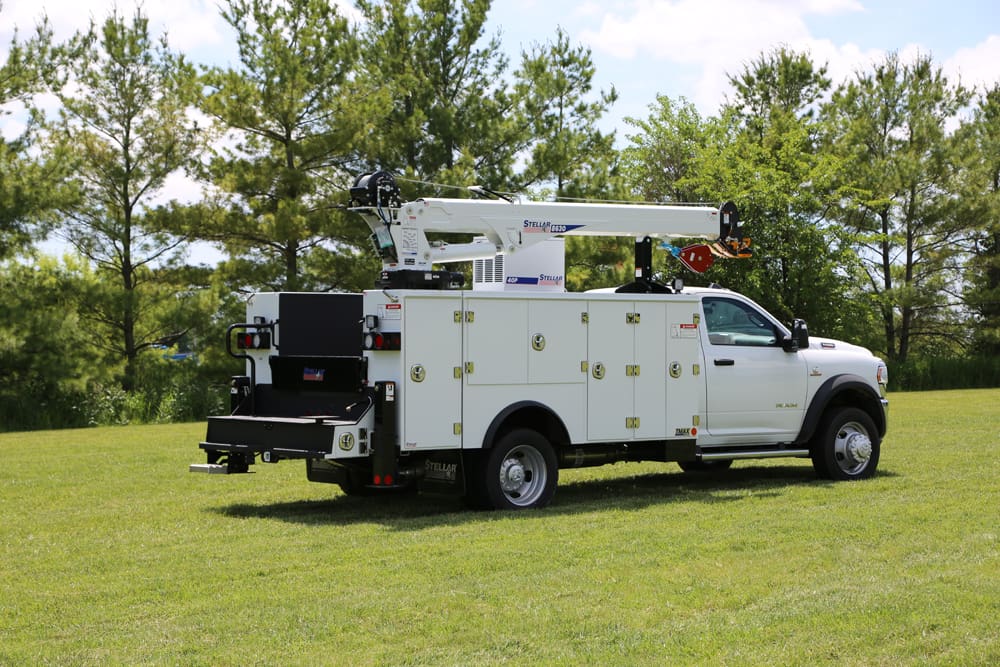

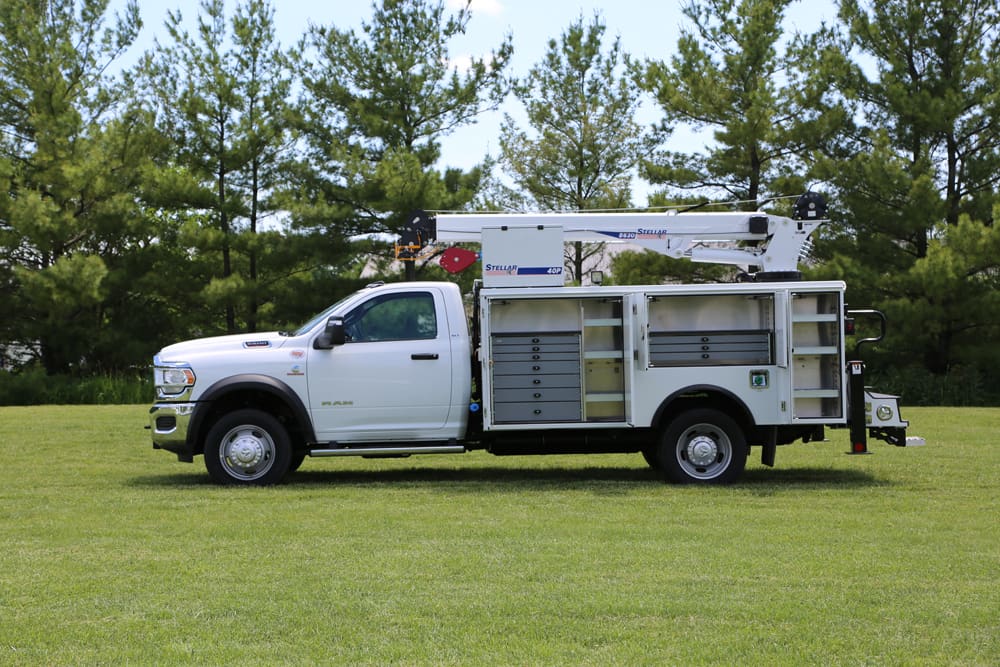

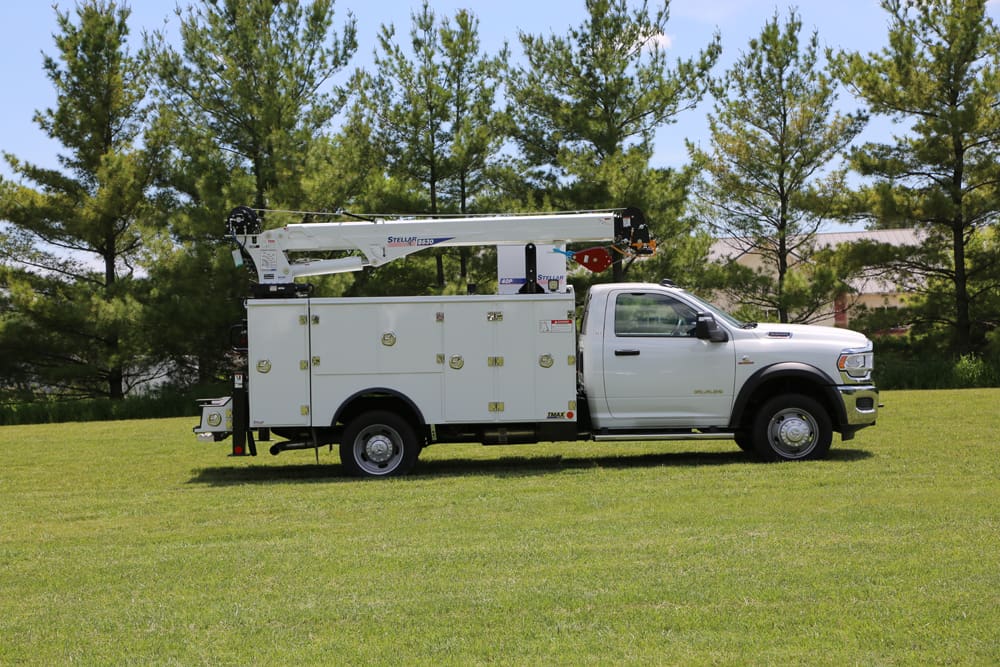

2024 RAM 5500 w/TMAX 1-11 Aluminum/8630/40P (WR15)

• 6.7L Cummins diesel engine
• 4×4 Aisin Automatic Transmission w/PTO provision
• Air conditioning
• Cruise control
• 40/20/40 split vinyl bench seat
• Upgraded radio with Bluetooth
• Power Group
• Backup Camera

Body Features

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 52″
• Flush front bulkhead
• 8″ Drop Well in CS1V for Oxy/Acet Bottles
• Torsion box understructure with isolated crane compartment
• Exterior DOT light package
• Master-Lock system
• 22″D X 52″H side packs
• 133″ long, 21″ work bench bumper with thru compartment
• (6) recessed cargo tie-downs
• (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V / CS1V,
• Overlapped doors on horizontal compartments
• 12″ fold down aluminum tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Weld on receiver hitch
• Prime painted
• Undercoated
• Additional Product Information

Compartment Storage

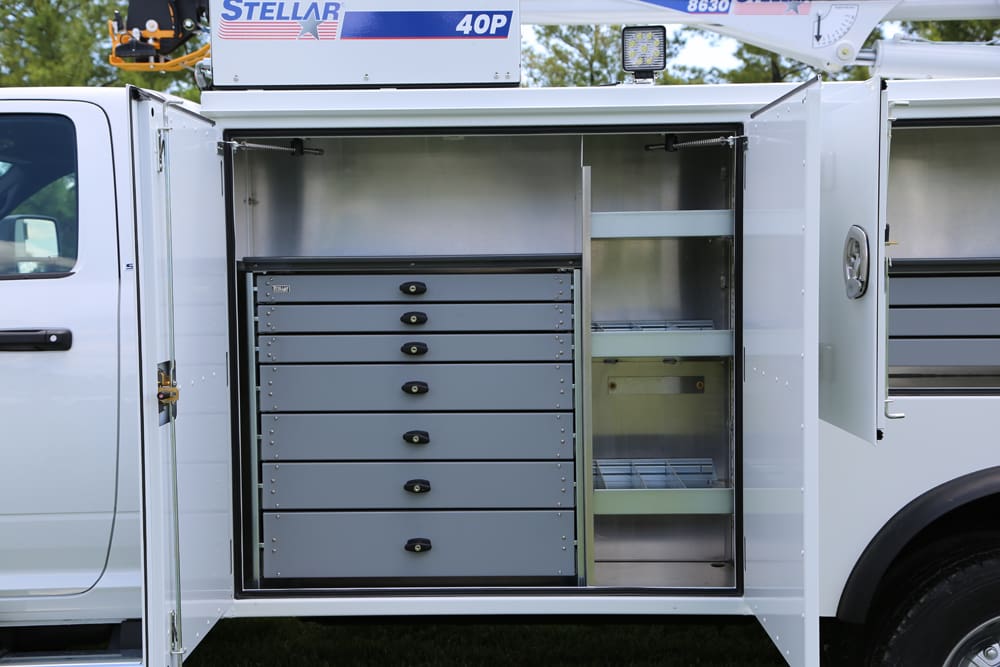

• Streetside 1st Vertical in front of the divider:
  • Heavy Duty Aluminum Drawer set, 35.5″H x 34″W x 18″D, 3-3″, 3-5″, 1-7″ drawers (13716AX) w/LightBar
• Streetside 1st Vertical to the rear of the divider:
  • Shelf with (3) dividers 17.63″W x 19.00″D (72773X)
• Streetside Horizontal
  • Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ drawers (23378AX) w/LightBar
• Streetside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

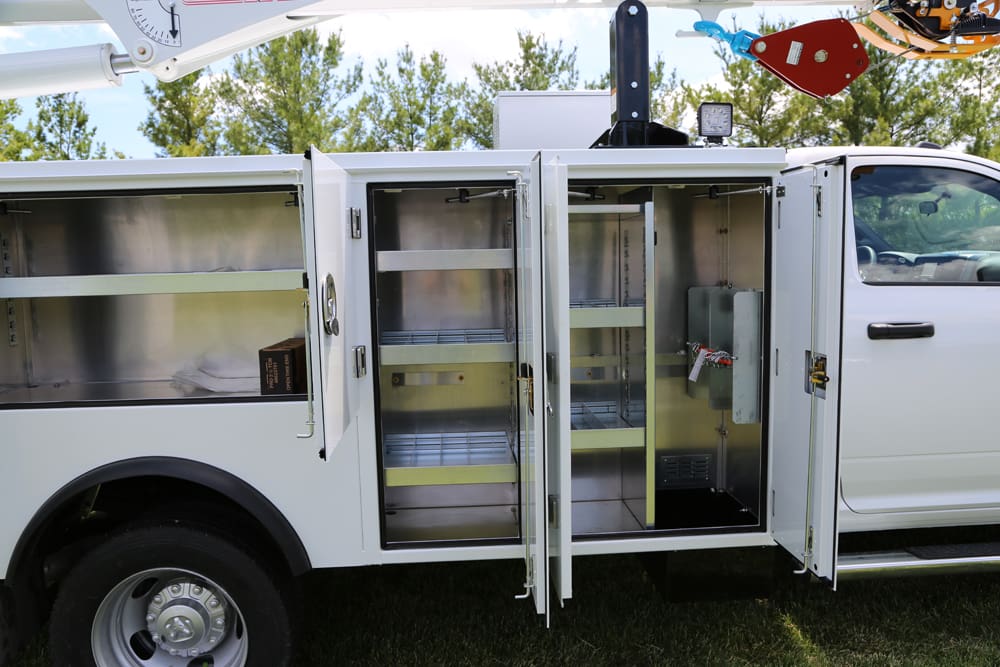

• Curbside 1st Vertical
  • Divider kit with shelves (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
• Curbside 2nd Vertical
  • Shelf with (3) dividers 21″W x 19.00″D (72865X)
• Curbside Horizontal
  • Shelf with (3) dividers 52.44″W x 19.00″D (72894X)
• Curbside Rear
  • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body

Body Mounted Options

• Rock guard kit – Adhesive black
• Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
• One pair Stellar mud flaps with mounting bolts
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Trailer plug – 7-pin (flat)
• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – hydraulic out/hydraulic down, painted black

Light Options

• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit

 Safety Options

• Chassis Mounted Back Up Alarm – 107 Db
• RAM chassis provided backup camera for installation in workbench bumpers
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Chassis Options

• Super Spring for RAM 5500-Double Leaf

Electrical Options

• Speed Control Kit – RAM Chassis 2013 or newer – Includes start-stop functionality
• Truck Upfitter Switches Control Package

 PTO/Pump Options

• PTO for automatic transmission for RAM
• Hydraulic pump, tandem section for crane and compressor
  • Includes:90226X PTO 272RDKUP-B3RK, 58459 PUMP HYD P315B196PEAB1565KOAB10-1, 36273X PUMP INST KIT MECHANICS COMM

Hydraulic Options

• Hydraulic reservoir, 20 gallon, bulkhead mounted, painted black

Paint & Finish

• Paint 11’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• Crane Rating : 53,100 ft-lb
• Max Lifting Capacity: 8,600 lbs @ 6′ 2″
• Maximum Horizontal Reach: 29′ 8″ from CL of crane
• Maximum Vertical Lift: 31′ 6″ from crane base
• Boom Elevation: -10° to +80°
• Boom Tip Light – Dual LED Trillian Lights
• CDTpro™ Control System w/Range Finder
• Additional Product Information

• Output Capacity: 40 cfm @ 100 psi
• Max. pressure: 150 psi
• Cylinders: 2-cylinder, single-stage
• Electrical control: 12 VDC @ 20 amps
• 30 gallon air tank, ASME approved, with fittings, hose kit, mounting brackets for RAM
• FLR system installed – 1 outlet for air hose (filter, lubricator, regulator)
• Additional Product Information
