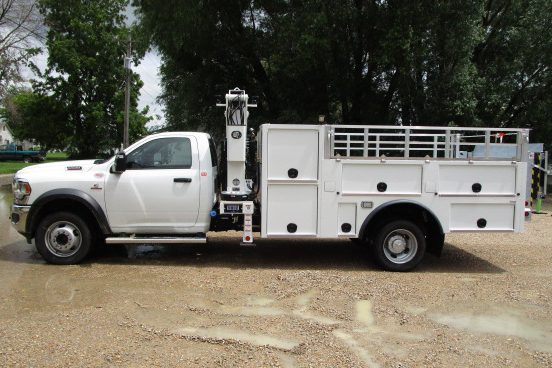

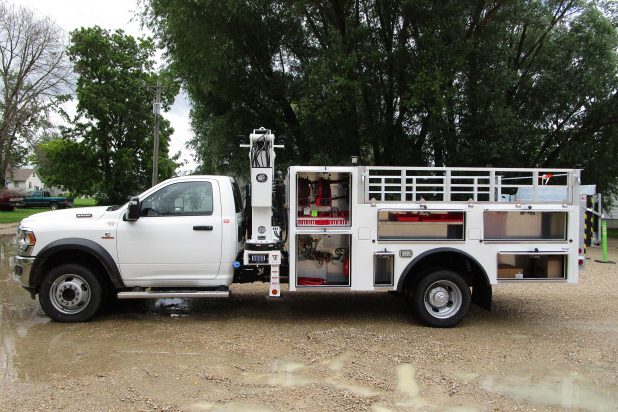

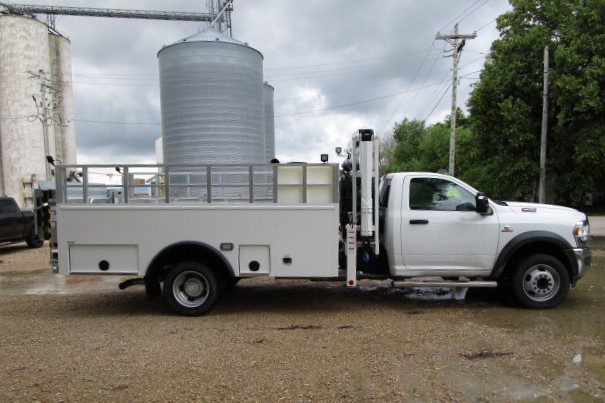

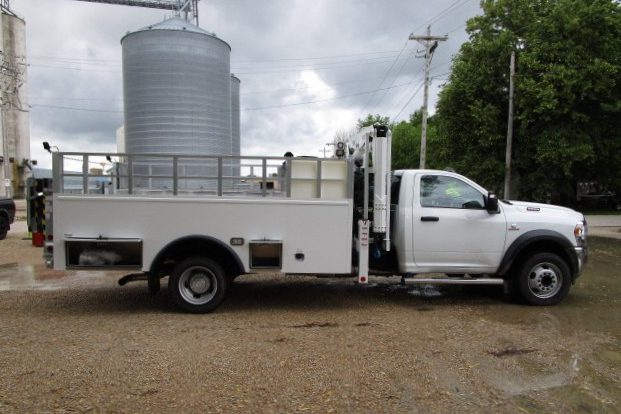

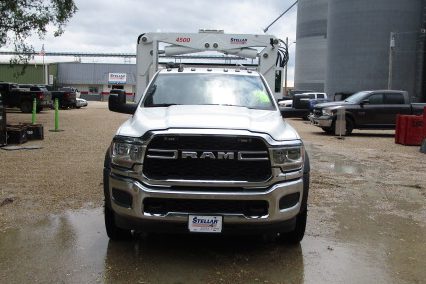

2024 Ram 5500 4x4 w/1184-13 AG/4500/46P (WR106)

• 4×4
• 108″ CA/192 WB
• 19500# GVW
• 6.7L Cummins diesel engine
• AISIN automatic trans
• PTO provision
• Air conditioning
• Cruise control
• 40/20/40 split vinyl bench seat
• Chrome tubular side steps
• Blue Tooth
• Power Group
• Backup Camera

Body

• 1184-13 AG V3 – Aluminum body
• Rack sides 13’L, 40″H
• Extruded plank floor
• (2) 25″L underbody compartments (LF)
• 36″ top mount (LF)
• (2) 44″L underbody compartments (RR/LR)
• 117″W x 21″H x 13″D LS deck mount toolbox
• 22″H sign panels
• Fold down rail (LS)
• Load bed wall liner
• Stop, turn, tail light kit, aluminum skirts with skirt-mounted floodlights RS and LS
• 400 gallon calcium tank
• Body mounting kit for 1184 AG/1184-13 AG

Equipment / Options

• Mini-OTR bead hook – 12000# capacity

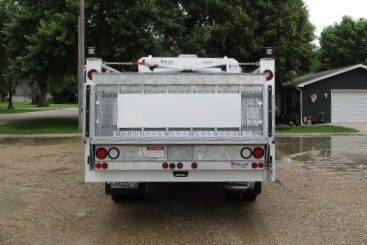

• 2,000# Hydraulic liftgate
• 86″ wide, dual lift cylinders
• Recessed lights
• Galvanized frame and platform
• Folding side rail and tire stop for 86″ wide liftgate
• Sign Panel for Model 87 Tommy Gate

Module / Skid Options

• Pro Flow Poly calcium pump
• Rinse Tank w/ 12V Pump – 20 Gallon Cap.

Air Options

• 1/2” Reel Craft dual post reel w/50’ Artic grade hose
• For channel mounting in compartment
• 1/2″ FLR system (filter/lubricator/regulator) with additional regulator for lubricated line
• 20′ OTR inflation/deflation hose kit w/quick release coupler
• Muffler
• Small and large bore core ejectors
• 1/4 turn ball valve and rotary air gauge for checking tire pressure

Tool Package

• Tire bead wedge – six pack

Compartment Options

• 3 1/2″ wide plastic tray inserts
• 5″ wide plastic tray inserts
• 11″ wide plastic tray inserts
• Socket Tray – Flat Design – 9 pin – 12″w

Jackbox Option

• Underbody toolbox panel

Body Mounted Options

• Dri deck mat kit for compartment floors
• Aluminum sill guard kit – 1184-13 AG body
• Aluminum folding step
• One pair Stellar mud flaps with mounting bolts
• LED flood light with wide beam
• Compartment LED Light Kit – 1184 Body
• Whelen Century 16″ LED amber mini lightbar with clear lens
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV light for leak detection, and 180 degrees of rotation. Includes charger
• Strobe light kit – low profile LED amber lights (2) mounted in chassis grill
• Two tire carrier mast mounted LED floodlights
• Rear ground perimeter light for mini-OTR and fleet bodies

Safety Options

• Back up alarm – 107 Db
• Backup camera
• ICC safety kit
• Rechargeable 2.5# fire extinguisher and reflector kit

Chassis Options

• Super Spring for RAM 5500-Single Leaf

PTO/Pump Options

• PTO for automatic transmission for RAM
• Hydraulic pump, tandem section for crane and compressor

Includes:

• 90226X PTO 272RDKUP-B3RK
• 34476 PUMP HYD DE2R41SHBB12517N113
• 37673X PUMP INST KIT T-SERVICE DAN FOSS INSTALL

Electrical Options

• Speed control kit
• Electrical Control Kit – Includes harness
• 2017 Ford or RAM with Upfitter Switches ONLY

Paint & Finish

• Paint 1184-13/1184-14 body Stellar White, Axalta Paint code 350407EX. Single Stage
• Non-Metallic

• 7′ of reach from center line of chassis
• 45,000 ft lb capacity
• 7500# @ 9′, 3200# @ 17′
• Proportional radio remote control
• Counter balance check valves
• A-frame style stabilizers
• Painted white

• 15 gallon hydraulic reservoir
• Crane mounted
• 46 CFM@175 PSI with base, motor, cooler, filters, fittings
• 20 gallon air tank
